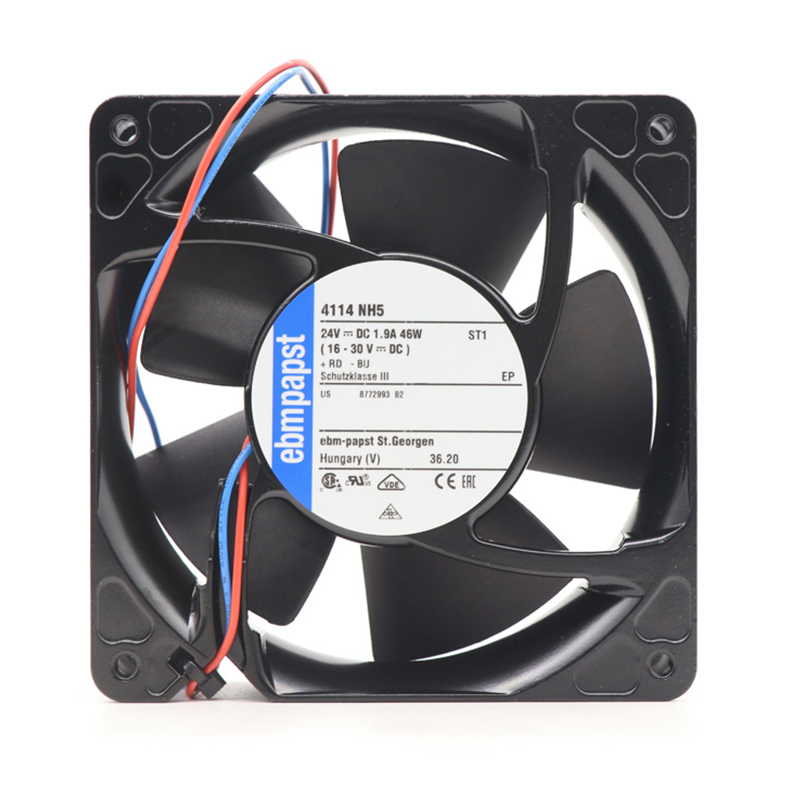

4114NH5 | ebm-papst 24V 46W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 4114NH5 | ebm-papst 24V 46W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 4114NH5 is a high-performance dc axial fan engineered for control cabinets and enclosures. It provides reliable airflow and efficient thermal management for demanding equipment.

Datasheet:: 4114NH5 | ebm-papst 24V 46W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	390
Max.Pressure(Pa)	595
Input Power(W)	46
Speed(rpm)	7500
Noise(db)	70

Product Features

High Static Cooling

Designed as a compact DC axial cooling fan, the ebmpapst 4114NH5 supports thermal management in control cabinets and enclosed electronics. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, airflow up to 390 m³/h, and maximum pressure of 595 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support and an aluminum housing for durable motor support. Listed noise is 70 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

OEM buyers and automation engineers can consider the 4114NH5 for space-conscious cooling. Confirm airflow demand, wiring, mounting and temperature limits before design-in. Proper installation supports stable thermal control and long fan life.

Application Industry

Cabinet Ventilation

4114NH5 Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Frequently Asked Questions

What is the rated voltage of the ebmpapst 4114NH5?

The product data lists a rated voltage of 24 V. Match the supply before wiring.

What are the dimensions of the 4114NH5?

The listed size is 119*119*38 mm. Confirm mounting holes and available clearance before replacement.
