交流风扇

32 个结果

按类型

按行业

Rated Voltage(V)

Size(mm)

Max.Air Flow(m³/h)

Max.Pressure(Pa)

Input Power(W)

Speed(rpm)

Noise(db)

已选条件

显示

1-20

1-20 21-32

共 32 个

推荐最受欢迎

下载表格

制造商料号	Rated Voltage(V)	Size(mm)	Max.Air Flow(m³/h)	Max.Pressure(Pa)	Input Power(W)	Speed(rpm)	Noise(db)

SF11592A-1092HBL.GN \| SUNON 115V 13W 92x92x25mm 2350rpm AC Axial Fan for HVAC & Ventilation Within commercial refrigeration and refrigerator cooling, SUNON SF11592A-1092HBL.GN serves as a 92 × 92 × 25 mm AC axial fan operating at 115 VAC. Its 2350 rpm rating defines a lower-speed operating point. For project documentation, start with the supplied application data. Reconcile the model code with the required electrical interface.	115	92x92x25mm	-	32.4	13	2350	-
SF11580A-1083HBL.GN \| SUNON 115V 14W 80x80x38mm 2400rpm AC Axial Fan for HVAC & Ventilation The 80 × 80 × 38 mm SF11580A-1083HBL.GN brings 115 VAC AC axial fan cooling to commercial refrigeration and refrigerator cooling. Its 2400 rpm rating defines a lower-speed operating point. Use the documented technical profile when planning project documentation. Reconcile the model code with the required electrical interface.	115	80x80x38mm	-	32.4	14	2400	-
SF23092A-2092HBL.GN \| SUNON 240V 14W Square-91.5Lx91.5Hmm AC Axial Fan for HVAC & Ventilation The SF23092A-2092HBL.GN is SUNON's 240 VAC, Square - 91.5mm L × 91.5mm H mm AC axial fan option for commercial refrigeration and refrigerator cooling. Its 2850 rpm rating defines a lower-speed operating point. Review its model record during project documentation. Reconcile the model code with the required electrical interface.	240	Square - 91.5mm L x 91.5mm H	62.4	47.3	14	2850	40

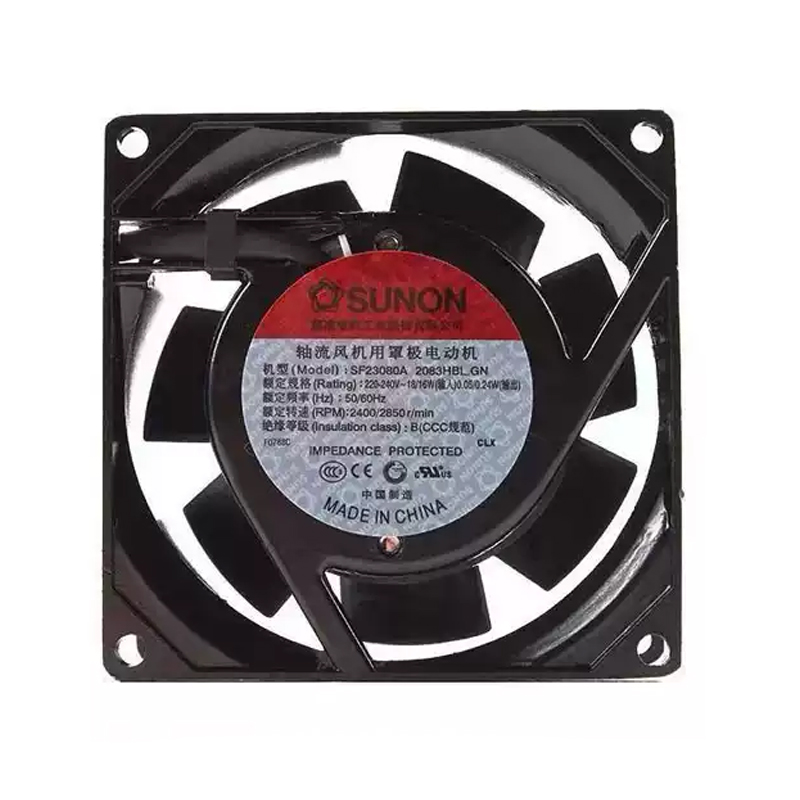

SF23080A-2083HBL.GN \| SUNON 240V 13.5W 80x80x38mm 52.67m3/h AC Axial Fan for HVAC & Ventilation SF23080A-2083HBL.GN addresses commercial refrigeration and refrigerator cooling through a 240 VAC AC axial fan platform measuring 80 × 80 × 38 mm. Its 2850 rpm rating defines a lower-speed operating point. Treat the product configuration as a primary input to project documentation. Reconcile the model code with the required electrical interface.	240	80x80x38	52.67	47.33	13.5	2850	36.5

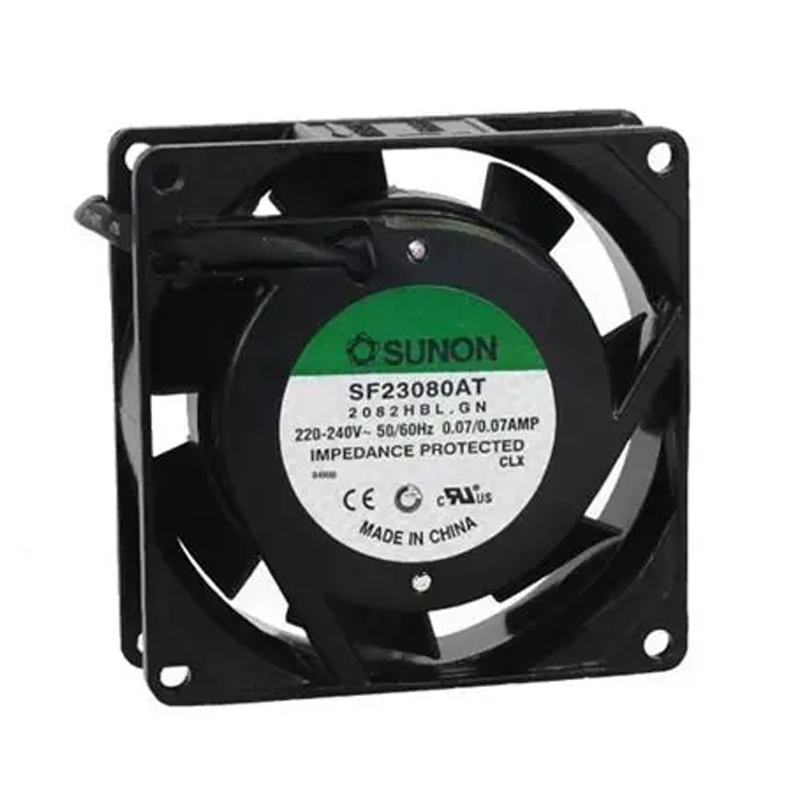

SF23080AT-2082HBL.GN \| SUNON 240V 13.5W 80x80x25.50mm AC Axial Fan for Refrigeration Equipment SUNON SF23080AT-2082HBL.GN combines a 80 × 80 × 25.50 mm AC axial fan platform with a 240 VAC rating for commercial refrigeration and refrigerator cooling. Its 2900 rpm rating defines a lower-speed operating point. Base project documentation on the stated system interface. Reconcile the model code with the required electrical interface.	240	80x80x25.50	37	47.3	13.5	2900	34.5
SF11592A-1092HBL \| SUNON 115V 13W 92x92x25mm 2350rpm AC Axial Fan for HVAC & Ventilation Built around commercial refrigeration and refrigerator cooling, SUNON SF11592A-1092HBL is a 115 VAC AC axial fan in a 92 × 92 × 25 mm frame. Its 2350 rpm rating defines a lower-speed operating point. During project documentation, compare the model's cooling specification. Reconcile the model code with the required electrical interface.	115	92x92x25mm	-	32.4	13	2350	-

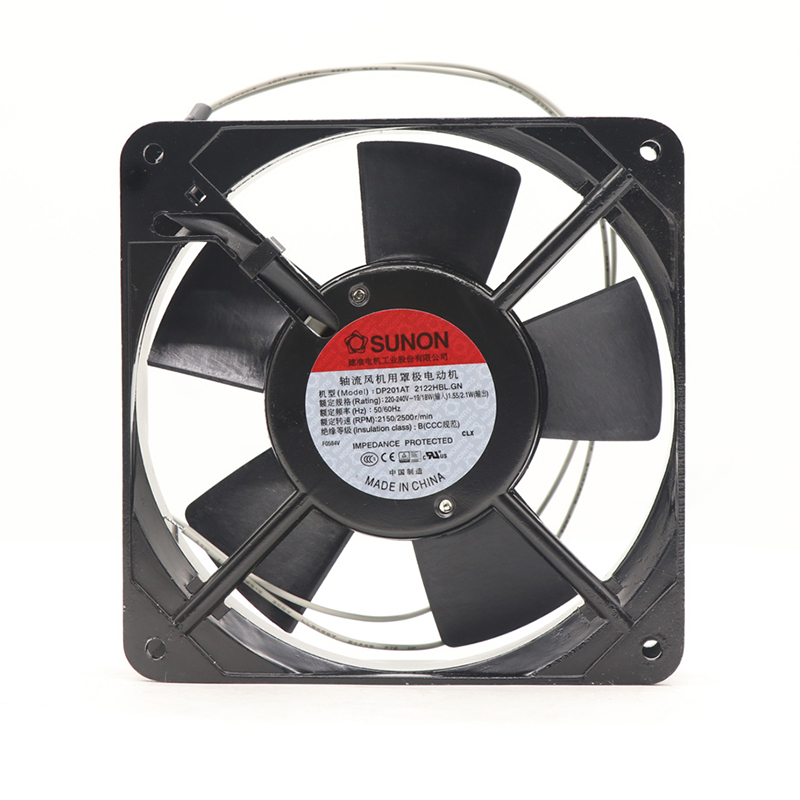

DP201AT-2122HBL.GN \| SUNON 220V 19W 119x119x25.50mm 2500rpm AC Axial Fan for HVAC & Ventilation Within commercial refrigeration and refrigerator cooling, SUNON DP201AT-2122HBL.GN serves as a 119 × 119 × 25.50 mm AC axial fan operating at 220 VAC. Its 2500 rpm rating defines a lower-speed operating point. The recorded duty-point values should guide project documentation. Reconcile the model code with the required electrical interface.	220	119x119x25.50	134.4	42.3	19	2500	48
DP200A-2123XSL.GN \| SUNON 220V 21W 200mm 366m3/h 3100rpm AC Axial Fan for HVAC & Ventilation The 220 VAC SUNON DP200A-2123XSL.GN is a AC axial fan sized 200 mm for commercial refrigeration and refrigerator cooling. 21 W input is the defining electrical load in the supplied data. For project documentation, start with the supplied installation footprint. Reconcile the model code with the required electrical interface.	220	200	-	-	21	3100	-

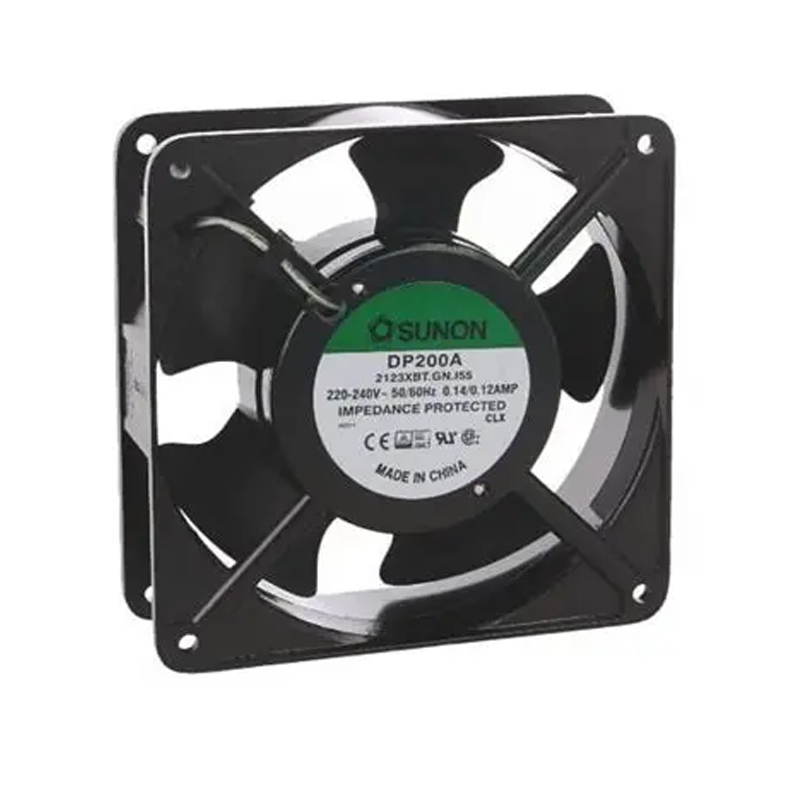

DP200A-2123XBT.GN \| SUNON 220V 21W 120x120x38mm 198.78m3/h AC Axial Fan for HVAC & Ventilation The DP200A-2123XBT.GN is SUNON's 220 VAC, 120 × 120 × 38 mm AC axial fan option for commercial refrigeration and refrigerator cooling. Up to 198.78 m³/h is its most prominent listed performance figure. Use the documented selection parameters when planning project documentation. Reconcile the model code with the required electrical interface.	220	120x120x38	198.78	97.14	21	3150	50
DP200A-2123XBL.GN \| SUNON 220V 21W 119x119x38.5mm 198.8m3/h AC Axial Fan for HVAC & Ventilation For commercial refrigeration and refrigerator cooling, DP200A-2123XBL.GN combines 220 VAC operation with a 119 × 119 × 38.5 mm AC axial fan design. Up to 198.8 m³/h is its most prominent listed performance figure. Review its rated dataset during project documentation. Reconcile the model code with the required electrical interface.	220	119x119x38.5	198.8	97.1	21	3150	50
KDE2406PHV2 \| SUNON 24V 1.3W 60x60x15mm 30.6m3/h 3800rpm AC Axial Fan for HVAC & Ventilation SUNON KDE2406PHV2 combines a 60 × 60 × 15 mm AC blower platform with a 24 VAC rating for commercial refrigeration and refrigerator cooling. Its 30.6 m³/h airflow rating suits the stated equipment-cooling role. During specification approval, compare the model's performance curve. Check the ordering suffix before assigning control functions.	24	606015	30.6	-	1.3	3800	31
SF23080AT 2082HBL.GN \| SUNON 220V 13.5W 80x80x25mm AC Axial Fan for Refrigeration Equipment Within commercial refrigeration and refrigerator cooling, SUNON SF23080AT 2082HBL.GN serves as a 80 × 80 × 25 mm AC axial fan operating at 220 VAC. Its 2900 rpm rating defines a lower-speed operating point. Review its frame geometry during service-life planning. Check the ordering suffix before assigning control functions.	220	808025	-	-	13.5	2900	-
DP201AT 2122HBL.GN \| SUNON 220/240V 19W 120x120x25mm 136m3/h AC Axial Fan for HVAC & Ventilation DP201AT 2122HBL.GN addresses commercial refrigeration and refrigerator cooling through a 220/240 VAC AC axial fan platform measuring 120 × 120 × 25 mm. Its 2500 rpm rating defines a lower-speed operating point. Treat the cooling output as a primary input to service-life planning. Check the ordering suffix before assigning control functions.	220/240	12012025	136	42.3	19	2500	48
SF23080A2083HBL.GN \| SUNON 220/240V 13.5W 80x80x38mm 2850rpm AC Axial Fan for HVAC & Ventilation Built around commercial refrigeration and refrigerator cooling, SUNON SF23080A2083HBL.GN is a 220/240 VAC AC axial fan in a 80 × 80 × 38 mm frame. Its 2850 rpm rating defines a lower-speed operating point. The recorded model record should guide procurement comparison. Use the latest specification for frequency and tolerance limits.	220/240	808038	52.7	47.3	13.5	2850	36.5

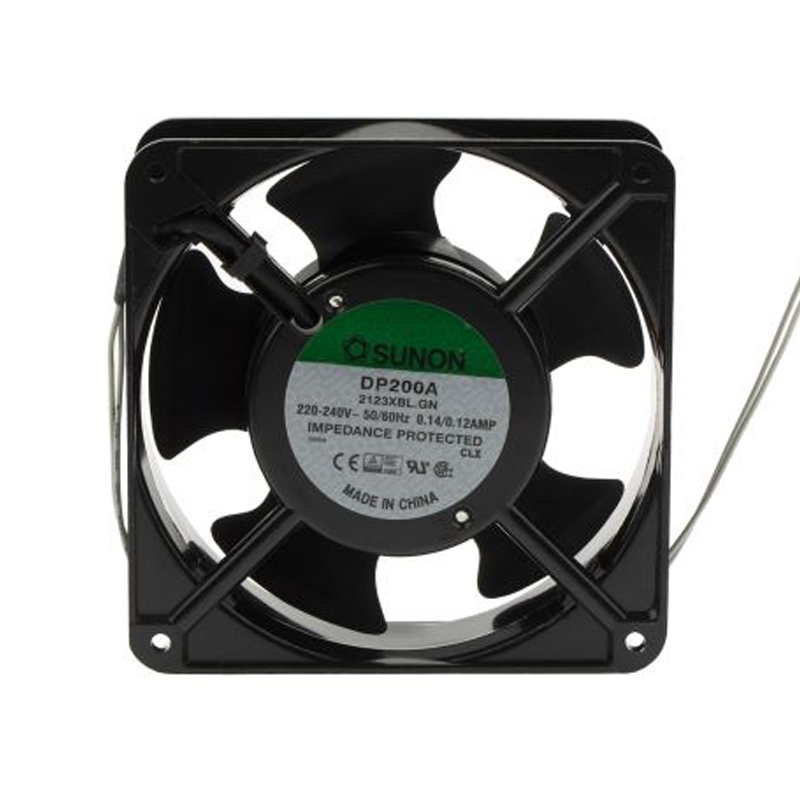

DP200A2123XBL.GN \| SUNON 220 ~ 240V 21W 120x120x38mm 3150rpm AC Axial Fan for HVAC & Ventilation Within commercial refrigeration and refrigerator cooling, SUNON DP200A2123XBL.GN serves as a 120 × 120 × 38 mm AC axial fan operating at 220 ~ 240 VAC. Up to 198.9 m³/h is its most prominent listed performance figure. Use the documented thermal-duty record when planning wiring review. Confirm environmental protection for the ordered version.	220 ~ 240	12012038	198.9	97.1	21	3150	50

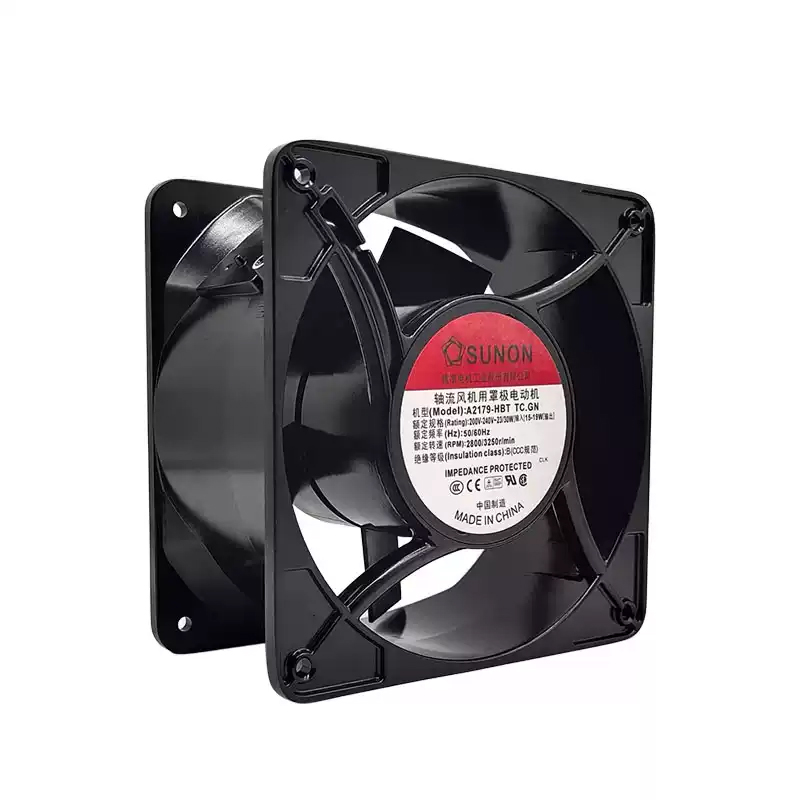

A2179-HBT TC.GN \| SUNON 230V 30W 176x176x89mm 569.5m3/h AC Axial Fan for HVAC & Ventilation SUNON A2179-HBT TC.GN is a 230 VAC AC axial fan in a 176 × 176 × 89 mm format for commercial refrigeration and refrigerator cooling. Up to 569.5 m³/h is its most prominent listed performance figure. Use the documented sound level when planning airflow-path design. Obtain the applicable curve before final duty-point approval.	230	17617689	569.5	-	30	3250	66

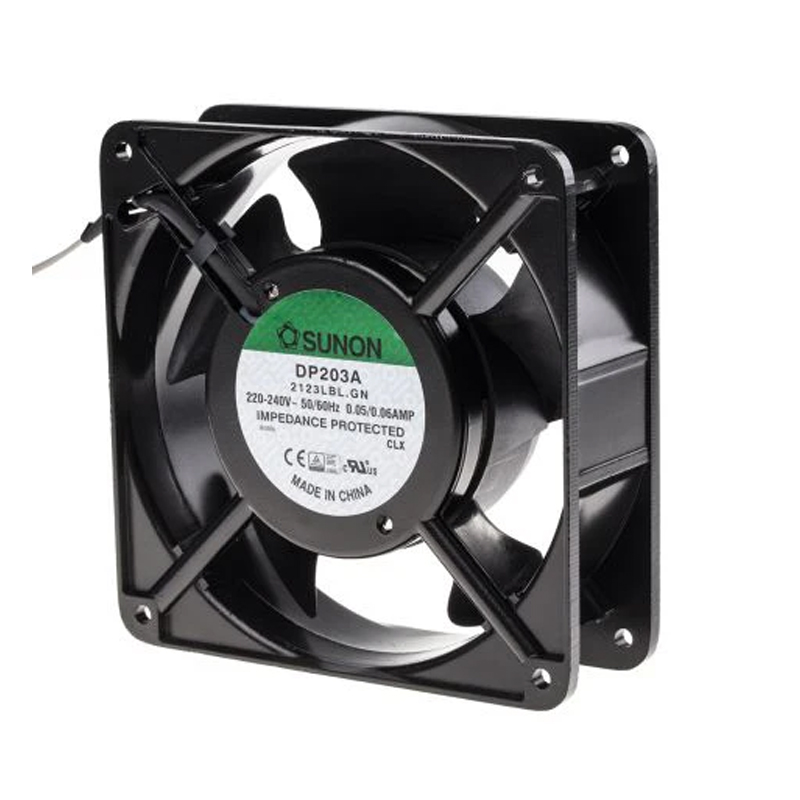

DP203A/2123LBL.GN \| SUNON 220-240VACV 10W 120x120x38mm AC Axial Fan for HVAC & Ventilation Within commercial refrigeration and refrigerator cooling, SUNON DP203A/2123LBL.GN serves as a 120 × 120 × 38 mm AC axial fan operating at 220-240VAC VAC. Its 2150 rpm rating defines a lower-speed operating point. Base airflow-path design on the stated frame geometry. Obtain the applicable curve before final duty-point approval.	220-240VAC	120x120x38	122.3	22.4	10	2150	37

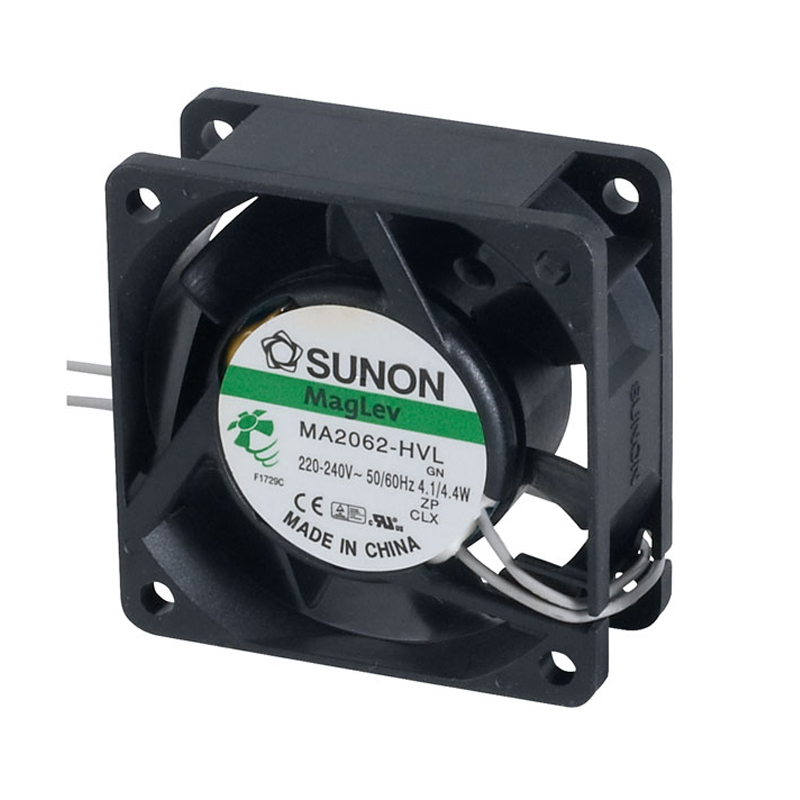

MA2062-HVL GN \| SUNON 220V 4.4W 60x60x25mm 4200rpm AC Axial Fan for HVAC & Ventilation Within commercial refrigeration and refrigerator cooling, SUNON MA2062-HVL GN serves as a 60 × 60 × 25 mm AC blower operating at 220 VAC. 4.4 W input is the defining electrical load in the supplied data. Use the documented rated dataset when planning acoustic assessment. Match the exact part number before approving a substitute.	220	606025	-	-	4.4	4200	-

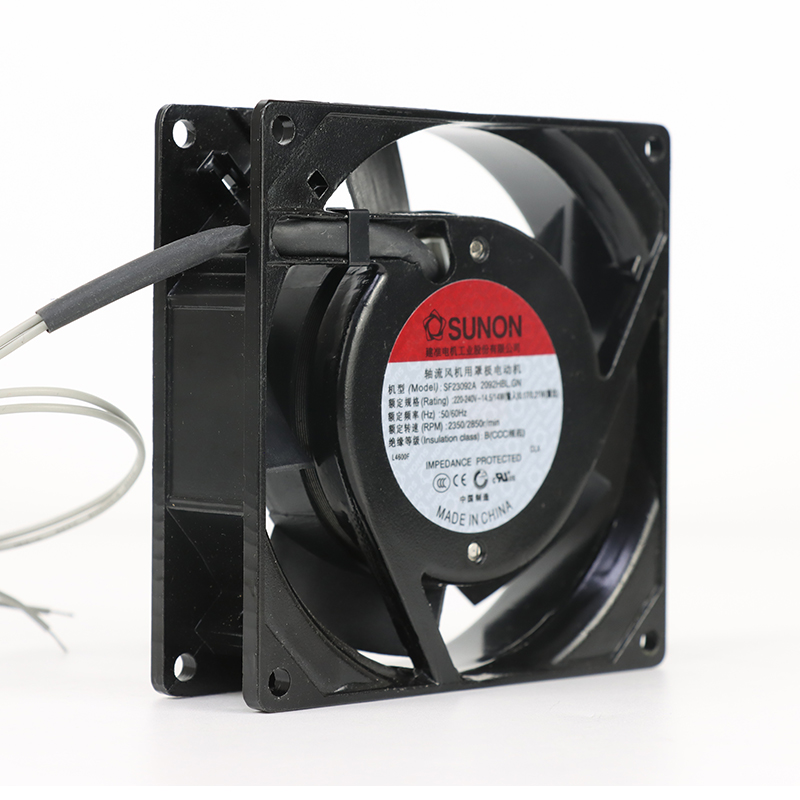

SF23092A/2092HBL GN \| SUNON 240VACV 14W 91.5x91.5x25.5mm AC Axial Fan for HVAC & Ventilation The SF23092A/2092HBL GN is SUNON's 240VAC VAC, 91.5 × 91.5 × 25.5 mm AC axial fan option for commercial refrigeration and refrigerator cooling. Its 2850 rpm rating defines a lower-speed operating point. Treat the ventilation capacity as a primary input to acoustic assessment. Match the exact part number before approving a substitute.	240VAC	91.5x91.5x25.5	62.9	47.3	14	2850	40

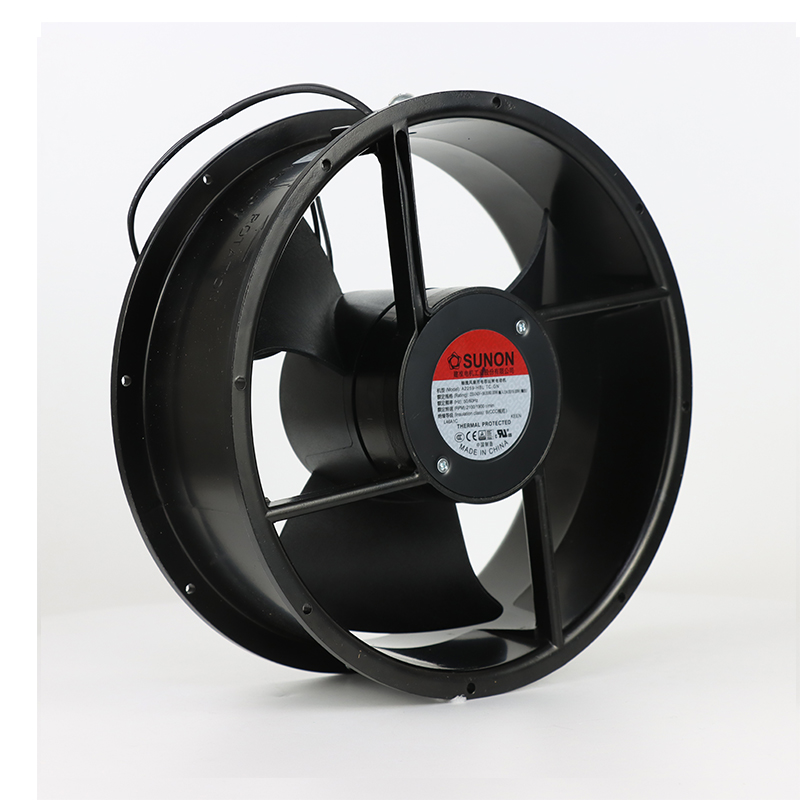

A2259-HBL TC.GN \| SUNON 230V 60W 254x89mm 850m3/h 1900rpm AC Axial Fan for HVAC & Ventilation SUNON A2259-HBL TC.GN combines a 254 × 89 mm AC axial fan platform with a 230 VAC rating for commercial refrigeration and refrigerator cooling. Up to 850 m³/h is its most prominent listed performance figure. Review its speed benchmark during acoustic assessment. Match the exact part number before approving a substitute.	230	254*89	850	-	60	1900	57

显示

1-20

1-20 21-32

共 32 个

1 2

跳转页

关于交流风扇

如何选择合适的交流风扇

确定交流风扇最可靠的方法是从系统出发，而不是从产品目录出发。先实测或计算风量和压力需求，再加上安装位置的尺寸限制，最后才从曲线能以裕量覆盖您工作点的系列中筛选。

电气匹配是下一道关口。确认供电电压——小型电子散热常用 12 V、24 V 或 48 V DC，设备和机柜散热常用 115 V 或 230 V AC——并确定是否需要调速。EC 风机支持 PWM 或 0-10 V 信号调速，并可通过测速输出反馈转速，是变风量系统的默认之选；AC 风机在定速工况下则依然是高性价比方案。

接下来按环境筛选。高温环境、粉尘或潮湿负载决定了 IP 防护等级和轴承选择——滚珠轴承能让风量和噪音多年保持稳定，含油轴承则适合轻载卧式安装。UL、CE、RoHS 等法规认证要求应在入围名单提交采购前确认，同时确定允许的最大声压级（dBA）。

流程的最后是确认供应而不只是确认参数：确认当前库存和补货交期，取得规格书和尺寸图，确保机械接口在下单前验证完毕。把风量和压力需求发给我们，工程师将为您确认匹配度最高的系列 —— 该分类今天共有 32 件产品可供选购。

交流风扇的典型应用场景与案例

我们销售工程师的日常工作围绕交流风扇展开：数据中心散热、制冷与冷链项目、建筑通风、通信基站、医疗设备和工业控制柜——在这些环境中，风机停转就意味着业务停摆。正是这种对真实安装场景的日常积累，让我们在每一次选型中不只会看曲线，更清楚哪些型号能经受粉尘、高温、连续运行和维护空间受限的考验。

一个典型案例：某设备制造商需要更换控制柜内一台老旧 AC 风机，且柜体停机时间不能超过一小时。通过逐一核对机壳尺寸、电压和风量曲线，我们提供了带匹配测速信号的在产系列直接替换型号，更换工作在一个计划维护窗口内完成。

制冷与冷链客户带来另一种典型情况：损坏的冷凝器风机数周内无法到货。通过比对直径、转速、轴承和 IP 防护等级，我们从现货提供功能等效的机组，让系统当周恢复运行——这也是众多维修服务公司保存我们联系方式的原因。

从单件紧急替换到面向设备制造商的批量供应，每一单 SUNON 询价我们都遵循同一原则：先核实参数，再报价——确保送到现场的就是项目真正需要的那台风机。

交流风扇采购常见问题解答

采购前能提供哪些技术资料？

下单前可按需提供规格书、性能曲线、尺寸图和认证文件（视适用情况提供 UL、CE、RoHS）——我们始终认为，采购订单应建立在经过验证的选型之上，而不是取代选型。对于项目投标，我们还可以提供产品对比表，把候选型号按您关注的参数逐项并列呈现。

交流风扇是否有现货？多久可以发货？

常规系列和主流电压版本通常备有现货，可在几个工作日内发货；特殊或定制版本按订单生产，一般需要额外的生产时间。您只需提供确切型号或所需参数，我们将在一次回复中确认库存、单价和最早发货日期，该分类目前在线展示 32 件产品。

能否替换我在用的其他供应商的交流风扇或已停产的型号？

可以。备件替换供应是我们的核心服务之一：我们会逐一核对您在用机组的安装尺寸、电压、转速和性能曲线，提出最接近的在产系列等效型号。如机壳或接口略有差异，我们会在下单前明确告知差异，确保替换安装不出现意外。
