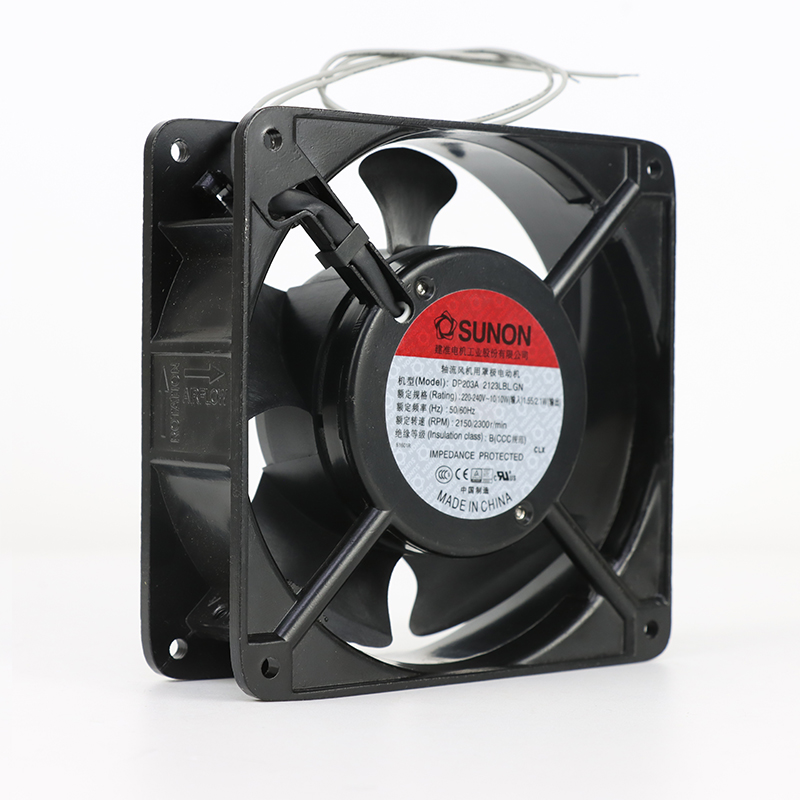

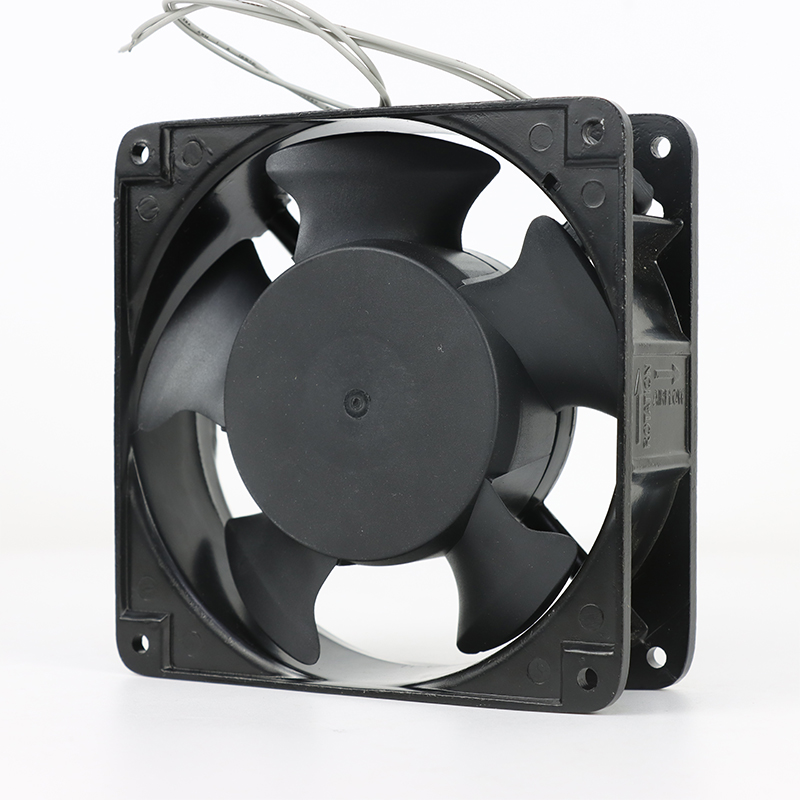

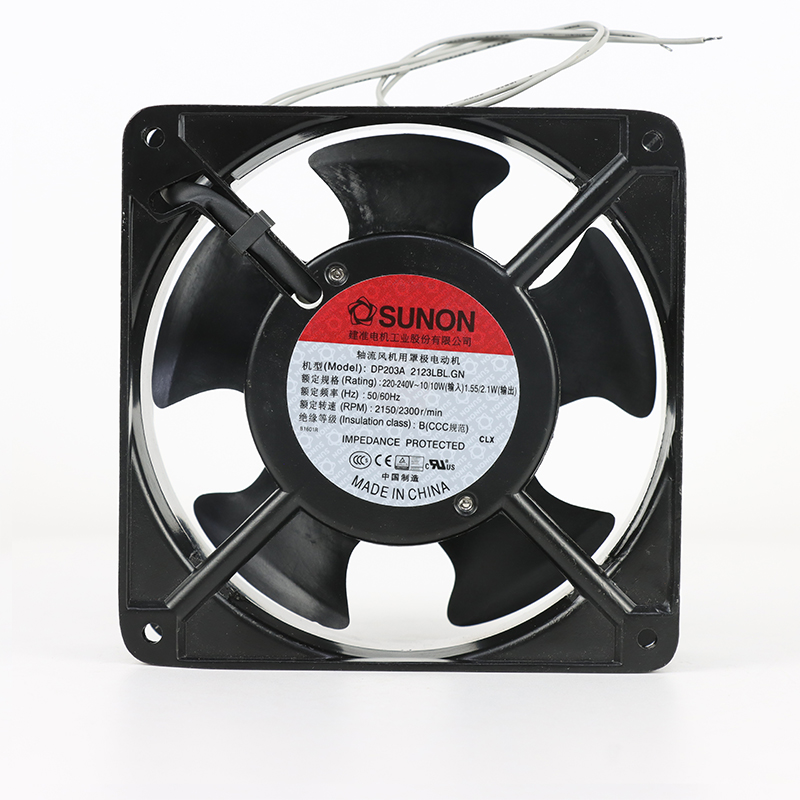

DP203A/2123LBL.GN SUNON 轴流风机

品牌：: SUNON

型号：: DP203A/2123LBL.GN | SUNON 220-240VACV 10W 120x120x38mm AC Axial Fan for HVAC & Ventilation

类型：: 轴流风机

应用行业：: 暖通空调与通风

产品描述：: Within commercial refrigeration and refrigerator cooling, SUNON DP203A/2123LBL.GN serves as a 120 × 120 × 38 mm AC axial fan operating at 220-240VAC VAC. Its 2150 rpm rating defines a lower-speed operating point. Base airflow-path design on the stated frame geometry. Obtain the applicable curve before final duty-point approval.

规格书：: DP203A/2123LBL.GN | SUNON 220-240VACV 10W 120x120x38mm AC Axial Fan for HVAC & Ventilation 规格书 (Pdf)

产品特点

Rated Voltage(V)	220-240VAC
Size(mm)	120x120x38
Max.Air Flow(m³/h)	122.3
Max.Pressure(Pa)	22.4
Input Power(W)	10
Speed(rpm)	2150
Noise(db)	37

产品特点

Reliable Fan Cooling

Equipment builders can integrate SUNON DP203A/2123LBL.GN, an AC axial fan, into HVAC and ventilation equipment. The design supplies the air movement required to carry component heat out of confined spaces.

The AC motor format supports direct integration with the stated supply, while the exact bearing, frequency and protection configuration remain tied to the complete part number.

The final DP203A/2123LBL.GN selection should consider connector reach as part of the installation layout. Finishing power-budget review during prototype approval helps reduce integration uncertainty and supports reliable equipment cooling. Confirm startup and steady-state demand against the available supply. The final assembly should be tested under its expected thermal load.

应用行业

HVAC Equipment

SUNON DP203A/2123LBL.GN serves HVAC equipment. Airflow around control and heat-exchange sections helps address continuous heating and cooling loads. The fan gives OEM equipment a defined air route and supports stable air-conditioning operation. It supports reliable equipment cooling.

Ventilation Systems

SUNON DP203A/2123LBL.GN serves industrial ventilation systems. Airflow around equipment air passages and thermal assemblies helps address continuous airflow demand. The fan gives OEM equipment a defined air route and supports controlled air circulation.

Heat Exchangers

SUNON DP203A/2123LBL.GN serves heat-exchange equipment. Airflow around coil and exchanger surfaces helps address transferred thermal energy. The fan gives OEM equipment a defined air route and supports effective heat rejection. It supports reliable equipment cooling.

常见问题

What bearing information is confirmed for DP203A/2123LBL.GN?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

How should DP203A/2123LBL.GN be matched to an enclosure?

Review its 120 × 120 × 38 mm size, 122.3 m³/h airflow, 22.4 Pa pressure, system resistance, and available mounting space.

Can DP203A/2123LBL.GN serve high-reliability cooling systems?

Assess reliability from the exact bearing, temperature, protection, and life data. The supplied series note alone does not confirm every suffix-specific option.

Which selection data still require confirmation for DP203A/2123LBL.GN?

Confirm any missing bearing, connector, control, IP rating, life, certification, and performance-curve details for the complete part number.

Is DP203A/2123LBL.GN compatible with a replacement fan?

Match voltage, dimensions, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

How can DP203A/2123LBL.GN affect operating cost?

Compare its listed 10 W input with the required airflow and run time. Total savings depend on the complete system duty point.
