交流风机-工业用交流供电风机及鼓风机

交流风扇

27 个结果

按类型

按行业

Rated Voltage(V)

Size(mm)

Max.Air Flow(m³/h)

Max.Pressure(Pa)

Input Power(W)

Speed(rpm)

Noise(db)

已选条件

显示

1-20

1-20 21-27

共 27 个

推荐最受欢迎

下载表格

制造商料号	Rated Voltage(V)	Size(mm)	Max.Air Flow(m³/h)	Max.Pressure(Pa)	Input Power(W)	Speed(rpm)	Noise(db)

UF-15KM23BWH \| Fulltech 230VAC 42W AC Axial Fan for Control Cabinet and Power Supply Cooling The 150 × 172 × 55 mm UF-15KM23BWH brings 230 VAC AC axial fan ventilation to industrial cabinets and power supplies. Its die-cast aluminum frame is the representative structural feature; ball bearings and lead-wire connection are also documented. Rated data: 42 W input, up to 391 m³/h, 3250 rpm, 53 dB.	230	17215055	391	-	42	3250	53

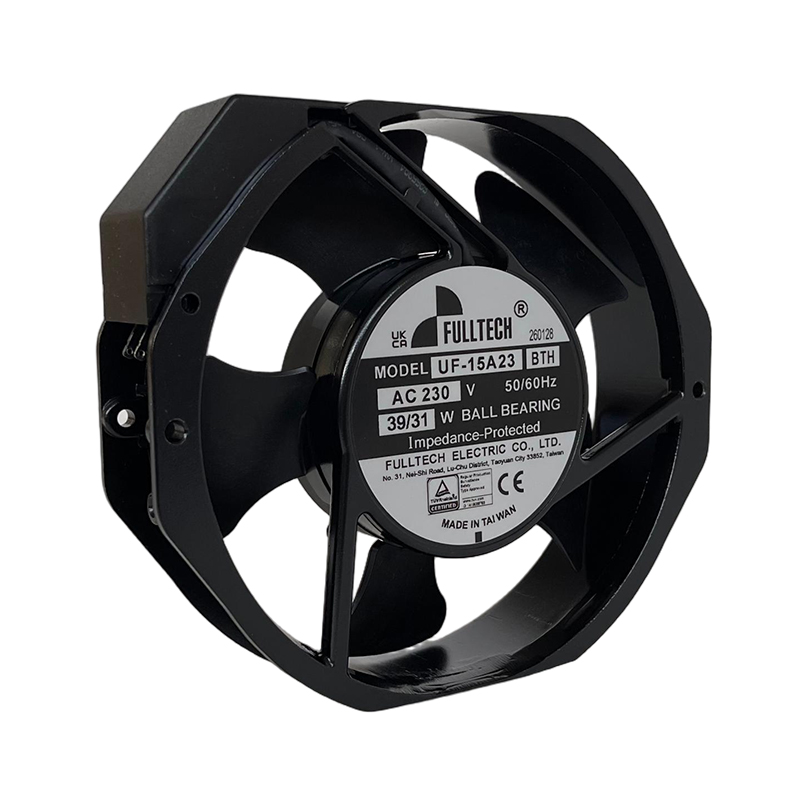

UF-15A23BTH \| Fulltech 230VAC 31W AC Axial Fan for Control Cabinet and Power Supply Cooling In industrial cabinets and power supplies, UF-15A23BTH supplies airflow through a 150 × 172 × 38 mm, 230 VAC AC axial fan configuration. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 31 W input, up to 337 m³/h, 3200 rpm, 55 dB.	230	17215038	337	-	31	3200	55

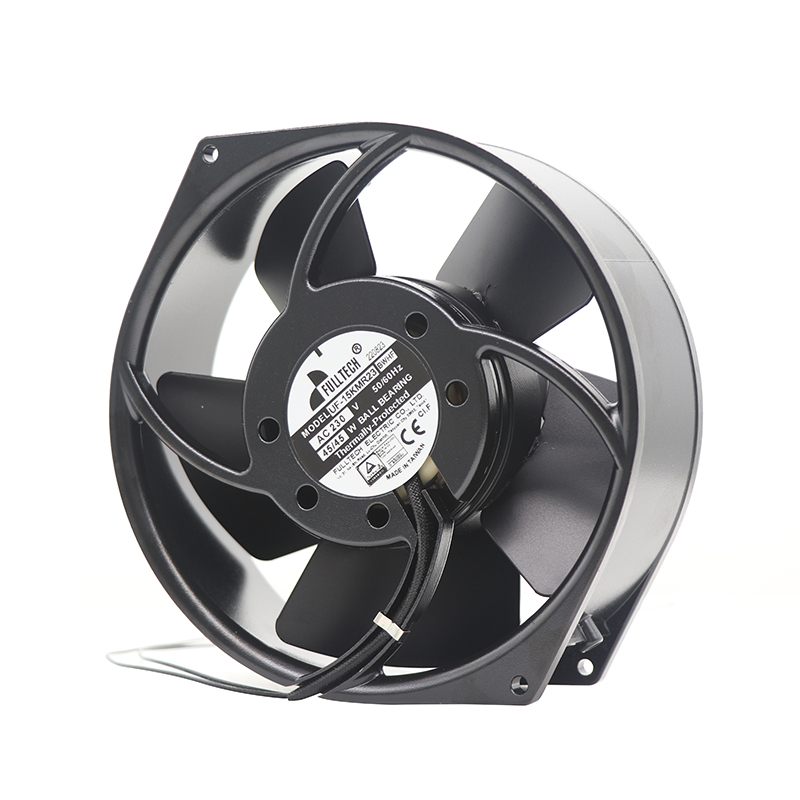

UF-15KMR23 BWHF \| Fulltech 230VAC 45W AC Axial Fan for Control Cabinet and Power Supply Cooling Built around 150 × 172 × 55 mm, the UF-15KMR23 BWHF uses a 230 VAC AC axial fan arrangement for industrial cabinets and power supplies. Lead-wire connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 45 W input, up to 433 m³/h, 3150 rpm, 61 dB.	230	17215055	433	-	45	3150	61

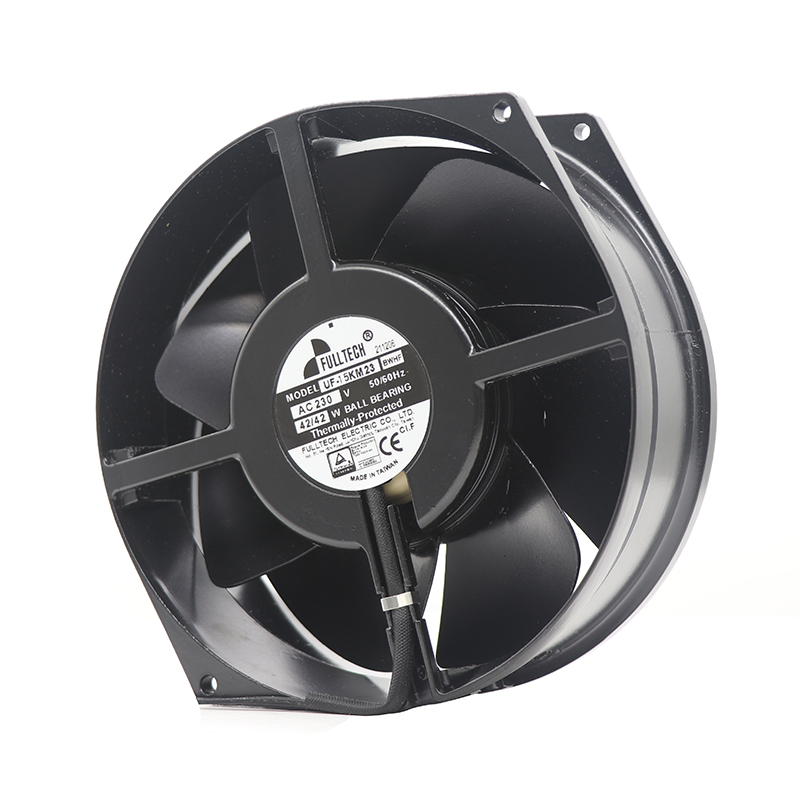

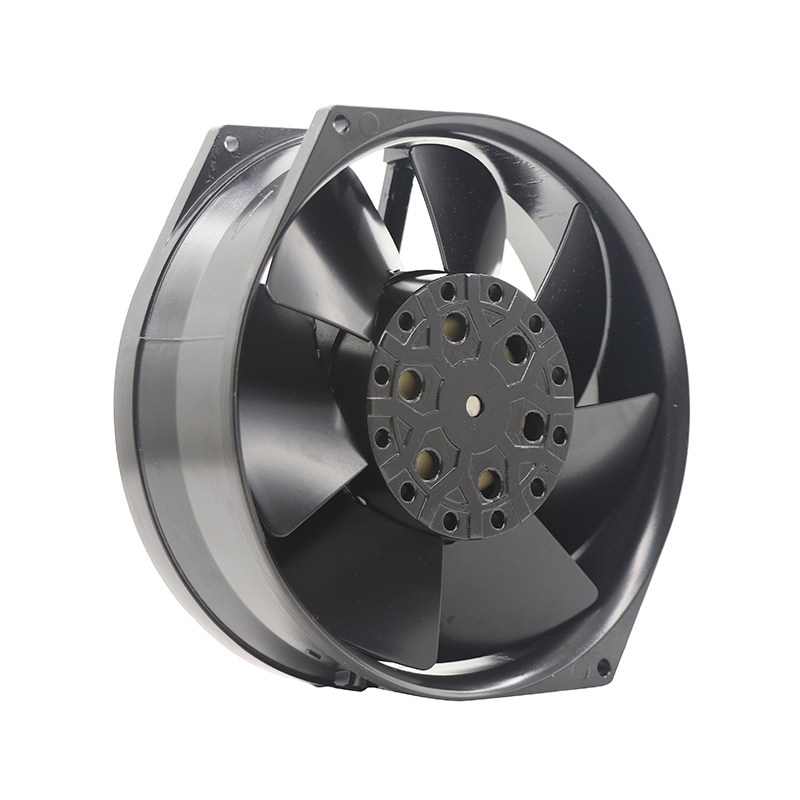

UF-15KM23BWHF \| Fulltech 230VAC 42W AC Axial Fan for Control Cabinet and Power Supply Cooling Fulltech UF-15KM23BWHF provides 230 VAC AC axial fan cooling for industrial cabinets and power supplies from a 150 × 172 × 55 mm format. Ball-bearing construction is the central durability detail, paired with lead-wire connection and motor protection. Rated data: 42 W input, up to 391 m³/h, 3250 rpm, 53 dB.	230	17215055	391	-	42	3250	53

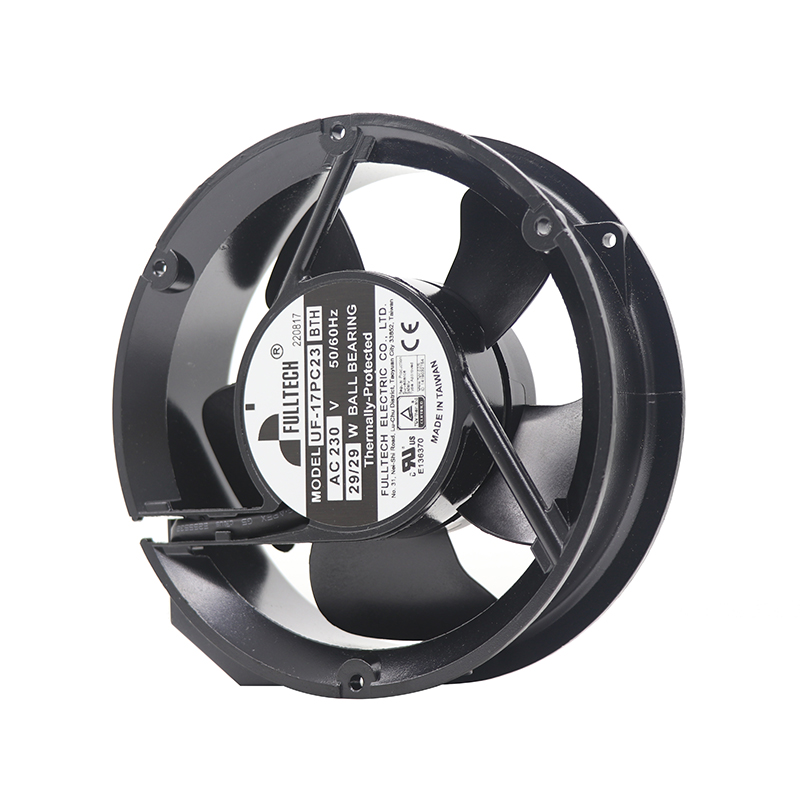

UF-17PC23BTH \| Fulltech 230VAC 29W AC Axial Fan for HVAC and Industrial Equipment Cooling A Ø172 × 51 mm body, 230 VAC rating, and AC axial fan configuration define Fulltech UF-17PC23BTH for cooling in HVAC, refrigeration, heat exchangers, and industrial cooling. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 29 W input, up to 384 m³/h, 3400 rpm, 55 dB.	230	172φ*51	384	-	29	3400	55

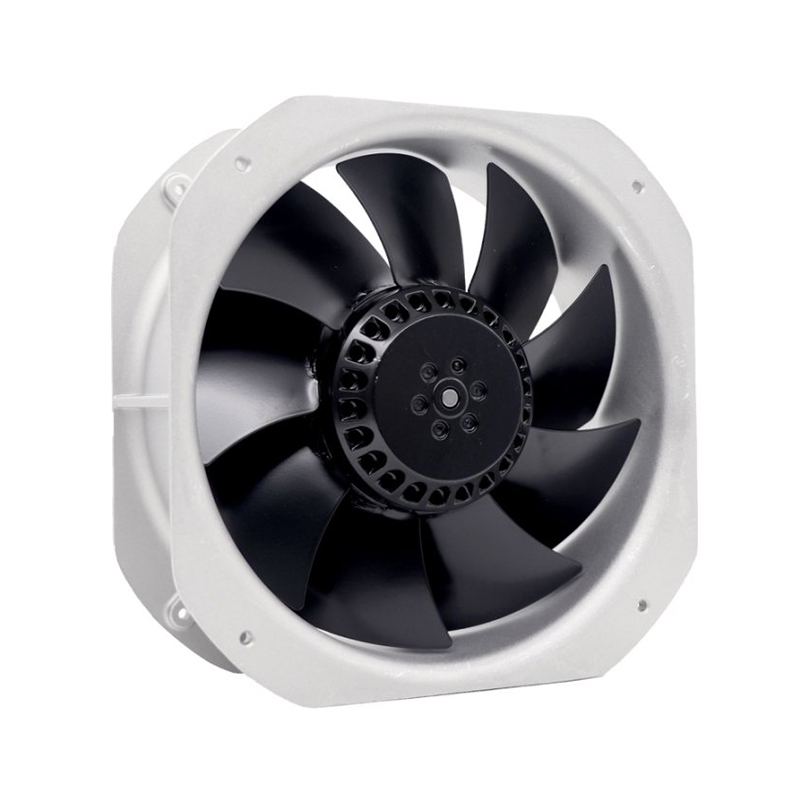

UF-200BMB23H2C2A \| Fulltech 230VAC 74W AC Axial Fan for HVAC and Refrigeration Equipment Cooling UF-200BMB23H2C2A is a Ø200 mm AC axial fan rated for 230 VAC and applied in HVAC and industrial cooling. Its welded impeller, external-rotor motor, ball bearings, and motor protection support continuous ventilation. Rated data: 74 W input, up to 1063 m³/h, 3000 rpm, 61 dB. Its stated operating and dimensional data support duty-point review.	230	22522580	1063	-	74	3000	61

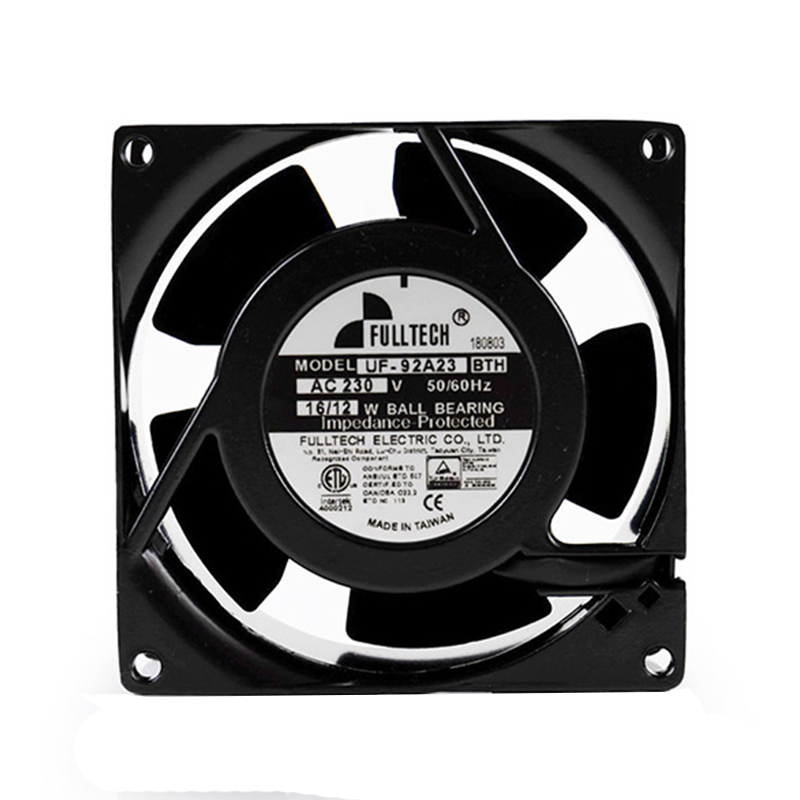

UF-92A23BTH \| Fulltech 230VAC 12W AC Axial Fan for Control Cabinet and Power Supply Cooling For industrial cabinets and power supplies, UF-92A23BTH is a 230 VAC AC axial fan in a 92 × 92 × 38 mm package. Terminal connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 12 W input, up to 78 m³/h, 3300 rpm, 38 dB. Its stated mounting and performance data support duty-point review.	230	929238	78	-	12	3300	38

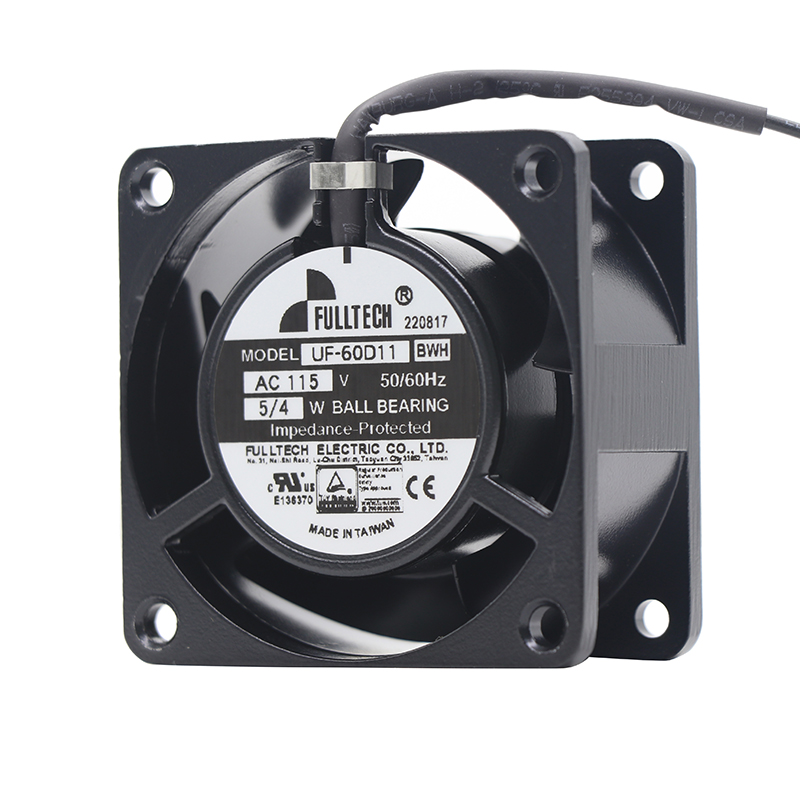

UF-60D11BWH \| Fulltech 115VAC 4W AC Axial Fan for Control Cabinet and Power Supply Cooling UF-60D11BWH addresses industrial cabinets and power supplies as a 115 VAC AC axial fan housed in a 60 × 60 × 30 mm frame. Ball-bearing construction is the central durability detail, paired with lead-wire connection and motor protection. Rated data: 4 W input, up to 17 m³/h, 3000 rpm, 28 dB.	115	606030	17	-	4	3000	28

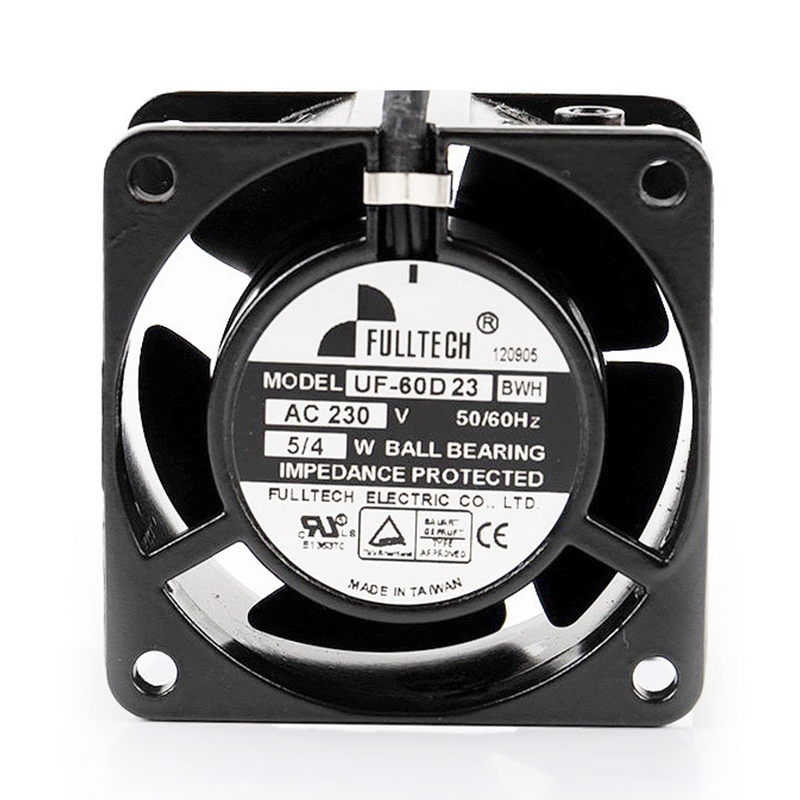

UF-60D23BWH \| Fulltech 230VAC 5W AC Axial Fan for Control Cabinet and Power Supply Cooling Specified for industrial cabinets and power supplies, UF-60D23BWH pairs a 60 × 60 × 30 mm footprint with 230 VAC AC axial fan operation. Its die-cast aluminum frame is the representative structural feature; ball bearings and lead-wire connection are also documented. Rated data: 5 W input, up to 17 m³/h, 3100 rpm, 28 dB.	230	606030	17	-	5	3100	28

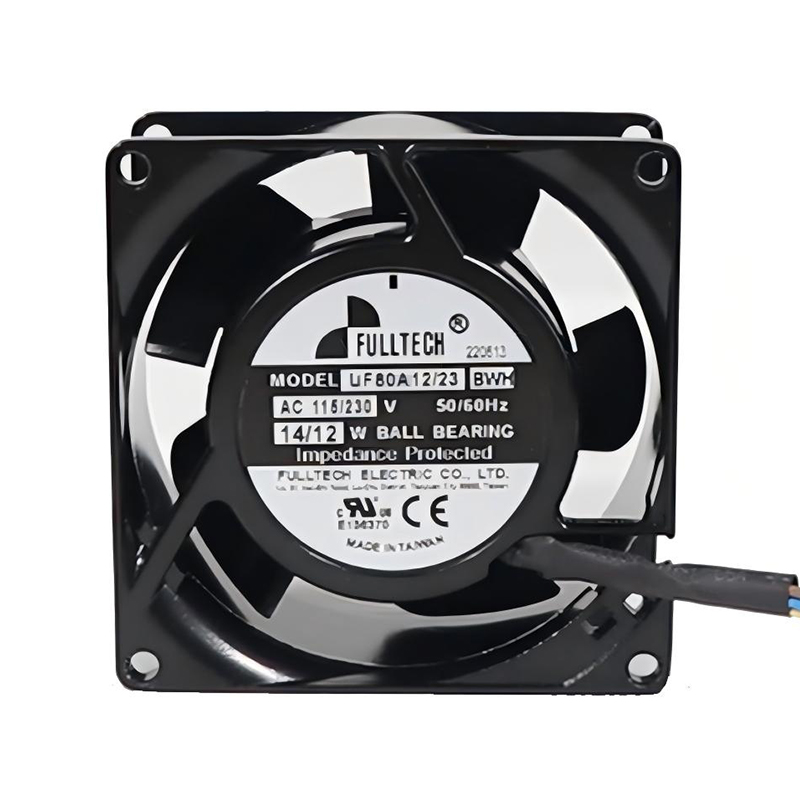

UF-80A12/23BWH \| Fulltech 120/230VAC 12W AC Axial Fan for Control Cabinet and Power Supply Cooling The 80 × 80 × 38 mm UF-80A12/23BWH brings 120/230 VAC AC axial fan ventilation to industrial cabinets and power supplies. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and lead-wire connection. Rated data: 12 W input, up to 51 m³/h, 3000 rpm, 36 dB.	230	808038	51	-	12	3000	36

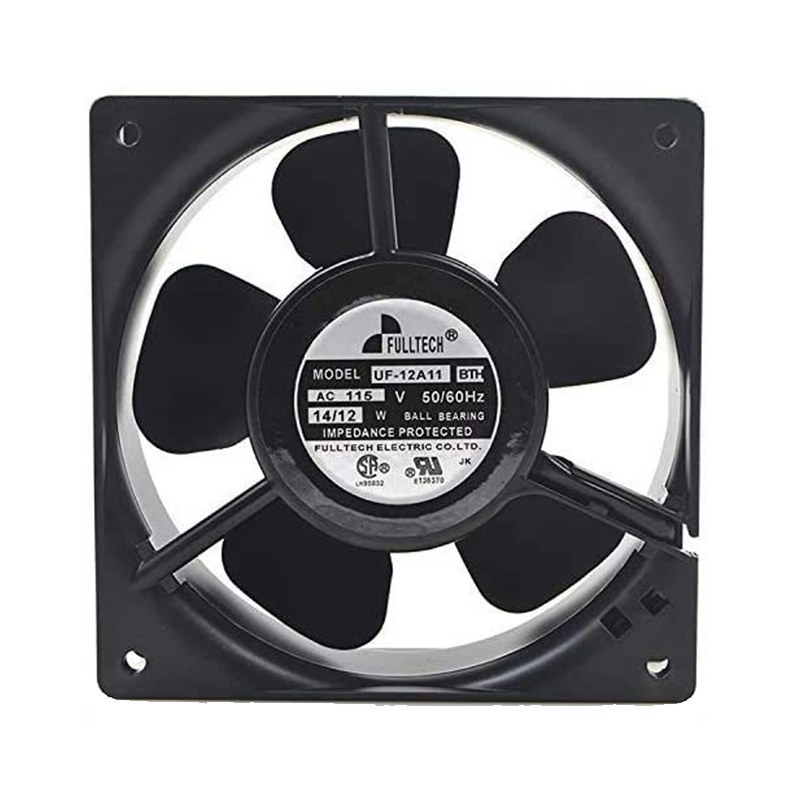

UF-12A11BTH \| Fulltech 115VAC 12W AC Axial Fan for Control Cabinet and Power Supply Cooling In industrial cabinets and power supplies, UF-12A11BTH supplies airflow through a 120 × 120 × 38 mm, 115 VAC AC axial fan configuration. A die-cast frame and ball bearings define the mechanical design, while terminal connection supports integration. Rated data: 12 W input, up to 180 m³/h, 3100 rpm, 46 dB.	115	12012038	180	-	12	3100	46

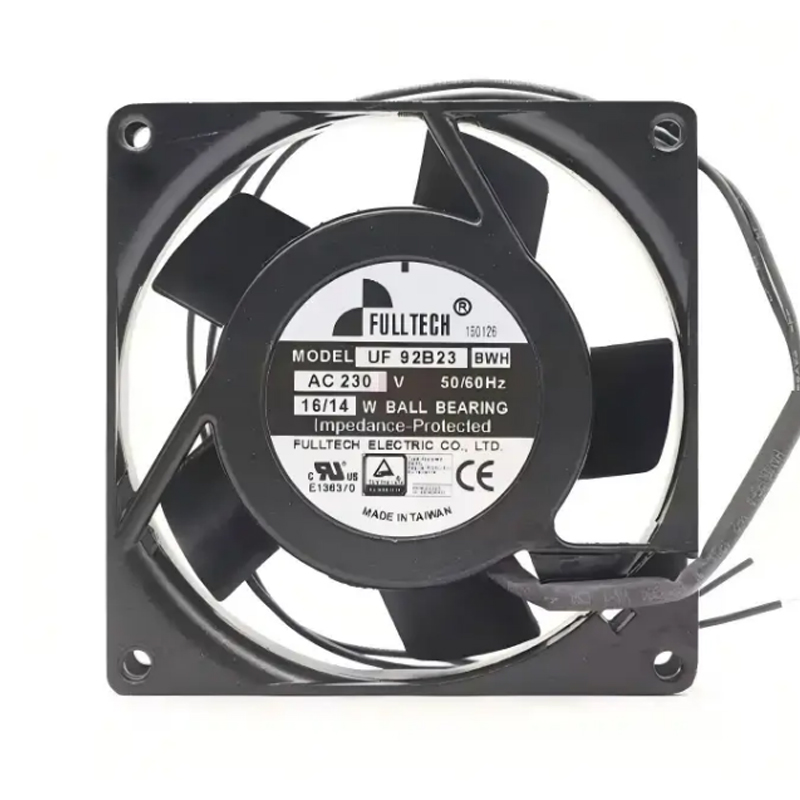

UF-92B23BWH \| Fulltech 230VAC 14W AC Axial Fan for Control Cabinet and Power Supply Cooling industrial cabinets and power supplies is the target duty for UF-92B23BWH, a 230 VAC AC axial fan measuring 92 × 92 × 25 mm. Lead-wire connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 14 W input, up to 68 m³/h, 3000 rpm, 36 dB.	230	929225	68	-	14	3000	36

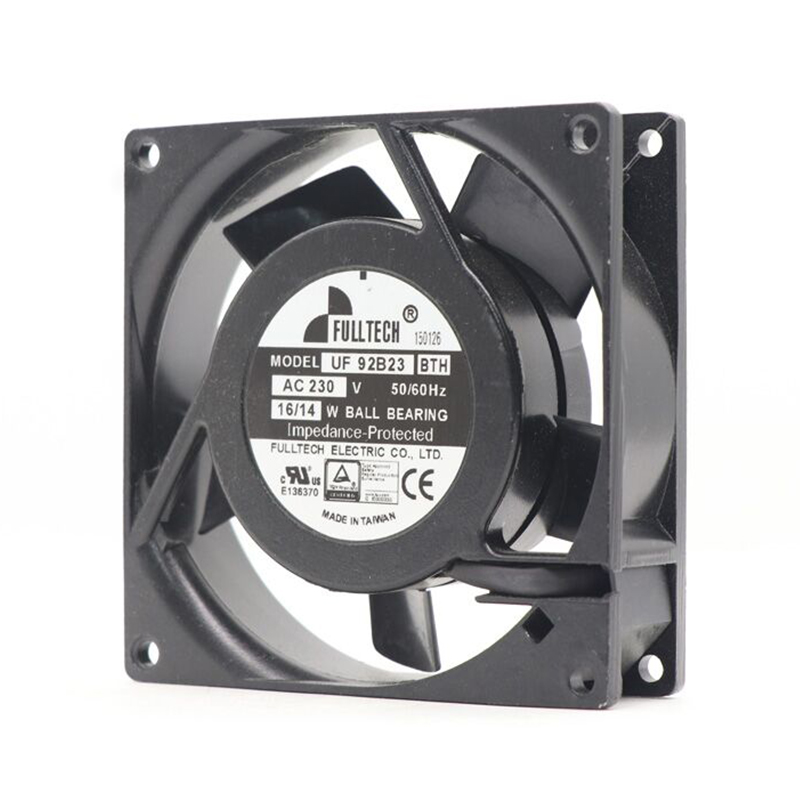

UF-92B23BTH \| Fulltech 230VAC 16W AC Axial Fan for Control Cabinet and Power Supply Cooling Built around 92 × 92 × 25 mm, the UF-92B23BTH uses a 230 VAC AC axial fan arrangement for industrial cabinets and power supplies. Ball-bearing construction is the central durability detail, paired with terminal connection and motor protection. Rated data: 16 W input, up to 68 m³/h, 3000 rpm, 36 dB.	230	929225	68	-	16	3000	36

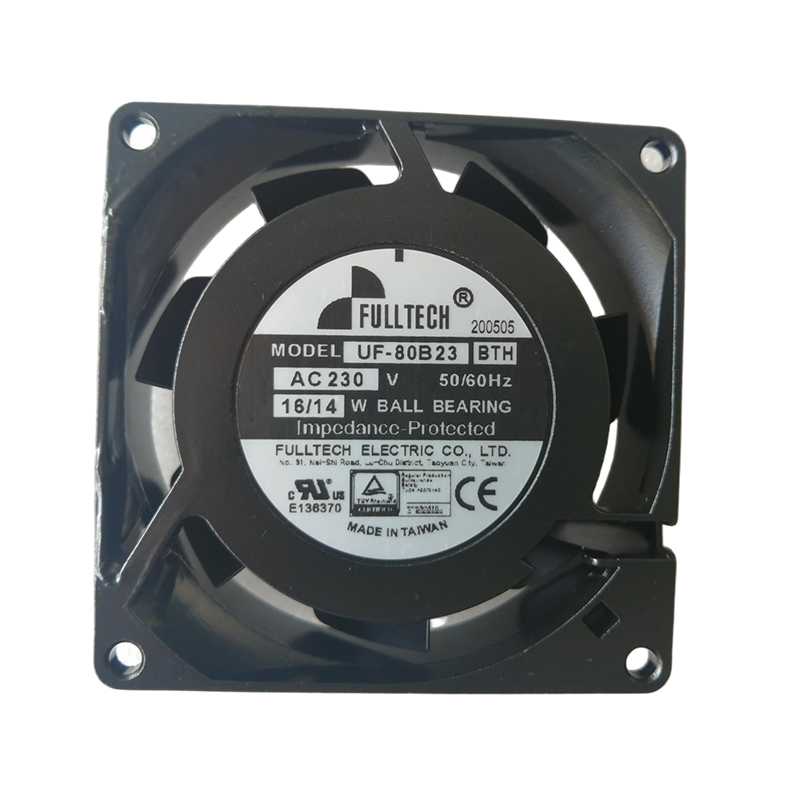

UF-80B23BTH \| Fulltech 230VAC 14W AC Axial Fan for Control Cabinet and Power Supply Cooling The 230 VAC UF-80B23BTH is a 80 × 80 × 25 mm AC axial fan specified for industrial cabinets and power supplies. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 14 W input, up to 39 m³/h, 3100 rpm, 35 dB. Its stated size and electrical data support installation planning.	230	808025	39	-	14	3100	35

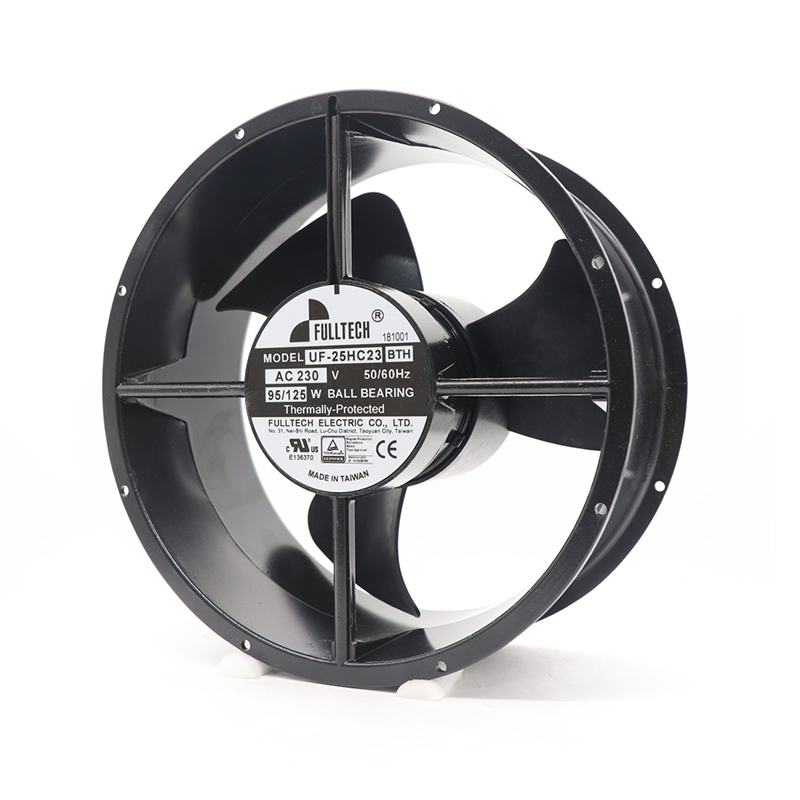

UF-25HC23BTH \| Fulltech 230VAC 125W AC Axial Fan for HVAC and Industrial Equipment Cooling Serving HVAC and industrial cooling, the UF-25HC23BTH combines 230 VAC operation with a Ø254 × 107 mm AC axial fan design. Its documented capacitor-start operation differentiates the design; the fan also uses a die-cast frame and ball bearings. Rated data: 125 W input, up to 1445 m³/h, 2750 rpm, 65 dB.	230	φ254*107	1445	-	125	2750	65

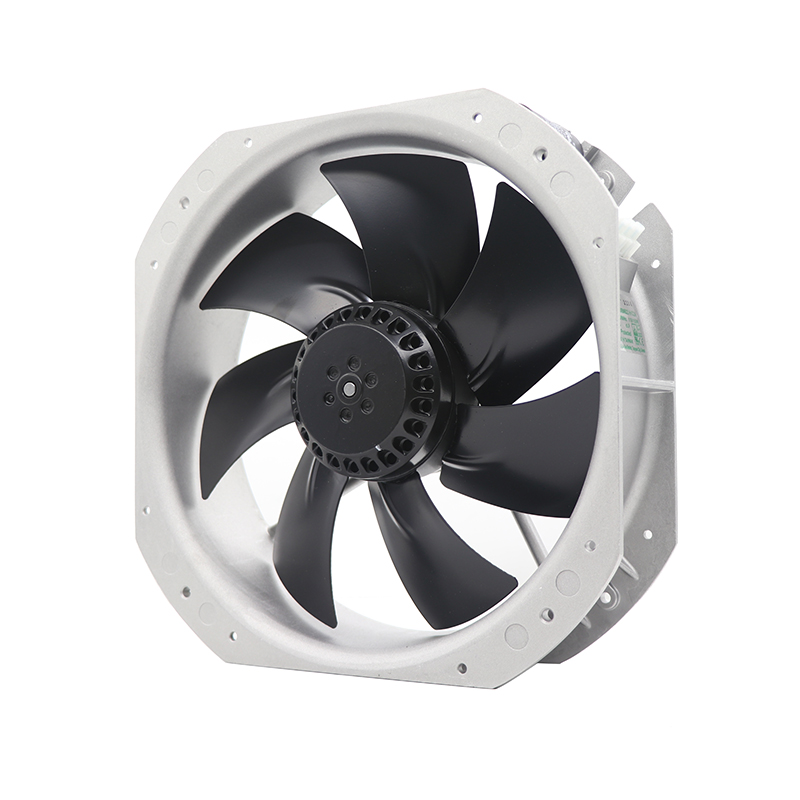

UF-250BMB23H1C2A \| Fulltech 230VAC 158W AC Axial Fan for HVAC and Refrigeration Equipment Cooling With a Ø250 mm outline and 230 VAC electrical rating, Fulltech UF-250BMB23H1C2A is a AC axial fan specified for HVAC, refrigeration, heat exchangers, and industrial cooling. An integrated external-rotor motor, welded impeller, ball bearings, and protection define this version. Rated data: 158 W input, up to 1921 m³/h, 2700 rpm, 70 dB.	230	28028080	1921	-	158	2700	70

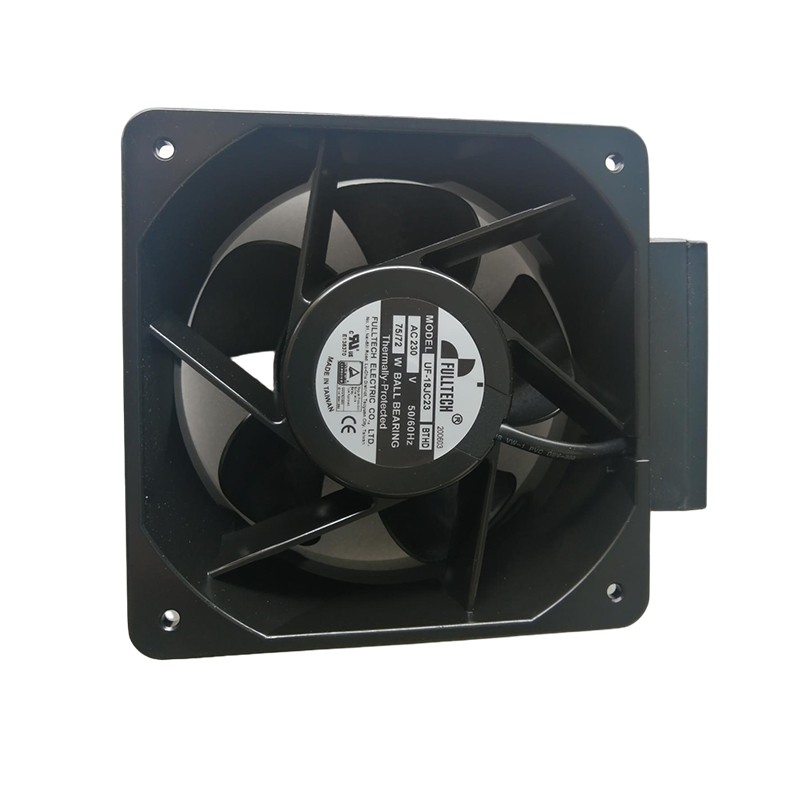

UF-18JC23BTHD \| Fulltech 230VAC 72W AC Axial Fan for HVAC and Industrial Equipment Cooling For HVAC and industrial cooling, UF-18JC23BTHD is a 230 VAC AC axial fan in a 180 × 180 × 90 mm package. Ball-bearing construction is the central durability detail, paired with terminal connection and motor protection. Rated data: 72 W input, up to 782 m³/h, 3400 rpm, 59 dB. Its stated operating and dimensional data support system comparison.	230	18018090	782	-	72	3400	59

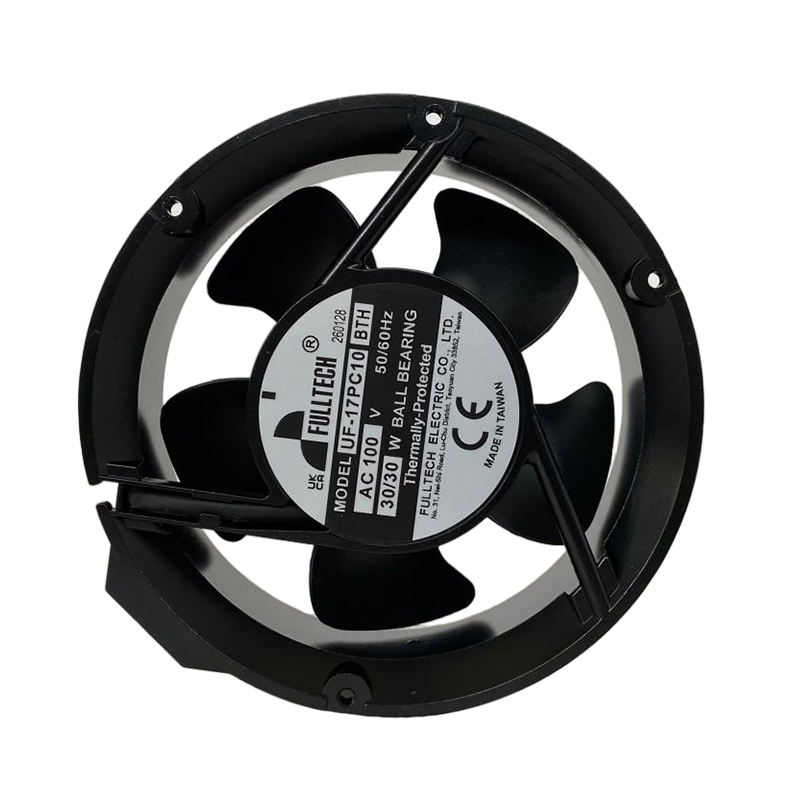

UF-17PC10BTH \| Fulltech 100VAC 30W AC Axial Fan for HVAC and Industrial Equipment Cooling UF-17PC10BTH addresses HVAC and industrial cooling as a 100 VAC AC axial fan housed in a Ø172 × 51 mm frame. Its die-cast aluminum frame is the representative structural feature; ball bearings and terminal connection are also documented. Rated data: 30 W input, up to 384 m³/h, 2850 rpm, 50 dB.	100	φ172*51	384	-	30	2850	50

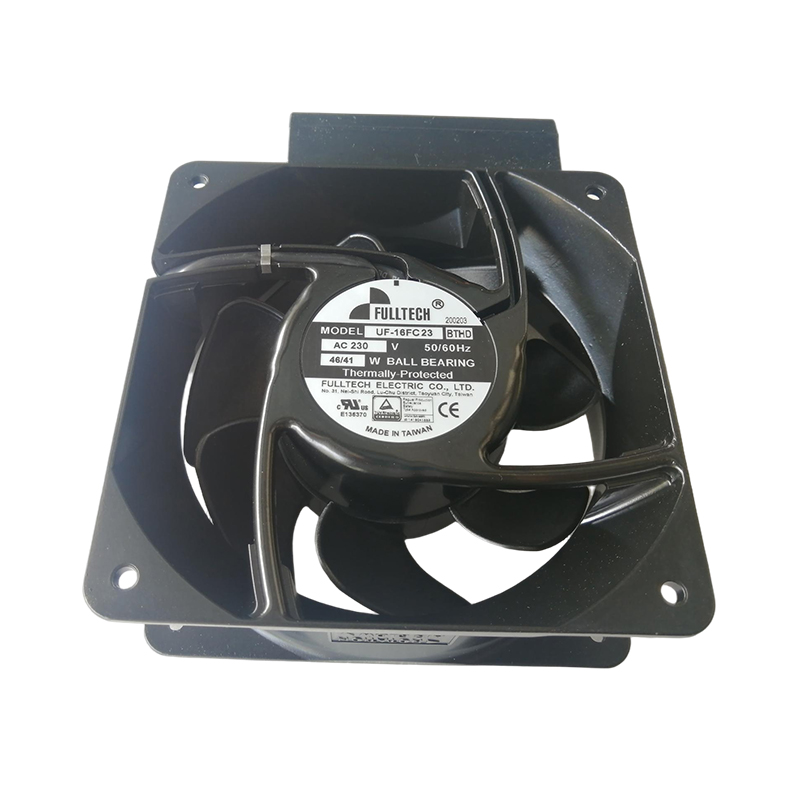

UF-16FC23BTHD \| Fulltech 230VAC 41W AC Axial Fan for HVAC and Industrial Equipment Cooling For equipment designers serving HVAC, refrigeration, heat exchangers, and industrial cooling, Fulltech UF-16FC23BTHD offers a 160 × 160 × 62 mm AC axial fan rated for 230 VAC. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 41 W input, up to 451 m³/h, 3400 rpm, 56 dB.	230	12012025	451	-	41	3400	56

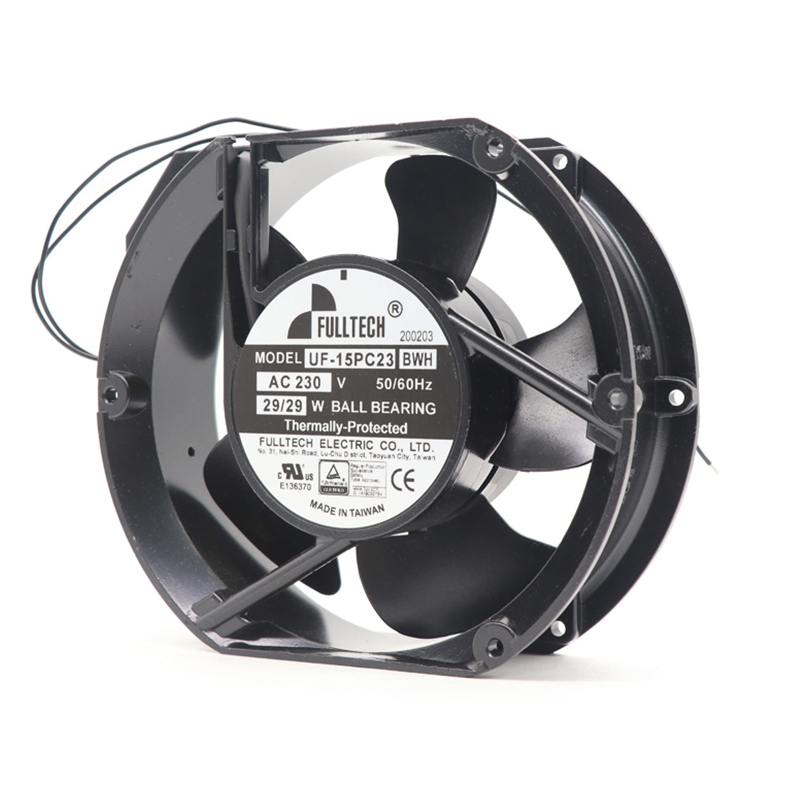

UF-15PC23BWH \| Fulltech 230VAC 29W AC Axial Fan for HVAC and Industrial Equipment Cooling The 150 × 172 × 51 mm UF-15PC23BWH brings 230 VAC AC axial fan ventilation to HVAC and industrial cooling. Its documented capacitor-start operation differentiates the design; the fan also uses a die-cast frame and ball bearings. Rated data: 29 W input, up to 388 m³/h, 3400 rpm, 58 dB. Its stated size and electrical data support system comparison.	230	17215051	388	-	29	3400	58

显示

1-20

1-20 21-27

共 27 个

1 2

跳转页

关于交流风扇

交流风机是工业与民用通风设备中品类最广泛的类别，涵盖了所有由交流电动机驱动的风机类型。这包括用于大风量、低压力场合的交流轴流风机，用于高压风管系统和过滤的交流离心风机，适用于形成宽而均匀气流分布的交流横流风机，以及用于电子设备散热的全系列紧凑型和微型交流风机。交流风扇主要分为两种结构类型：用于220V/110V电源的单相交流电机（在民用和轻工业领域最为常见），以及用于380V工业供电系统的三相交流电机（具有更高的效率和功率等级）。交流风扇通常可直接接入市电，无需使用逆变器，因此在恒速应用中，其结构更简单、可靠性更高，优于变速的电子换向（EC）方案。其代价是与EC技术相比，能效较低，这使得交流风扇不太适用于对转速变化要求较高的应用场景。恒瑞备有来自EBM-Papst、ZIEHL-ABEGG、Rosenberg、SUNON及其他全球知名制造商的中国最齐全的交流风机库存，价格具有竞争力，并提供专业的应用工程支持。

如何选择合适的交流风扇

确定交流风扇最可靠的方法是从系统出发，而不是从产品目录出发。先实测或计算风量和压力需求，再加上安装位置的尺寸限制，最后才从曲线能以裕量覆盖您工作点的系列中筛选。

电气匹配是下一道关口。确认供电电压——小型电子散热常用 12 V、24 V 或 48 V DC，设备和机柜散热常用 115 V 或 230 V AC——并确定是否需要调速。EC 风机支持 PWM 或 0-10 V 信号调速，并可通过测速输出反馈转速，是变风量系统的默认之选；AC 风机在定速工况下则依然是高性价比方案。

接下来按环境筛选。高温环境、粉尘或潮湿负载决定了 IP 防护等级和轴承选择——滚珠轴承能让风量和噪音多年保持稳定，含油轴承则适合轻载卧式安装。UL、CE、RoHS 等法规认证要求应在入围名单提交采购前确认，同时确定允许的最大声压级（dBA）。

流程的最后是确认供应而不只是确认参数：确认当前库存和补货交期，取得规格书和尺寸图，确保机械接口在下单前验证完毕。把风量和压力需求发给我们，工程师将为您确认匹配度最高的系列 —— 该分类今天共有 27 件产品可供选购。

交流风扇的典型应用场景与案例

我们销售工程师的日常工作围绕交流风扇展开：数据中心散热、制冷与冷链项目、建筑通风、通信基站、医疗设备和工业控制柜——在这些环境中，风机停转就意味着业务停摆。正是这种对真实安装场景的日常积累，让我们在每一次选型中不只会看曲线，更清楚哪些型号能经受粉尘、高温、连续运行和维护空间受限的考验。

一个典型案例：某设备制造商需要更换控制柜内一台老旧 AC 风机，且柜体停机时间不能超过一小时。通过逐一核对机壳尺寸、电压和风量曲线，我们提供了带匹配测速信号的在产系列直接替换型号，更换工作在一个计划维护窗口内完成。

制冷与冷链客户带来另一种典型情况：损坏的冷凝器风机数周内无法到货。通过比对直径、转速、轴承和 IP 防护等级，我们从现货提供功能等效的机组，让系统当周恢复运行——这也是众多维修服务公司保存我们联系方式的原因。

从单件紧急替换到面向设备制造商的批量供应，每一单富泰克询价我们都遵循同一原则：先核实参数，再报价——确保送到现场的就是项目真正需要的那台风机。

交流风扇采购常见问题解答

采购前能提供哪些技术资料？

下单前可按需提供规格书、性能曲线、尺寸图和认证文件（视适用情况提供 UL、CE、RoHS）——我们始终认为，采购订单应建立在经过验证的选型之上，而不是取代选型。对于项目投标，我们还可以提供产品对比表，把候选型号按您关注的参数逐项并列呈现。

交流风扇是否有现货？多久可以发货？

常规系列和主流电压版本通常备有现货，可在几个工作日内发货；特殊或定制版本按订单生产，一般需要额外的生产时间。您只需提供确切型号或所需参数，我们将在一次回复中确认库存、单价和最早发货日期，该分类目前在线展示 27 件产品。

能否替换我在用的其他供应商的交流风扇或已停产的型号？

可以。备件替换供应是我们的核心服务之一：我们会逐一核对您在用机组的安装尺寸、电压、转速和性能曲线，提出最接近的在产系列等效型号。如机壳或接口略有差异，我们会在下单前明确告知差异，确保替换安装不出现意外。
