直流风扇-12V/24V直流供电工业风扇在线

直流风扇

178 个结果

按类型

按行业

Rated Voltage(V)

Size(mm)

119*119*38 80*80*38 92*92*38 92*92*32 92*92*25 40*40*10 120*120*38 40*40*28 50*50*15 60*60*15 60*60*25 172φ*51 172*150*51 80*80*25 120x120x38 40*40*20 120*120*25 175 60*60*38 40*40*15 50x50x20 70*70*25 70*70*20 40x40x28 50*50 70x70x25 60×60×25 92*92*20 30*30*10 60×60×10.00 15x15x3.5 172×150×51 φ200*53 80*80*15 60×60×25.4 40×40×28 60×60×25.40 80x80x25.4 51*15 60*60*10 70x70x15 92×92×38 80*80*80 60×60×38 120×120×38 Ø225×99.00 60x60x10 50x50x32 40×40×10 80×80×25 38x38x28 60*60*25.4 φ120*54 55*55*8 80×80×38 70*70*25.4 ø250*89 50*50*20 120x120x25.4 80x80x38 172×150×50.8 127×127×38 40x40x15 80×80×32 60x60x25.4 70*70*38 80×80×38.00 92x92x25.4 75.7×75.7×30 75.7×75.7×25.00 60x60x15 50x50x10 80×80×15.00 139.7×139.7×50.8 80x80x15 70×70×15.00 92×92×38.00

Max.Air Flow(m³/h)

19 42 308 222 79 115 61 204 225 1030 28 6 17 258 176.307 17.17 32.98 85.34 430 25.211 34.5 26.843 88.349 60.3 20.5 79.73 187 136 297.4 46.75 65.28 65.195 59.5 40.8 361.42 115.26 136.34 58.055 17.2 221 27.6 26.5 19.6 6.8 30.4 8.7 258.1 59.1 91.8 40.3 16 129.37 51.816 7.3 29.4 47.1 220 36 0.525 553 72 569.5 113.9 297.551 760 897 1268.37 136.2 409.7 13.855 65.2 45 71.4 7.803 63.78 247.2 727.6 297.5 113.3 37 322.8 323.85 1296 22.8 53.64 85.68 13.9 125.5 88.4 85.7 27.4 287.4 112 85.3 37.06 38.6 182.41 93.6 219.9 361 92.82 72.59 60.6 113.88 161.64 255.42 25.8 256 13.77 73.8 225.24 168.24 507.6 540.6 174 111.52 49.64 51.8 339.8 39.7 58.14 22.1 25 19.3 105.3 85.6 64.8 105.74 123.6 98.4 26 104.2 46.8 26.1 140.539 19.38 82.2 464 44.251 66.5 6.358 82.92 47.9 53.4 145.2

Max.Pressure(Pa)

16 9 75.51 13.5 14.4 17 453.2 135.5 103.7 78.5 126.8 21.7 196.8 4897.1 142.2 142 52 34.3 267.8 87.5 53.3 48.7 62.9 42.2 97.6 716.6 202.3 21.6 784.7 135.4 54.03 52.27 581.4 487.5 1113.4 433.2 174.4 173 672.6 16.18 261.94 230.7 47.3 50.5 87.7 299.7 6.8 140.2 17.8 242.1 356.5 846.9 88.3 359.7 269.5 1237.7 107.9 103.6 53.8 39.5 97.58 42.17 75.81 121.9 154.9 12.5 190.7 505.73 250.46 233.4 770 128.8 85.9 188.6 52.5 105.1 114.3 5.5 89.4 112.8 216.7 136.2 55.11 119.6 243.3 122.4 74 38.54 210.2 41.58 42.6 202.31 194.5 11 75.2 42.66 30.6 32.17 101

Input Power(W)

Speed(rpm)

Noise(db)

已选条件

显示

1-20

1-20 21-40 41-60 61-80 81-100 101-120 121-140 141-160 161-178

共 178 个

推荐最受欢迎

下载表格

制造商料号	Rated Voltage(V)	Size(mm)	Max.Air Flow(m³/h)	Max.Pressure(Pa)	Input Power(W)	Speed(rpm)	Noise(db)

FFB0924VHE \| Delta Electronics 24VDC 6.72W Axial Fan for Server and Telecommunications Cooling FFB0924VHE provides 24VDC axial fan cooling for servers and telecom equipment in a 92 x 92 x 38 mm format. A listed 3800 rpm speed accompanies 145.2 m3/h maximum airflow and a 6.72 W electrical input.	24	92×92×38.00	145.2	101	6.72	3800	47.5

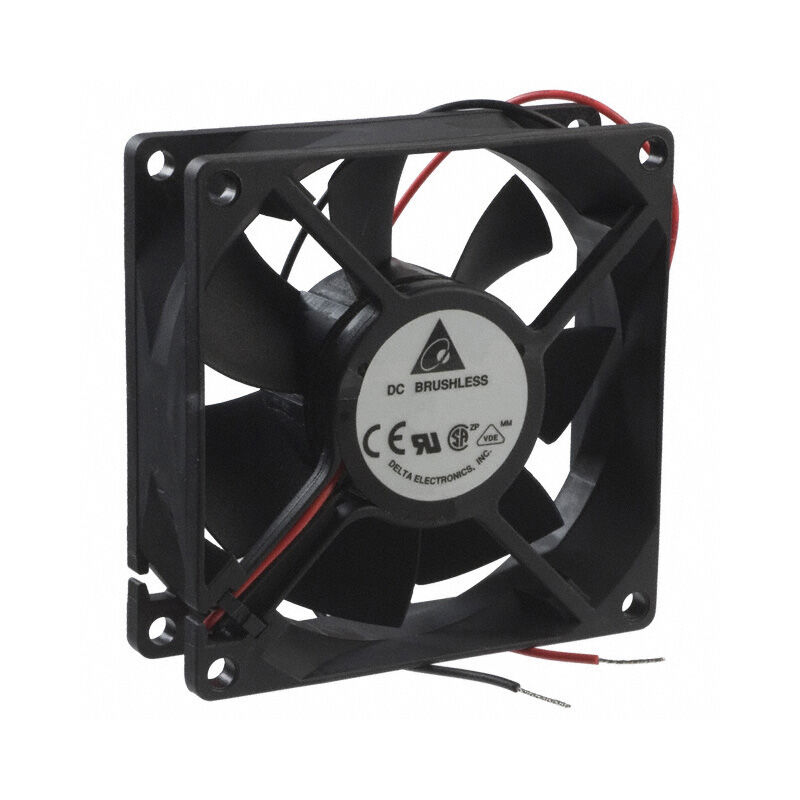

AFB0812L \| Delta Electronics 12VDC 1.08W Axial Fan for Server and Power Supply Cooling The AFB0812L pairs a 1.08 W input rating with a 2700 rpm axial fan rotor for server and power-supply cooling. Powered by 12VDC, it occupies 80 x 80 x 25.4 mm and lists a maximum airflow of 53.4 m3/h.	12	80x80x25.4	53.4	32.17	1.08	2700	28

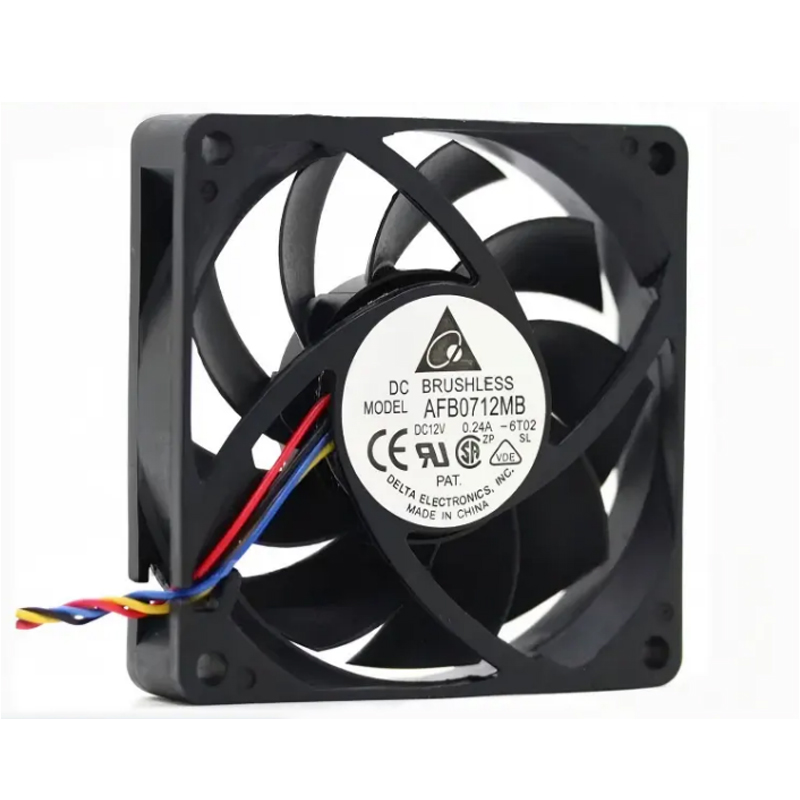

AFB0712MB-F00 \| Delta Electronics 12VDC 1.68W Axial Fan for Server and Power Supply Cooling AFB0712MB-F00 is a 12VDC axial fan for server and power-supply cooling with a 70 x 70 x 15 mm body. Its listed 3300 rpm speed and 1.68 W input distinguish the model from higher-speed 70 mm alternatives.	12	70×70×15.00	47.9	30.6	1.68	3300	31

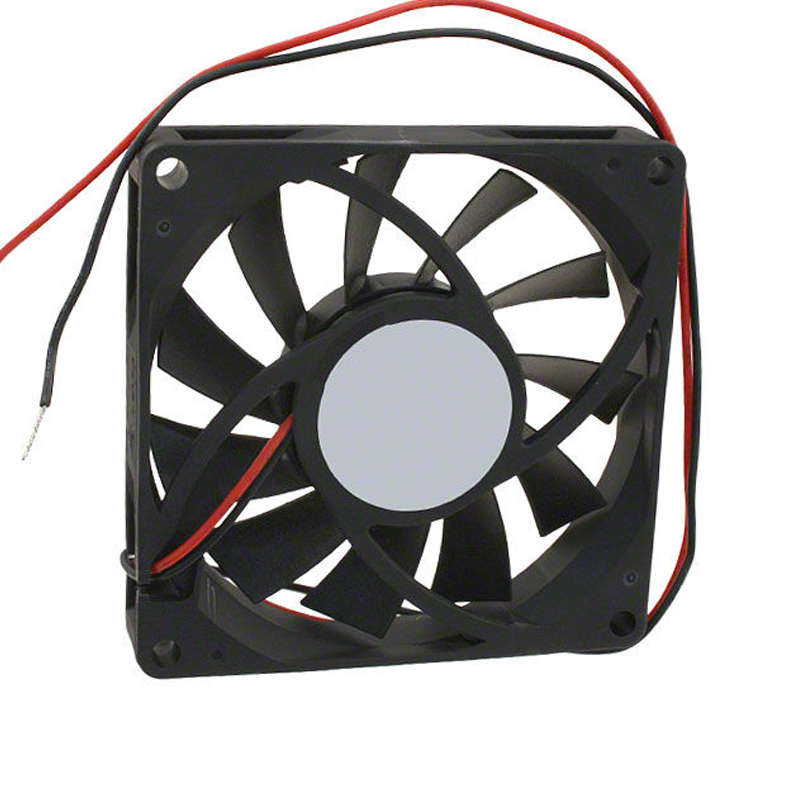

EFB0812HHB \| Delta Electronics 12VDC 3.96W Axial Fan for Industrial Equipment Cooling For industrial equipment ventilation, EFB0812HHB pairs a 3800 rpm axial fan rotor with a 12VDC supply. A 15 mm-deep, 80 mm frame and 3.96 W listed input define its fit, with 82.92 m3/h maximum airflow specified.	12	80x80x15	82.92	42.66	3.96	3800	41

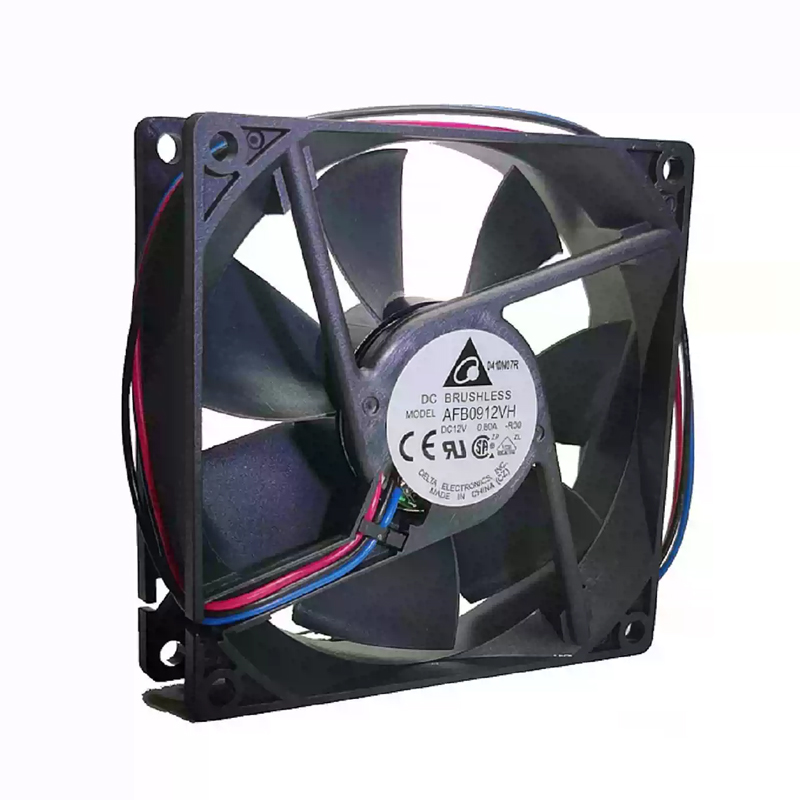

AFB0912VH-R00 \| Delta Electronics 12VDC 4.8W Axial Fan for Server and Power Supply Cooling AFB0912VH-R00 provides a suffix-specific 12VDC axial fan cooling option for server chassis. Rated dimensions are 92 x 92 x 25 mm; the listed 4.8 W input is relevant when budgeting power for multiple enclosure fans.	12	929225	115.26	75.2	4.8	3800	45
EFB0405LA-F00 \| Delta Electronics 5VDC 0.35W Axial Fan for Industrial Equipment Cooling A listed 0.35 W input is the standout selection point of EFB0405LA-F00 for industrial electronics. This 5VDC axial fan uses a 40 x 40 x 10 mm frame and a 4000 rpm rotor for its compact cooling format.	5	404010	6.358	-	0.35	4000	20.5

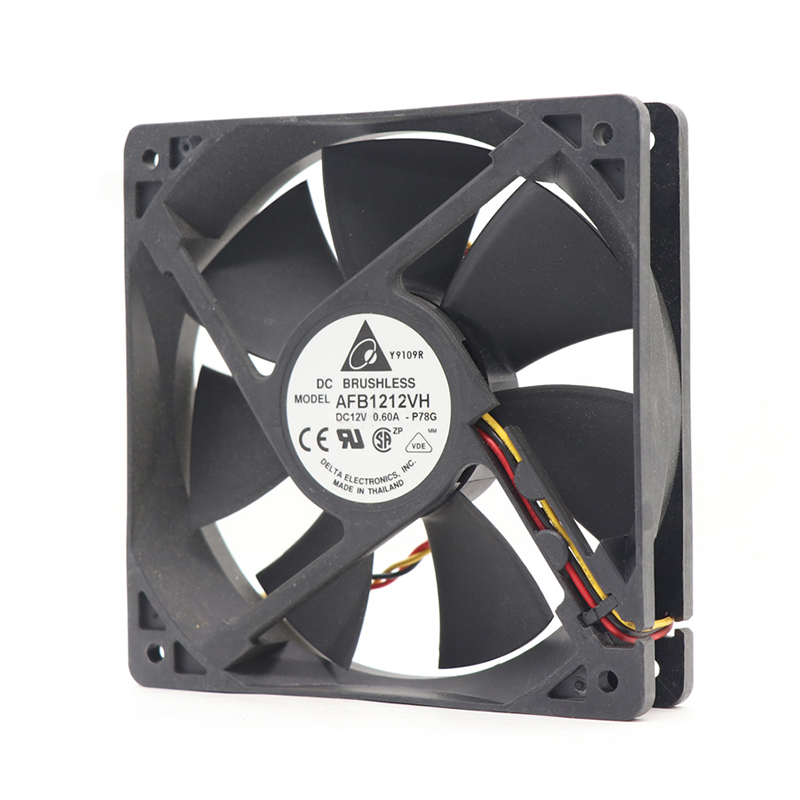

AFB1212VH \| Delta Electronics 12VDC 4.8W Axial Fan for Server and Power Supply Cooling AFB1212VH combines a 25 mm-deep, 120 mm axial fan frame with 12VDC operation for server and power-supply cooling. The model lists a 3100 rpm speed and 4.8 W input, offering a defined alternative to faster variants.	12	12012025	61	9	4.8	3100	44.5

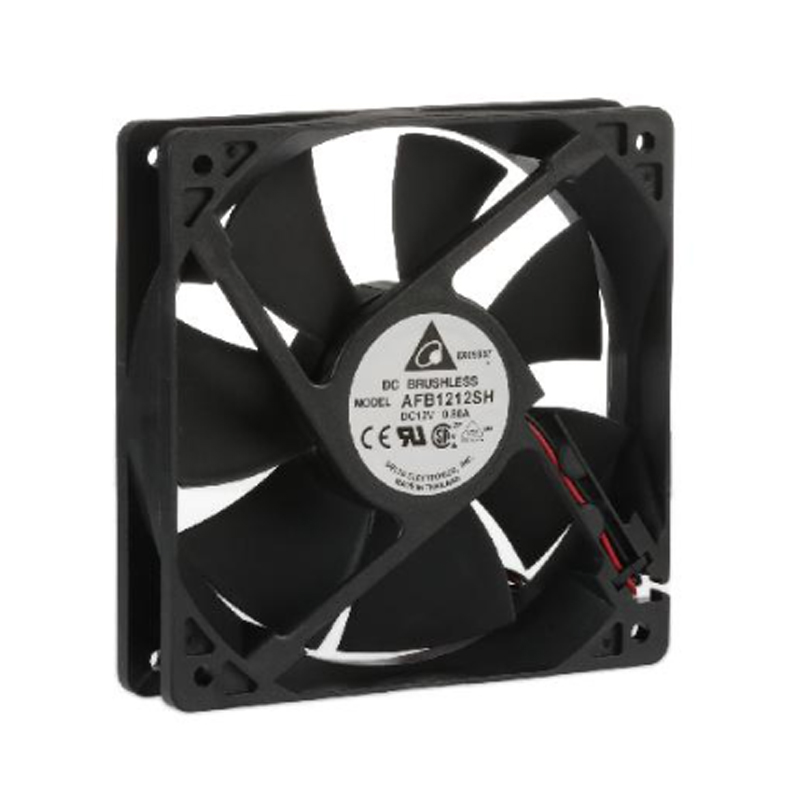

AFB1212SH \| Delta Electronics 12VDC 6.36W Axial Fan for Server and Power Supply Cooling AFB1212SH uses a 3400 rpm axial fan rotor for server and power-supply ventilation on 12VDC. Its 120 x 120 x 25 mm body and listed 6.36 W input distinguish its electrical and mechanical fit within the range.	12	12012025	66.5	11	6.36	3400	46.5
TFB0412EHN \| Delta Electronics 12VDC 8.64W DC Fan for Electronic Equipment Cooling TFB0412EHN is a 12VDC brushless fan for electronic equipment cooling, specified at 15000 rpm. A 40 x 40 x 28 mm envelope houses the assembly, with 44.251 m3/h listed maximum airflow and 8.64 W input.	12	404028	44.251	-	8.64	15000	58
FFB1424SHG \| Delta Electronics 24VDC 36W Axial Fan for Server and Telecommunications Cooling The FFB1424SHG offers a 139.7 x 139.7 x 50.8 mm axial fan assembly for server and telecom cooling. Rated for 24VDC, it lists 464 m3/h maximum airflow and 3600 rpm operation, with 36 W input power specified.	24	139.7×139.7×50.8	464	194.5	36	3600	61.7
FFB0824EHE-F00 \| Delta Electronics 24VDC 12W Axial Fan for Server and Telecom Cooling FFB0824EHE-F00 is a 24VDC axial fan for telecom and server enclosures with an 80 x 80 x 38 mm body. Its listed 202.31 Pa maximum static pressure and 5700 rpm speed define the specified airflow profile.	24	80x80x38	136.2	202.31	12	5700	52.5
FFB0812SH-F00 \| Delta Electronics 12VDC 6W Axial Fan for Server and Telecommunications Cooling FFB0812SH-F00 is a 12VDC axial fan for telecom equipment requiring an 80 mm footprint. The 25.4 mm profile is shallower than the 38 mm EHE format, while this model lists a 4500 rpm speed and 6 W electrical load.	12	80x80x25.4	113.88	97.58	6	4500	48.6

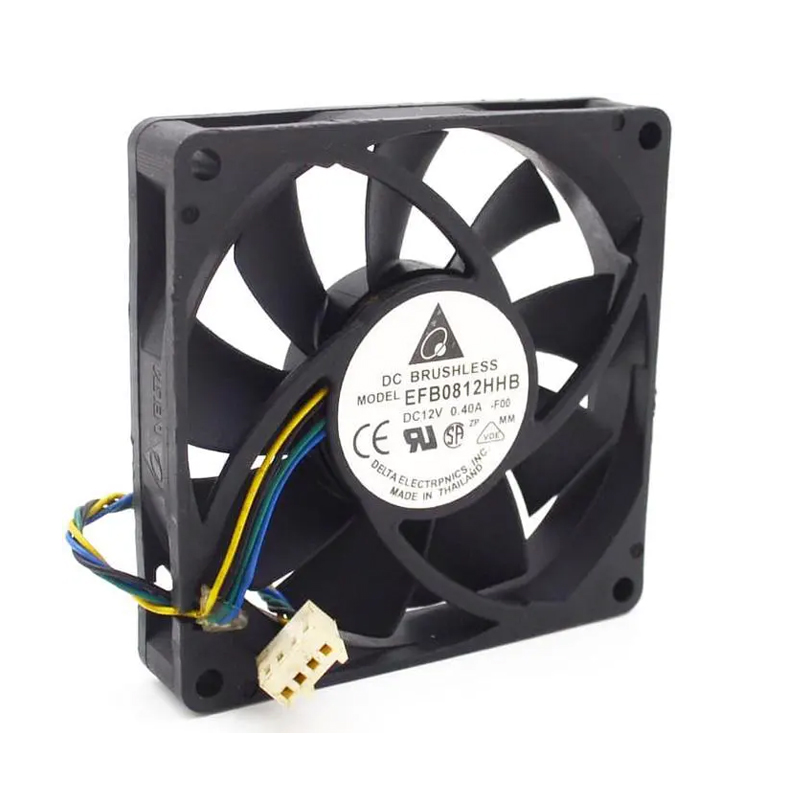

EFB0812HHB-F00 \| Delta Electronics 12VDC 3.96W Axial Fan for Industrial Equipment Cooling EFB0812HHB-F00 combines a 15 mm-deep, 80 mm square axial fan frame with 12VDC operation. Intended for industrial equipment cooling, it lists 82.2 m3/h maximum airflow and 3800 rpm speed, with 3.96 W input.	12	80×80×15.00	82.2	42.6	3.96	3800	41

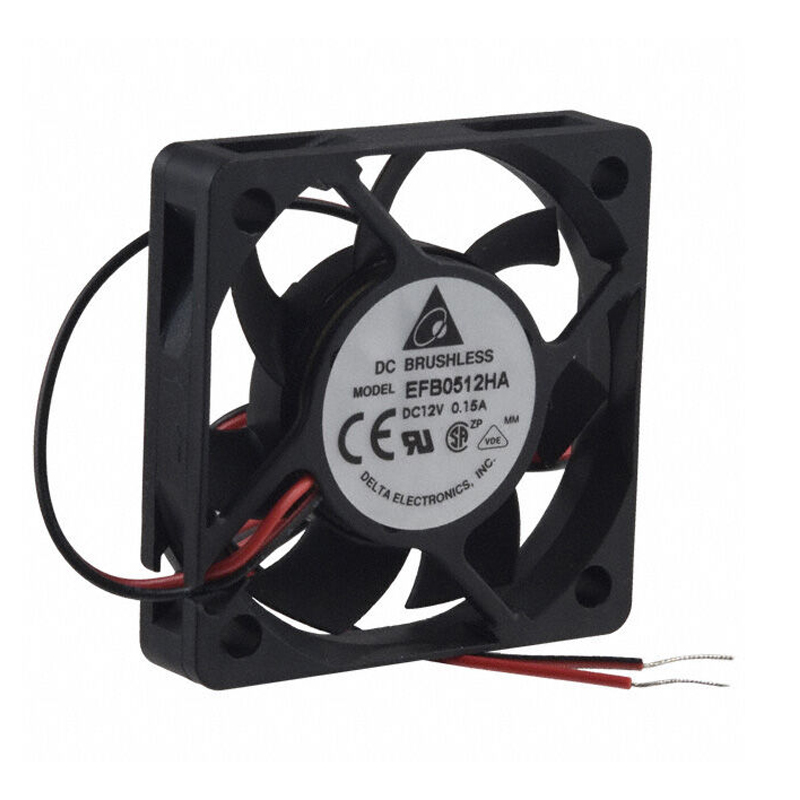

EFB0512HA \| Delta Electronics 12VDC 1.2W Axial Fan for Industrial Equipment Cooling EFB0512HA is a 12VDC axial fan with a 50 x 50 x 10 mm body for industrial electronics cooling. A listed 1.2 W input and 5500 rpm speed distinguish this shallow format, with 19.38 m3/h maximum airflow.	12	50x50x10	19.38	41.58	1.2	5500	30

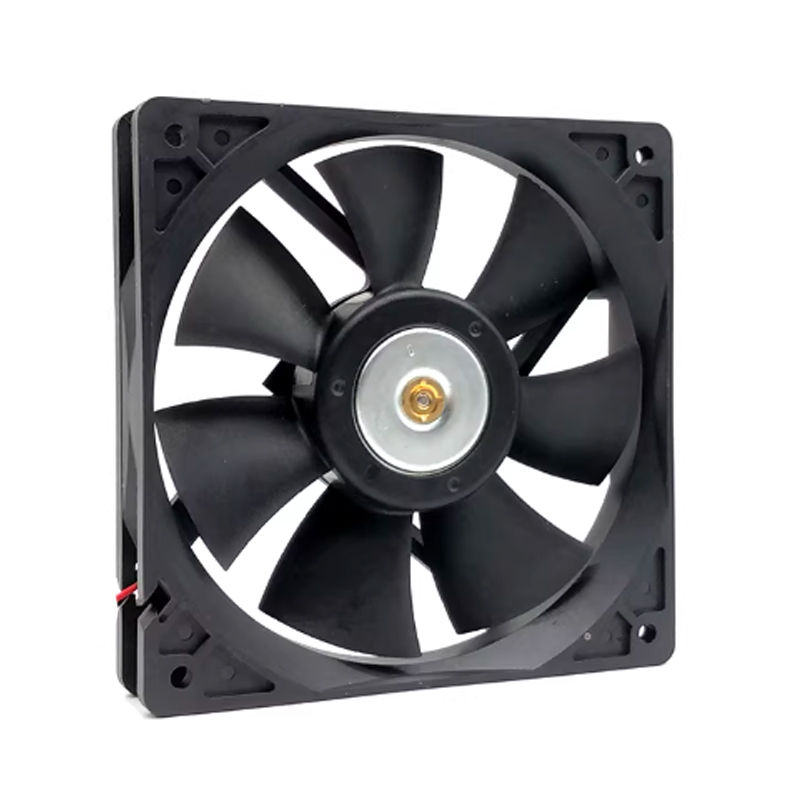

AFB1224H \| Delta Electronics 24VDC 3.36W Axial Fan for Server and Power Supply Cooling At a listed 2500 rpm, AFB1224H offers a different speed point for server and power-supply ventilation. This 24VDC axial fan uses a 120 x 120 x 25 mm frame, with 3.36 W input and 140.539 m3/h maximum airflow.	24	12012025	140.539	-	3.36	2500	38.5

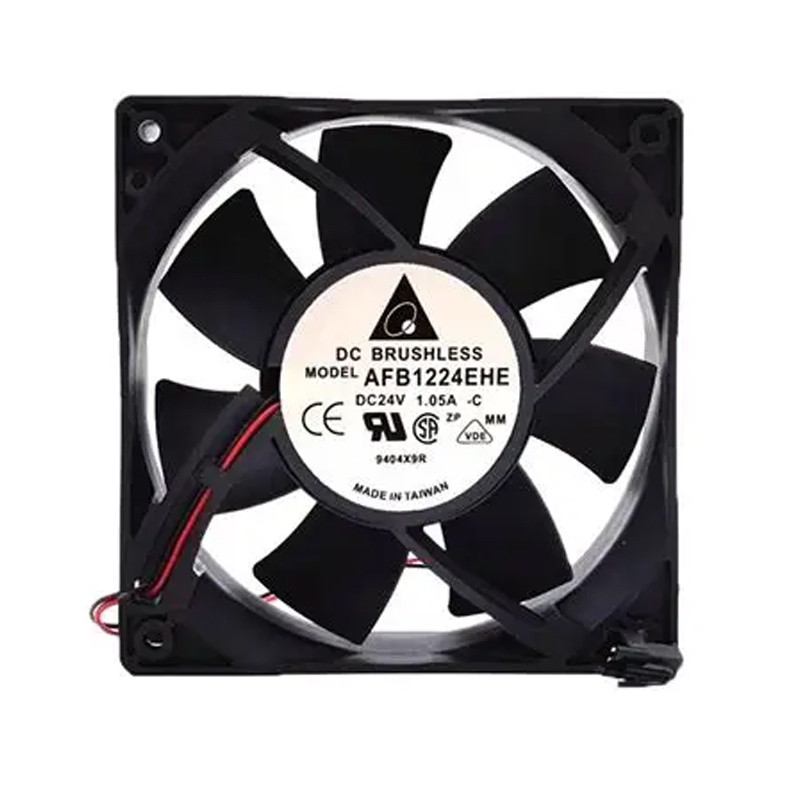

AFB1224EHE-C \| Delta Electronics 24VDC 20.4W Axial Fan for Server and Power Supply Cooling The 210.2 Pa maximum-pressure entry is a key reason to evaluate AFB1224EHE-C for power-supply ventilation. This 24VDC axial fan occupies a 120 x 120 x 38 mm space; final selection still depends on the duty point.	24	12012038	361.42	210.2	20.4	4600	58.5
AFB0624MB \| Delta Electronics 24VDC 1.44W Axial Fan for Server and Power Supply Cooling A 1.44 W input makes AFB0624MB a lower-input entry among the listed 24VDC axial fan fans. For server and power-supply ventilation, it provides a 60 x 60 x 15 mm format with a specified 4000 rpm rotor.	24	60x60x15	26.1	38.54	1.44	4000	32
AFB0612HH-A \| Delta Electronics 12VDC 2.04W Axial Fan for Server and Power Supply Cooling AFB0612HH-A combines a 5000 rpm rotor with a 12VDC axial fan motor for server and power-supply cooling. Its listed 2.04 W input and 74 Pa maximum static pressure accompany a 60 x 60 x 25.4 mm frame.	12	60×60×25.40	46.8	74	2.04	5000	40

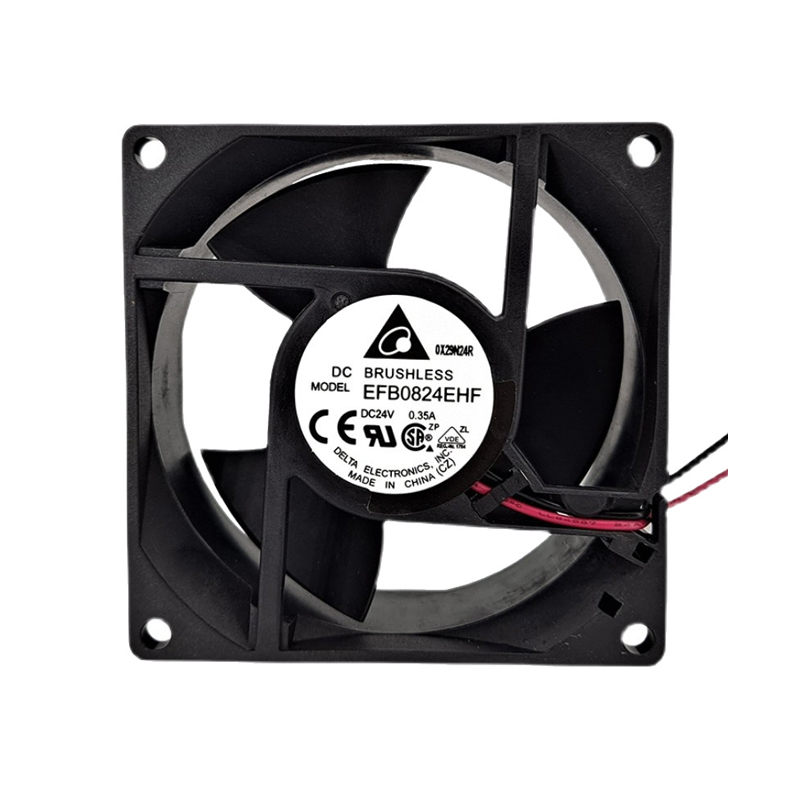

EFB0824EHF \| Delta Electronics 24VDC 5.52W Axial Fan for Industrial Equipment Cooling EFB0824EHF brings a 32 mm-deep axial format to industrial electronics cooling. This 24VDC fan measures 80 mm square and lists 5200 rpm operation, with 122.4 Pa maximum static pressure and 5.52 W input.	24	80×80×32	104.2	122.4	5.52	5200	48.5
BFB0712HH-A \| Delta Electronics 12VDC 4.08W Centrifugal Blower for Electronic Equipment Cooling The BFB0712HH-A centrifugal blower uses a 25 mm-deep body for electronic equipment and ducted local cooling. Rated for 12VDC, it lists 243.3 Pa maximum static pressure and 4400 rpm operation at 4.08 W input.	12	75.7×75.7×25.00	26	243.3	4.08	4400	51

显示

1-20

1-20 21-40 41-60 61-80 81-100 101-120 121-140 141-160 161-178

共 178 个

1 2 3 4 5 6 7 8 9

跳转页

关于直流风扇

直流风扇涵盖了所有采用直流电动机驱动的风扇类型，包括直流轴流风扇、直流离心风机以及各类微型紧凑型直流风扇。现代直流风扇市场主要由无刷直流（BLDC）技术主导。该技术采用电子换向，取代了机械电刷，与有刷直流方案相比，具有使用寿命更长、效率更高、运行更安静以及电磁干扰更低等优势。直流风扇是服务器和数据中心制冷（采用12V或48V直流供电）、通信设备（使用–48V直流电源）、汽车电子、便携式及电池供电设备，以及太阳能通风系统的首选技术。直流风扇相对于交流风扇的一个重要优势是原生支持PWM调速——这使系统设计人员能够实施智能热管理策略，根据实时温度数据动态调整散热能力。恒瑞备有来自EBM-PAPST、SUNON、三洋电机等全球领先品牌的全系列直流风扇库存，并提供规格选型及替代型号对照的全方位技术支持。

如何选择合适的直流风扇

选择合适的直流风扇，应从工作点出发而不是从型号名称出发。先确定您实际需要的风量（CFM 或 m³/h）以及风机需要克服的静压，再寻找性能曲线能以一定裕量穿过该工作点的机型，而不是刚好压在曲线边缘的产品。

电气细节要尽早确认。DC 风机通常采用 12/24/48 V 供电，易于与控制板集成；AC 风机适合 115/230 V 定速安装场合。如果风量需要随负载变化，请选择支持 PWM 或模拟量控制的 EC 技术；在需要状态监控的场合，测速输出可以让控制器及时发现风机故障。

下一步是环境与认证。根据粉尘和潮湿暴露程度匹配 IP 防护等级，凡在高温、立式或全天候连续运行的场合，优先选择滚珠轴承，并对照目标市场确认 UL、CE、RoHS 等认证。尽早以 dBA 设定声学限值，可以避免第一台样机噪声过大时的后期返工。

最后，请从整体供货风险而非单纯价格来比较候选型号：确认所需数量的现货情况，核实后续批次的交期，并在确认前索取规格书和尺寸图。报价前，我们的团队会为您交叉核对曲线、尺寸和电气参数该分类目前有 178 件产品可供对比。

直流风扇的典型应用场景与案例

直流风扇几乎出现在所有需要可靠排热或换气的行业。典型环境包括机房与数据中心、制冷冷凝器与冷库蒸发器、暖通空调组合式空调机组、通信机柜、医疗与实验室设备、焊接与数控机床机壳，以及新能源电力柜。在这些场景中，风机都是关键部件：一旦故障就意味着停产、货物受损或代价高昂的紧急停机。

一个反复出现的场景来自控制柜改造：原装风机已停产，安装孔位不能改动，停机时间以小时计。我们按机壳尺寸、风量和噪音将旧型号与在产系列逐一比对，提出最接近的直接替换方案，并随货附上规格书，让电工无需重新设计即可接线。

对冷库运营方来说，痛点很直接：蒸发器或冷凝器风机故障必须立即更换，而不是等六周的进口周期。将叶轮直径、转速和防护等级与现货等效型号逐一比对，我们能在几天内恢复制冷能力——备件替换供应也因此成为我们在该分类下的核心业务。

无论项目是全新设备还是在用 Delta 机组的替换，流程都一样：把工作点和约束条件发给我们，我们回报经过验证的选型结果，并附规格书、性能曲线和明确的交期。

直流风扇采购常见问题解答

是否支持直流风扇的定制或 OEM 版本？

可以。除标准目录型号外，我们可以洽谈修改引线、接口、调速曲线、IP 防护升级或 OEM 贴牌包装等方案。定制通常从约定的年用量起步；我们的工程师会先评审您的需求，并在任何承诺之前确认可行性、模具费用和交期。

贵司提供怎样的质保和售后支持？

每台机组均享受制造商针对材料和工艺缺陷的质保，索赔全程由我们协助处理，您只需对接一家供应商，无需跨国追查工厂。如在使用中出现故障，请提供序列号、运行工况和照片，我们将按报价约定的方式安排更换或退款。

采购前能提供哪些技术资料？

下单前可按需提供规格书、性能曲线、尺寸图和认证文件（视适用情况提供 UL、CE、RoHS）——我们始终认为，采购订单应建立在经过验证的选型之上，而不是取代选型。对于项目投标，我们还可以提供产品对比表，把候选型号按您关注的参数逐项并列呈现。
