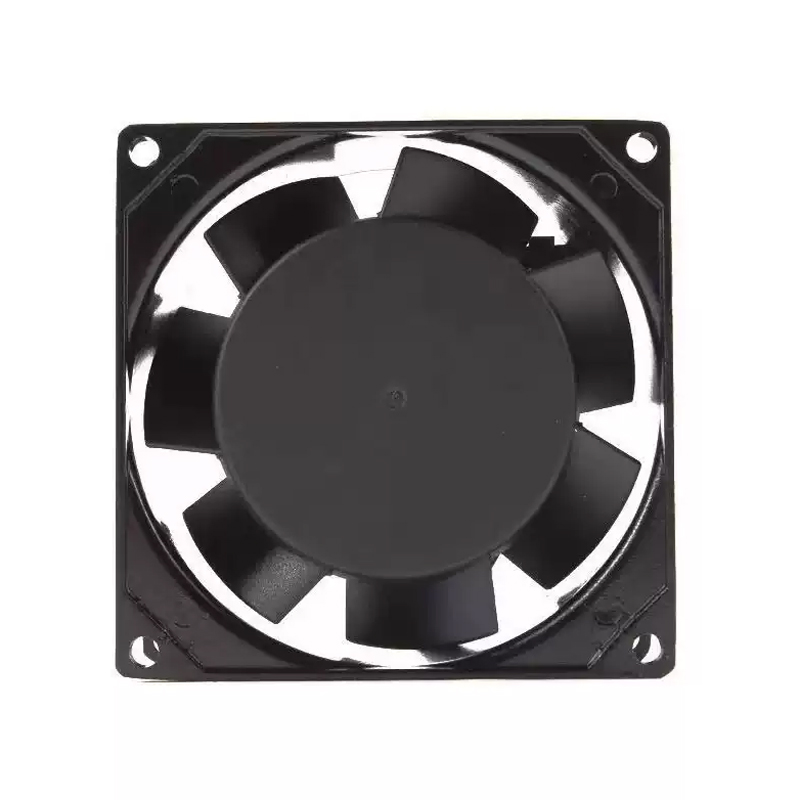

SF23080A2083HBL.GN SUNON 轴流风机

品牌：: SUNON

型号：: SF23080A2083HBL.GN | SUNON 220/240V 13.5W 80x80x38mm 2850rpm AC Axial Fan for HVAC & Ventilation

类型：: 轴流风机

应用行业：: 暖通空调与通风

产品描述：: Built around commercial refrigeration and refrigerator cooling, SUNON SF23080A2083HBL.GN is a 220/240 VAC AC axial fan in a 80 × 80 × 38 mm frame. Its 2850 rpm rating defines a lower-speed operating point. The recorded model record should guide procurement comparison. Use the latest specification for frequency and tolerance limits.

规格书：: SF23080A2083HBL.GN | SUNON 220/240V 13.5W 80x80x38mm 2850rpm AC Axial Fan for HVAC & Ventilation 规格书 (Pdf)

产品特点

Rated Voltage(V)	220/240
Size(mm)	808038
Max.Air Flow(m³/h)	52.7
Max.Pressure(Pa)	47.3
Input Power(W)	13.5
Speed(rpm)	2850
Noise(db)	36.5

产品特点

Reliable Fan Cooling

SUNON SF23080A2083HBL.GN is an AC axial fan for HVAC and ventilation equipment. It establishes forced airflow where passive cooling cannot adequately protect heat-producing assemblies.

The AC motor format supports direct integration with the stated supply, while the exact bearing, frequency and protection configuration remain tied to the complete part number. Acoustic performance depends on the enclosure and operating point; low-turbulence integration helps avoid additional airflow noise.

The final SF23080A2083HBL.GN selection should consider connector reach as part of the installation layout. Finishing maintenance planning before ordering helps reduce integration uncertainty and supports reliable equipment cooling. Confirm that the mating lead reaches without tension or sharp bending.

应用行业

HVAC Equipment

SUNON SF23080A2083HBL.GN serves HVAC equipment. Airflow around control and heat-exchange sections helps address continuous heating and cooling loads. The fan gives OEM equipment a defined air route and supports stable air-conditioning operation. It supports reliable equipment cooling.

Ventilation Systems

SUNON SF23080A2083HBL.GN serves industrial ventilation systems. Airflow around equipment air passages and thermal assemblies helps address continuous airflow demand. The fan gives OEM equipment a defined air route and supports controlled air circulation.

Heat Exchangers

SUNON SF23080A2083HBL.GN serves heat-exchange equipment. Airflow around coil and exchanger surfaces helps address transferred thermal energy. The fan gives OEM equipment a defined air route and supports effective heat rejection. It supports reliable equipment cooling.

常见问题

How can SF23080A2083HBL.GN affect operating cost?

Compare its listed 13.5 W input with the required airflow and run time. Total savings depend on the complete system duty point.

What speed is listed for SF23080A2083HBL.GN?

The listed speed is 2850 rpm. Confirm frequency, control method, and duty point for the installed system.

What should be checked if SF23080A2083HBL.GN stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What bearing information is confirmed for SF23080A2083HBL.GN?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

What input power is listed for SF23080A2083HBL.GN?

The worksheet lists 13.5 W input. Check supply capacity and operating conditions before commissioning.
