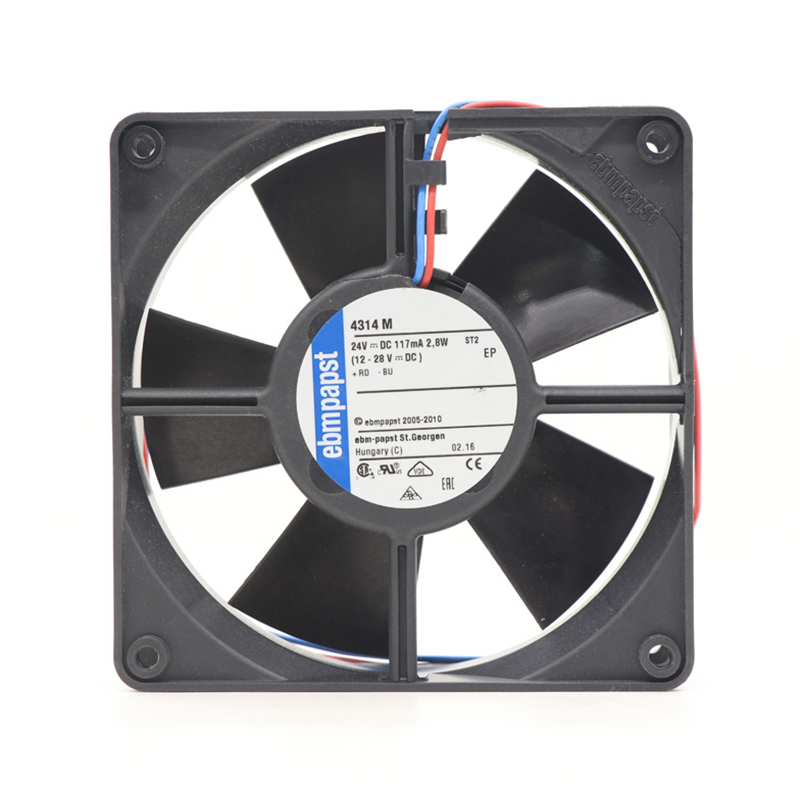

4314M ebm-papst 紧凑型风扇

品牌：: ebmpapst

型号：: 4314M | ebm-papst 24V 2.8W DC Axial Fan for Electronics Cooling

类型：: 紧凑型风扇

应用行业：: 自动化

产品描述：: The ebm-papst 4314M is a high-performance dc axial fan engineered for electronics and industrial equipment. It provides reliable airflow and efficient thermal management for demanding equipment.

规格书：: 4314M | ebm-papst 24V 2.8W DC Axial Fan for Electronics Cooling 规格书 (Pdf)

产品特点

Rated Voltage(V)	24
Size(mm)	11911932
Max.Air Flow(m³/h)	138
Input Power(W)	2.8
Speed(rpm)	2300

产品特点

Compact Airflow

The ebmpapst 4314M is a compact DC axial cooling fan intended for industrial automation and electronic equipment. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 24 V supply, and airflow up to 138 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. The datasheet identifies ball-bearing motor support for durable motor support. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 4314M suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

应用行业

Automation Cooling

4314M Supports reliable heat removal in automation controllers, machine electronics and compact industrial control equipment.

产品资讯

Other Series Comparison — 4314M vs Variants

4314M 与 Other 系列相近型号的参数对比如下：

型号	252H	255M	3214J/2N-335	3214JH4
风量	5 m³/h	2 m³/h	130 m³/h	285 m³/h
功率	0.7 W	0.2 W	6.5 W	50 W
噪音	— dB	5 dB	— dB	— dB
尺寸	25258 mm	25258 mm	929238 mm	929238 mm

恒瑞宏盛供应的 Other 系列风机均附带性能曲线、安装说明和原厂质保。如需项目定制选型，请联系我们。

Typical Applications — 4314M Other Fan

Condenser Cooling: The 4314M axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

常见问题

Is the 4314M listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.

How should the 4314M be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.

What is the rated voltage of the ebmpapst 4314M?

The product data lists a rated voltage of 24 V. Match the supply before wiring.
