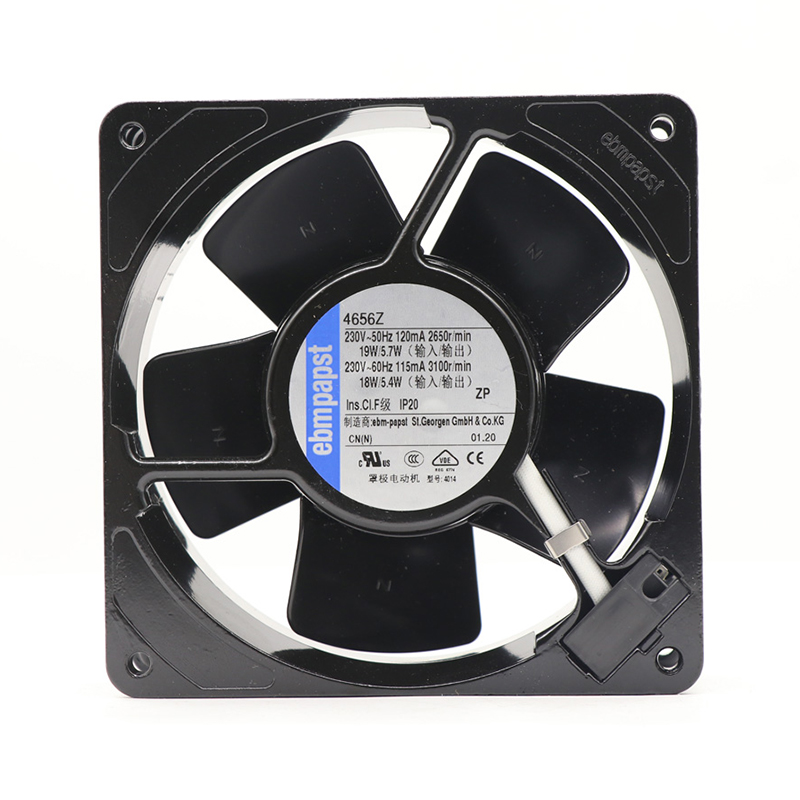

4656Z | ebm-papst 230V 18W AC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 4656Z | ebm-papst 230V 18W AC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 4656Z is a high-performance ac axial fan engineered for control cabinets. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: 4656Z | ebm-papst 230V 18W AC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	11911938
Max.Air Flow(m³/h)	160
Max.Pressure(Pa)	70
Input Power(W)	18
Speed(rpm)	3100
Noise(db)	40

Product Features

Compact Airflow

Designed as a compact axial cooling fan, the ebmpapst 4656Z supports thermal management in control cabinets and enclosed electronics. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 230 V supply, airflow up to 160 m³/h, and maximum pressure of 70 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support and an aluminum housing for durable motor support. Listed noise is 40 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 4656Z suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Cabinet Ventilation

4656Z Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Frequently Asked Questions

What are the dimensions of the 4656Z?

The listed size is 119*119*38 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 4656Z?

The product data lists airflow up to 160 m³/h, speed 3100 RPM, pressure up to 70 Pa; confirm the required operating point.
