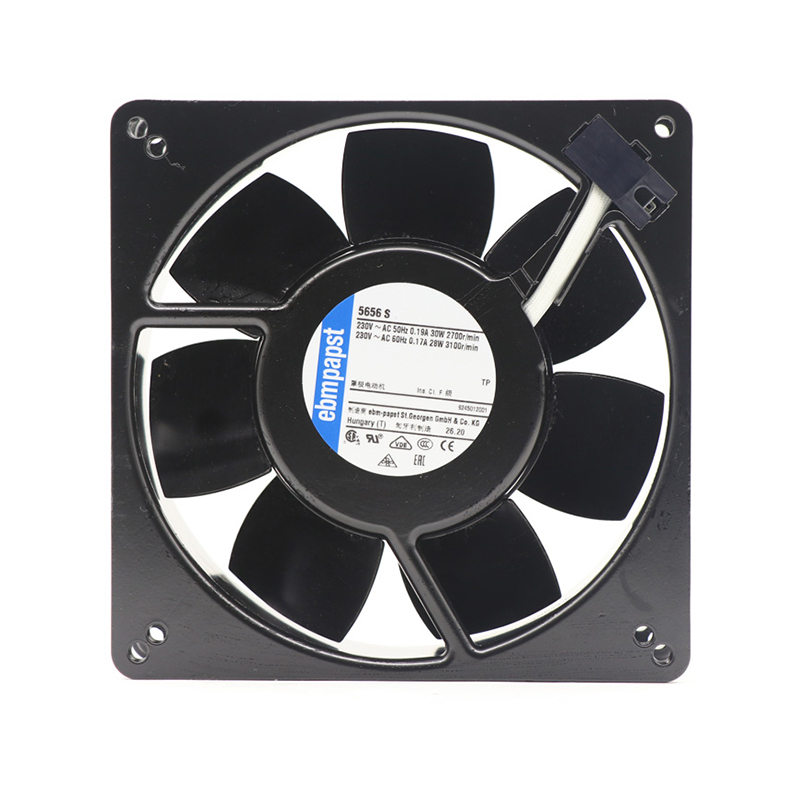

5656S | ebm-papst 230V 30W AC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 5656S | ebm-papst 230V 30W AC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 5656S is a high-performance ac axial fan engineered for control cabinets and enclosures. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 5656S | ebm-papst 230V 30W AC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	13513538
Max.Air Flow(m³/h)	240
Input Power(W)	30
Speed(rpm)	2700

Product Features

High Airflow Cooling

The ebmpapst 5656S is a compact axial cooling fan intended for control cabinets and enclosed electronics, equipment enclosures. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 230 V supply, and airflow up to 240 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. Its integrated frame, impeller and motor support stable ventilation. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Cabinet Ventilation

5656S Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Enclosure Cooling

5656S Provides compact forced-air cooling for equipment enclosures where internal electronics require a defined ventilation path.

Frequently Asked Questions

What is the rated voltage of the ebmpapst 5656S?

The product data lists a rated voltage of 230 V. Match the supply before wiring.

What are the dimensions of the 5656S?

The listed size is 135*135*38 mm. Confirm mounting holes and available clearance before replacement.
