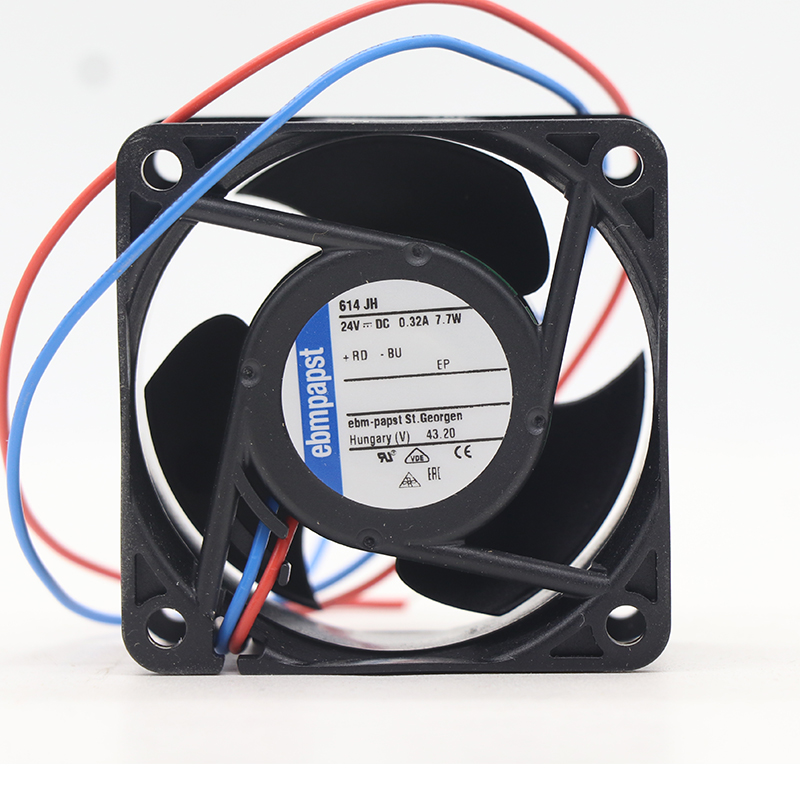

614JH | ebm-papst 24V 7.7W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 614JH | ebm-papst 24V 7.7W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 614JH is a high-performance dc axial fan engineered for control cabinets and enclosures. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 614JH | ebm-papst 24V 7.7W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	606032
Max.Air Flow(m³/h)	70
Max.Pressure(Pa)	560
Input Power(W)	7.7
Speed(rpm)	11700
Noise(db)	53

Product Features

High Static Cooling

The ebmpapst 614JH is a compact DC axial cooling fan for control cabinets and enclosed electronics, equipment enclosures. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, airflow up to 70 m³/h, and maximum pressure of 560 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support and fiberglass-reinforced plastic components for durable motor support. Listed noise is 53 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

OEM buyers and automation engineers can consider the 614JH for space-conscious cooling. Confirm airflow demand, wiring, mounting and temperature limits before design-in. Proper installation supports stable thermal control and long fan life.

Application Industry

Cabinet Ventilation

614JH Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Enclosure Cooling

614JH Provides compact forced-air cooling for equipment enclosures where internal electronics require a defined ventilation path.

Frequently Asked Questions

What power or noise data is available for the 614JH?

The listed values are input power 7.7 W, noise 53 dB. Use the exact model data for selection.

Is the 614JH compatible with my equipment?

Compare 24 V, 60*60*32 mm, airflow demand and connection details with your equipment.
