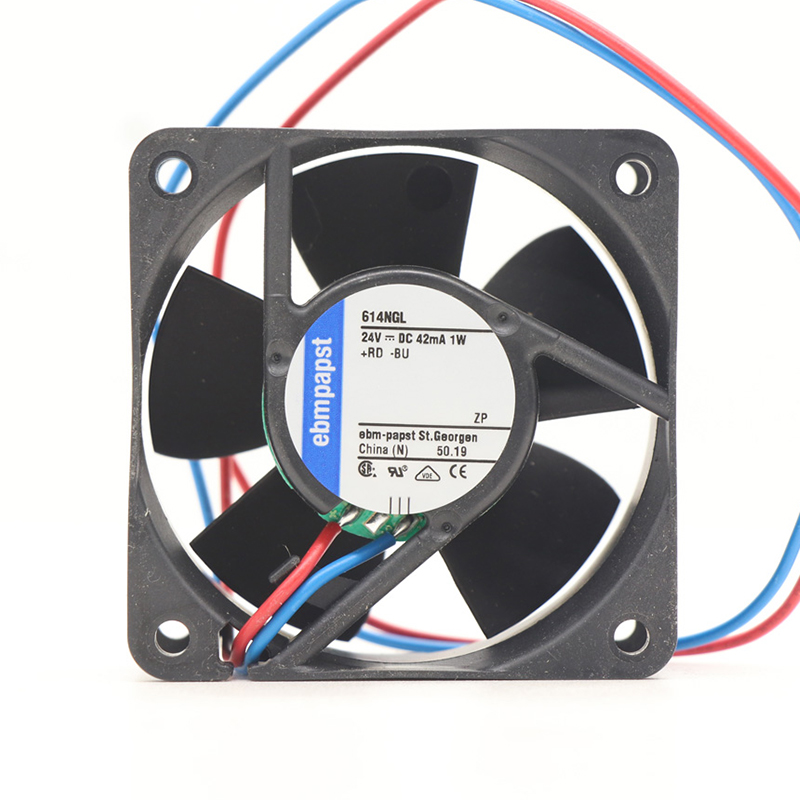

614NGL | ebm-papst 24V 1W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 614NGL | ebm-papst 24V 1W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 614NGL is a high-performance dc axial fan engineered for variable-frequency drives. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: 614NGL | ebm-papst 24V 1W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	19
Input Power(W)	1
Speed(rpm)	2550

Product Features

Compact Airflow

The ebmpapst 614NGL is a compact DC axial cooling fan intended for variable-frequency drives, medical equipment. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 24 V supply, and airflow up to 19 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. The datasheet identifies ball-bearing motor support and fiberglass-reinforced plastic components for durable motor support. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 614NGL suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Drive System Cooling

614NGL Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Medical Equipment

614NGL Provides controlled ventilation for medical equipment assemblies where compact size and stable thermal management are important.

Frequently Asked Questions

What are the dimensions of the 614NGL?

The listed size is 60*60*25 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 614NGL?

The product data lists airflow up to 19 m³/h, speed 2550 RPM; confirm the required operating point.
