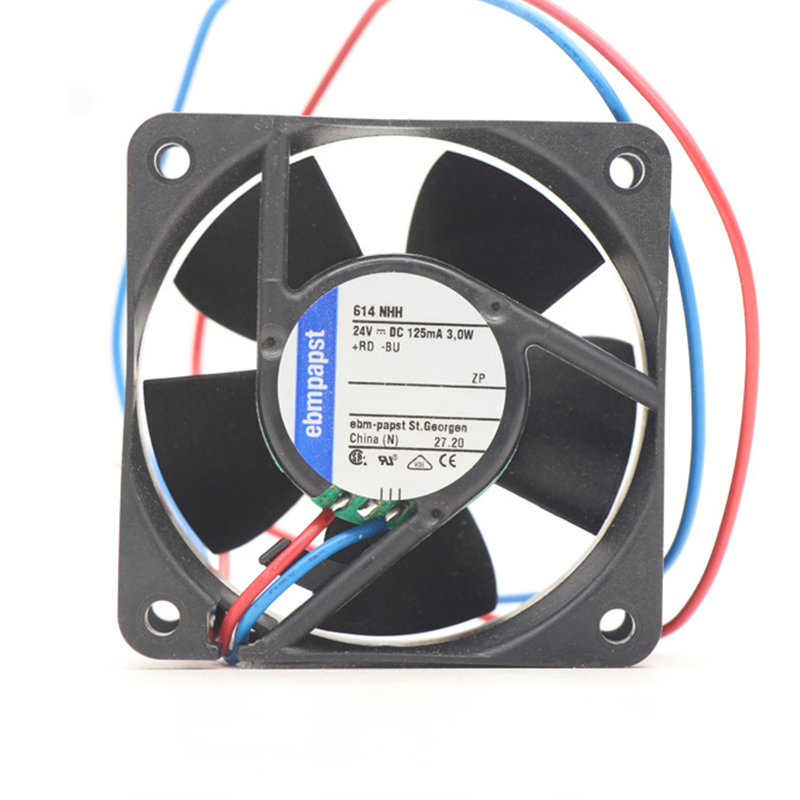

614NHH | ebm-papst 24V 3W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 614NHH | ebm-papst 24V 3W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 614NHH is a high-performance dc axial fan engineered for drive modules. It provides efficient airflow, stable thermal management and dependable operation in space-constrained equipment.

Datasheet:: 614NHH | ebm-papst 24V 3W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	54
Input Power(W)	3
Speed(rpm)	6850

Product Features

Compact Airflow

The ebmpapst 614NHH is a compact DC axial cooling fan for drive modules. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, and airflow up to 54 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. Its integrated frame, impeller and motor support stable ventilation. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 614NHH suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Automation Cooling

614NHH Supports reliable heat removal in automation controllers, machine electronics and compact industrial control equipment.

Frequently Asked Questions

How should the 614NHH be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.

What is the rated voltage of the ebmpapst 614NHH?

The product data lists a rated voltage of 24 V. Match the supply before wiring.

What are the dimensions of the 614NHH?

The listed size is 60*60*25 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 614NHH?

The product data lists airflow up to 54 m³/h, speed 6850 RPM; confirm the required operating point.
