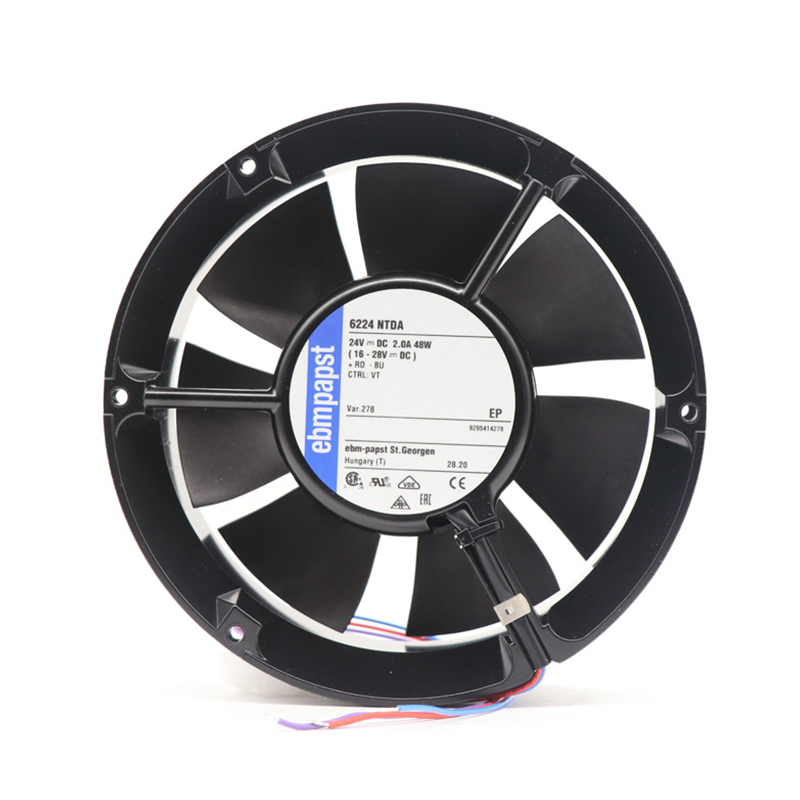

6224NTDA | ebm-papst 24V 48W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 6224NTDA | ebm-papst 24V 48W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 6224NTDA is a high-performance dc axial fan engineered for control cabinets. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: 6224NTDA | ebm-papst 24V 48W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	172φ*51
Max.Air Flow(m³/h)	600
Max.Pressure(Pa)	400
Input Power(W)	48
Speed(rpm)	5100
Noise(db)	65

Product Features

High Static Cooling

The ebmpapst 6224NTDA is a compact DC axial cooling fan intended for industrial automation and electronic equipment. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 24 V supply, airflow up to 600 m³/h, and maximum pressure of 400 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support and an aluminum housing for durable motor support. Listed noise is 65 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 6224NTDA suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Automation Cooling

6224NTDA Supports reliable heat removal in automation controllers, machine electronics and compact industrial control equipment.

Frequently Asked Questions

Is the 6224NTDA compatible with my equipment?

Compare 24 V, 172φ*51 mm, airflow demand and connection details with your equipment.

Where can the 6224NTDA be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.

Is the 6224NTDA listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.

How should the 6224NTDA be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.
