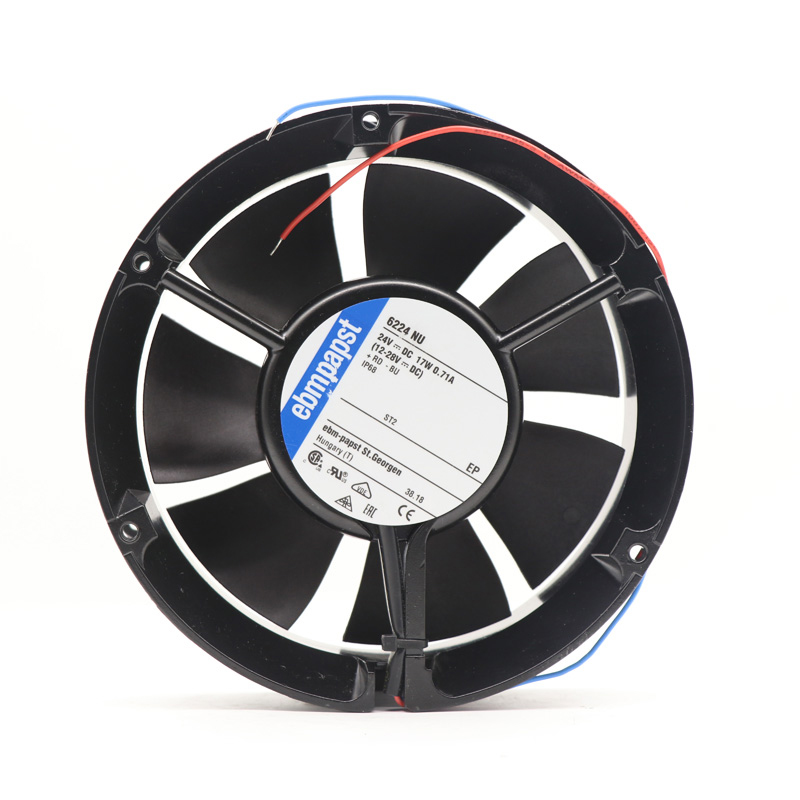

6224NU | ebm-papst 24V 15.6W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 6224NU | ebm-papst 24V 15.6W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 6224NU is a high-performance dc axial fan engineered for control cabinets and enclosures. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 6224NU | ebm-papst 24V 15.6W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	φ172*51
Max.Air Flow(m³/h)	390
Max.Pressure(Pa)	180
Input Power(W)	15.6
Speed(rpm)	3400

Product Features

High Airflow Cooling

The ebmpapst 6224NU is a compact DC axial cooling fan intended for control cabinets and enclosed electronics. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 24 V supply, airflow up to 390 m³/h, and maximum pressure of 180 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support for durable motor support. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 6224NU suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Cabinet Ventilation

6224NU Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Frequently Asked Questions

Where can the 6224NU be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.

Is the 6224NU listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.
