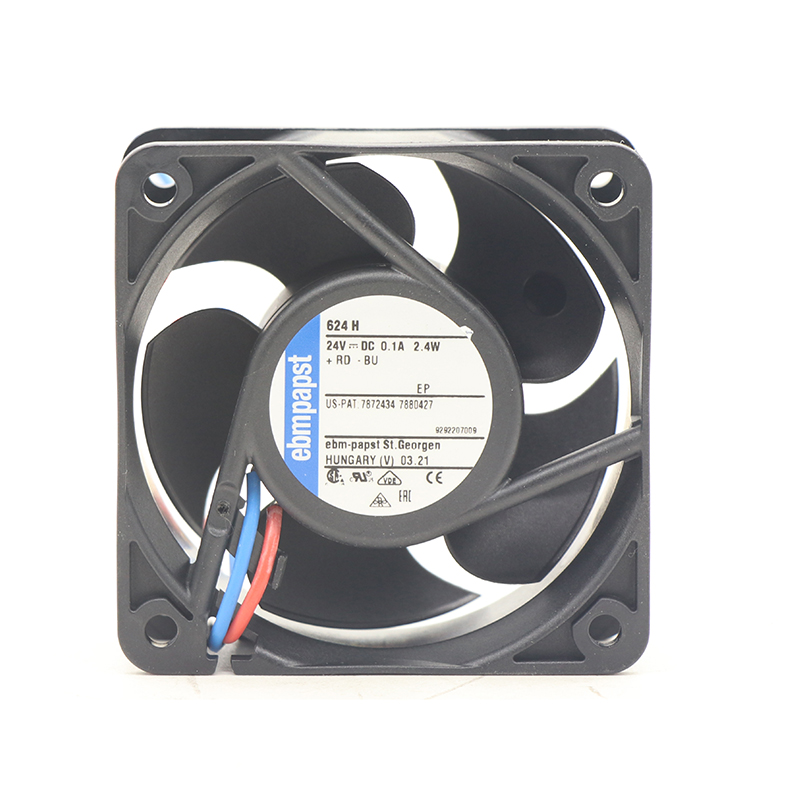

624H ebm-papst 紧凑型风扇

品牌：: ebmpapst

型号：: 624H | ebm-papst 24V 2.4W DC Axial Fan for Electronics Cooling

类型：: 紧凑型风扇

应用行业：: 自动化

产品描述：: The ebm-papst 624H is a high-performance dc axial fan engineered for power supplies and power modules. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

规格书：: 624H | ebm-papst 24V 2.4W DC Axial Fan for Electronics Cooling 规格书 (Pdf)

产品特点

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	46
Max.Pressure(Pa)	90
Input Power(W)	2.4
Speed(rpm)	6850
Noise(db)	39

产品特点

Compact Airflow

The ebmpapst 624H is a compact DC axial cooling fan for power supplies and power modules. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, airflow up to 46 m³/h, and maximum pressure of 90 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support and fiberglass-reinforced plastic components for durable motor support. Listed noise is 39 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

应用行业

Power Module Cooling

624H Delivers focused ventilation for power supplies and power modules used in compact electronic and automation assemblies.

产品资讯

Other Series Comparison — 624H vs Variants

624H 与 Other 系列相近型号的参数对比如下：

型号	252H	255M	3214J/2N-335	3214JH4
风量	5 m³/h	2 m³/h	130 m³/h	285 m³/h
功率	0.7 W	0.2 W	6.5 W	50 W
噪音	— dB	5 dB	— dB	— dB
尺寸	25258 mm	25258 mm	929238 mm	929238 mm

恒瑞宏盛供应的 Other 系列风机均附带性能曲线、安装说明和原厂质保。如需项目定制选型，请联系我们。

Typical Applications — 624H Other Fan

Condenser Cooling: The 624H axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

常见问题

How should the 624H be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.

What is the rated voltage of the ebmpapst 624H?

The product data lists a rated voltage of 24 V. Match the supply before wiring.
