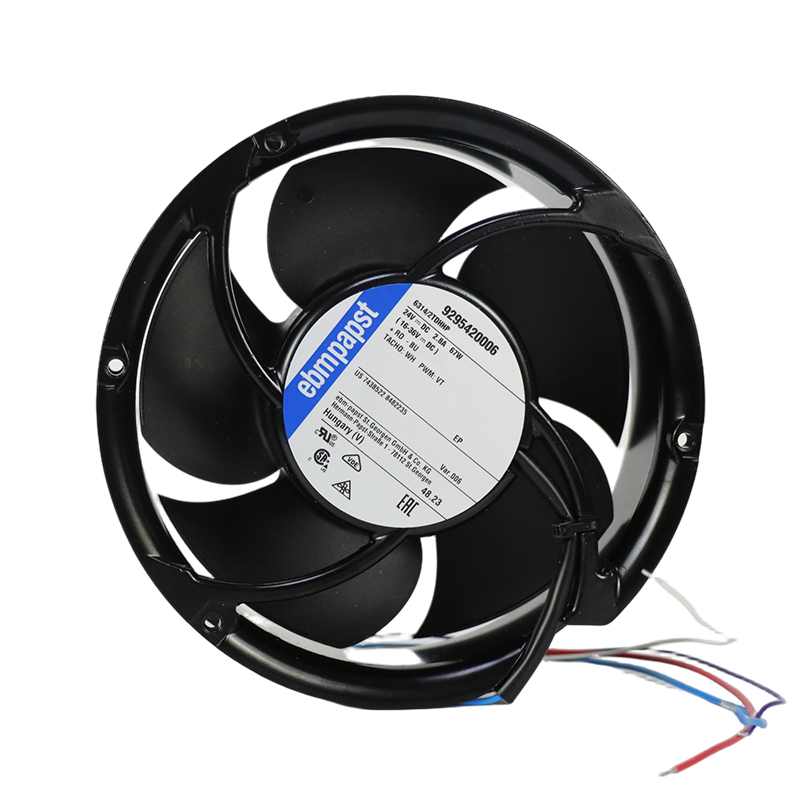

6314/2TDHHP | ebm-papst 48V 67W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 6314/2TDHHP | ebm-papst 48V 67W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 6314/2TDHHP is a high-performance dc axial fan engineered for control cabinets and enclosures. It provides reliable airflow and efficient thermal management for demanding equipment.

Datasheet:: 6314/2TDHHP | ebm-papst 48V 67W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	48
Size(mm)	φ172*51
Max.Air Flow(m³/h)	710
Input Power(W)	67
Speed(rpm)	7000
Noise(db)	69

Product Features

High Airflow Cooling

The ebmpapst 6314/2TDHHP is a compact DC axial cooling fan intended for control cabinets and enclosed electronics. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 48 V supply, and airflow up to 710 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. The datasheet identifies ball-bearing motor support and fiberglass-reinforced plastic components for durable motor support. Listed noise is 69 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Cabinet Ventilation

6314/2TDHHP Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Frequently Asked Questions

Where can the 6314/2TDHHP be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.

Is the 6314/2TDHHP listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.
