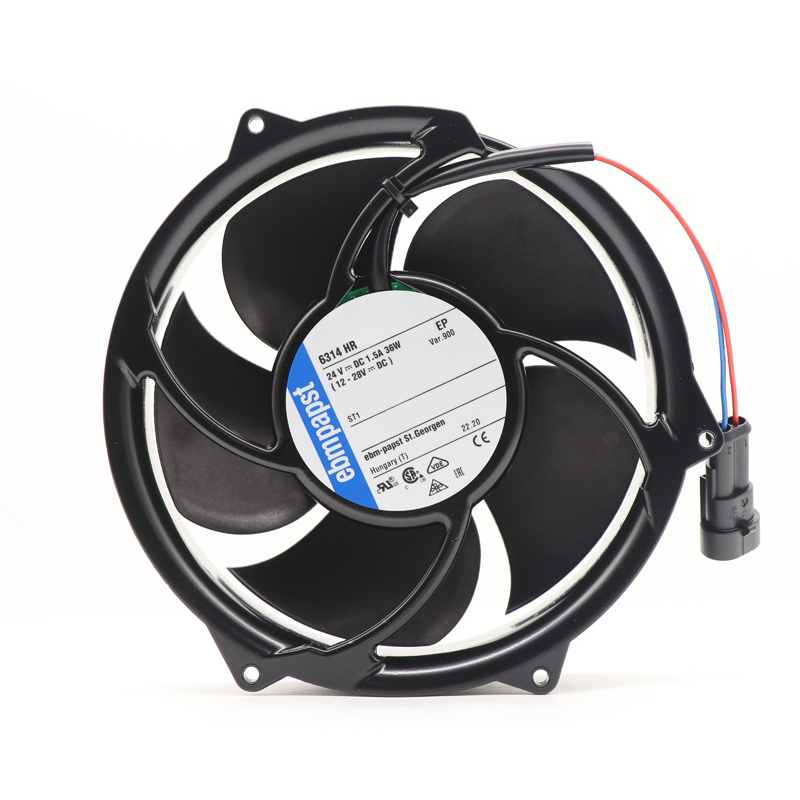

6314HR-900 | ebm-papst 24V 36W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 6314HR-900 | ebm-papst 24V 36W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 6314HR-900 is a high-performance dc axial fan engineered for variable-frequency drives. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 6314HR-900 | ebm-papst 24V 36W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	172φ*51
Max.Air Flow(m³/h)	550
Input Power(W)	36
Speed(rpm)	5300

Product Features

High Airflow Cooling

The ebmpapst 6314HR-900 is a compact DC axial cooling fan for variable-frequency drives. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, and airflow up to 550 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. Its integrated frame, impeller and motor support stable ventilation. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 6314HR-900 suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Drive System Cooling

6314HR-900 Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Frequently Asked Questions

Is the 6314HR-900 compatible with my equipment?

Compare 24 V, 172φ*51 mm, airflow demand and connection details with your equipment.

Where can the 6314HR-900 be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.

Is the 6314HR-900 listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.

How should the 6314HR-900 be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.
