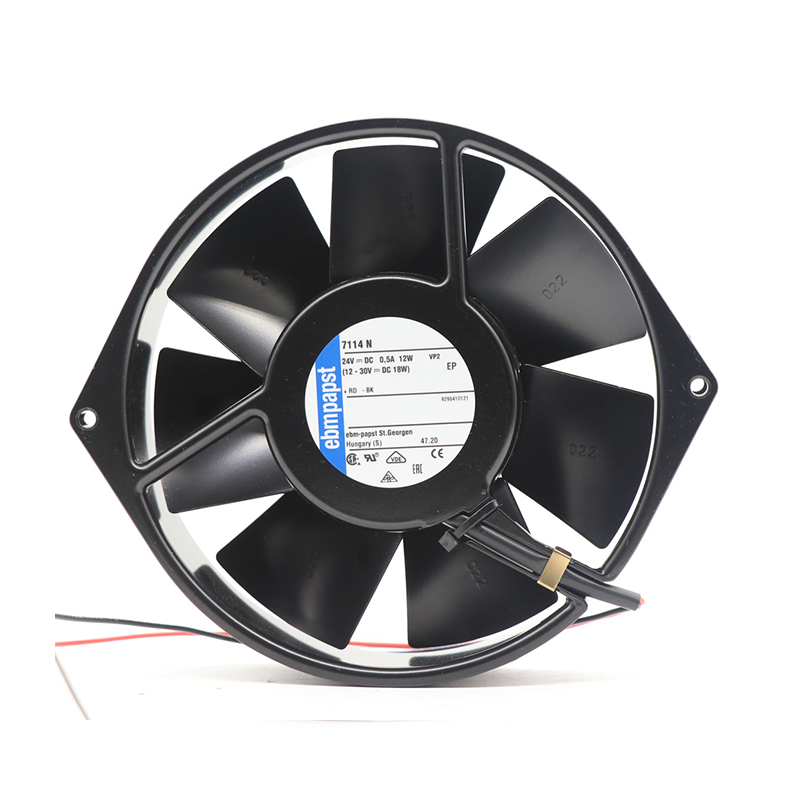

7114N | ebm-papst 24V 12W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 7114N | ebm-papst 24V 12W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 7114N is a high-performance dc axial fan engineered for control cabinets and enclosures. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 7114N | ebm-papst 24V 12W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	17215038
Max.Air Flow(m³/h)	308
Input Power(W)	12
Speed(rpm)	2850

Product Features

High Airflow Cooling

The ebmpapst 7114N is a compact DC axial cooling fan intended for control cabinets and enclosed electronics. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 24 V supply, and airflow up to 308 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. Its integrated frame, impeller and motor support stable ventilation. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 7114N suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Cabinet Ventilation

7114N Supports continuous air exchange in control cabinets, helping manage localized heat around drives, controllers and power devices.

Frequently Asked Questions

What is the rated voltage of the ebmpapst 7114N?

The product data lists a rated voltage of 24 V. Match the supply before wiring.

What are the dimensions of the 7114N?

The listed size is 172*150*38 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 7114N?

The product data lists airflow up to 308 m³/h, speed 2850 RPM; confirm the required operating point.

What power or noise data is available for the 7114N?

The listed values are input power 12 W. Use the exact model data for selection.
