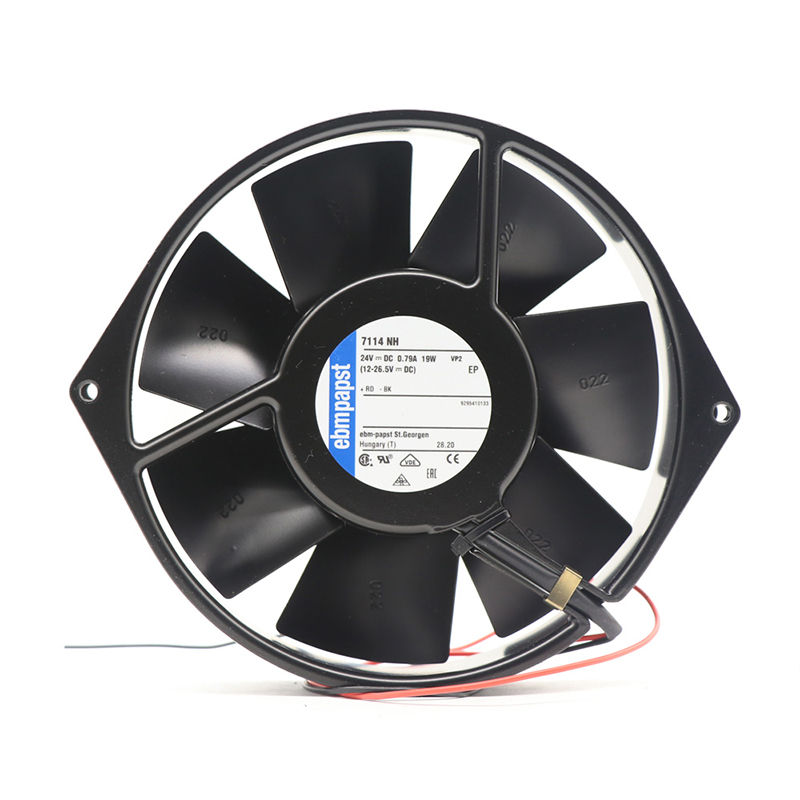

7114NH | ebm-papst 24V 19W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 7114NH | ebm-papst 24V 19W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 7114NH is a high-performance dc axial fan engineered for variable-frequency drives. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 7114NH | ebm-papst 24V 19W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	150φ*38
Max.Air Flow(m³/h)	360
Max.Pressure(Pa)	185
Input Power(W)	19
Speed(rpm)	3350
Noise(db)	58

Product Features

High Airflow Cooling

Designed as a compact DC axial cooling fan, the ebmpapst 7114NH supports thermal management in variable-frequency drives. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, airflow up to 360 m³/h, and maximum pressure of 185 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support for durable motor support. Listed noise is 58 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Drive System Cooling

7114NH Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Frequently Asked Questions

Is the 7114NH listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.

How should the 7114NH be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.

What is the rated voltage of the ebmpapst 7114NH?

The product data lists a rated voltage of 24 V. Match the supply before wiring.

What are the dimensions of the 7114NH?

The listed size is 150φ*38 mm. Confirm mounting holes and available clearance before replacement.
