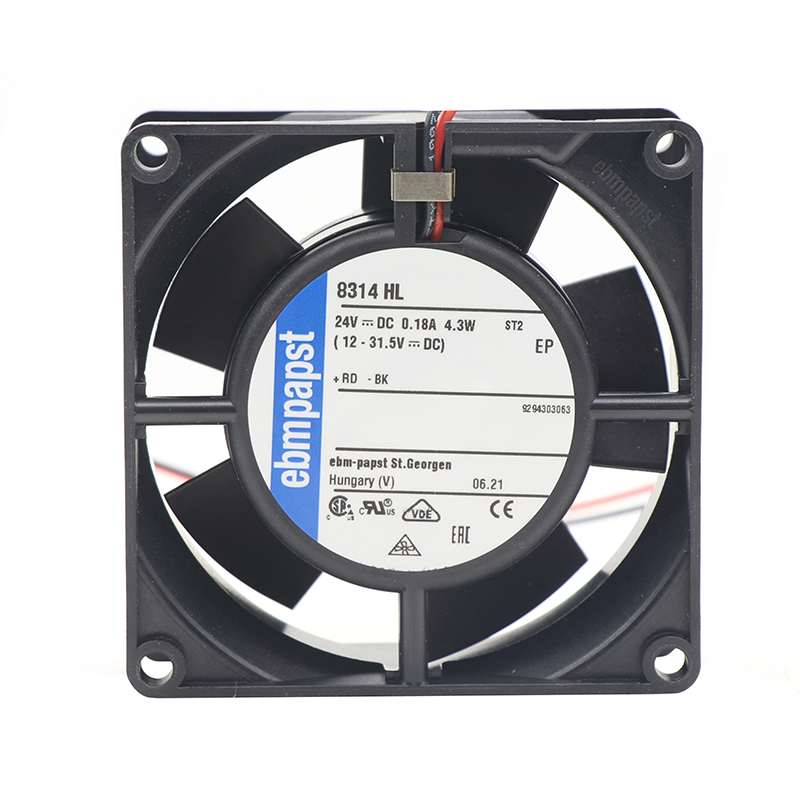

8314HL | ebm-papst 24V 4.3W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 8314HL | ebm-papst 24V 4.3W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 8314HL is a high-performance dc axial fan engineered for variable-frequency drives. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: 8314HL | ebm-papst 24V 4.3W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808032
Max.Air Flow(m³/h)	67
Input Power(W)	4.3
Speed(rpm)	4200

Product Features

Compact Airflow

Designed as a compact DC axial cooling fan, the ebmpapst 8314HL supports thermal management in variable-frequency drives, power supplies and power modules. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, and airflow up to 67 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. The datasheet identifies ball-bearing motor support for durable motor support. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

The 8314HL suits equipment builders and repair teams seeking a compact industrial fan. Confirm system resistance, wiring, mounting and ambient limits. Applied correctly, it delivers dependable service as a long-life cooling fan.

Application Industry

Drive System Cooling

8314HL Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Power Module Cooling

8314HL Delivers focused ventilation for power supplies and power modules used in compact electronic and automation assemblies.

Frequently Asked Questions

What are the dimensions of the 8314HL?

The listed size is 80*80*32 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 8314HL?

The product data lists airflow up to 67 m³/h, speed 4200 RPM; confirm the required operating point.

What power or noise data is available for the 8314HL?

The listed values are input power 4.3 W. Use the exact model data for selection.

Is the 8314HL compatible with my equipment?

Compare 24 V, 80*80*32 mm, airflow demand and connection details with your equipment.
