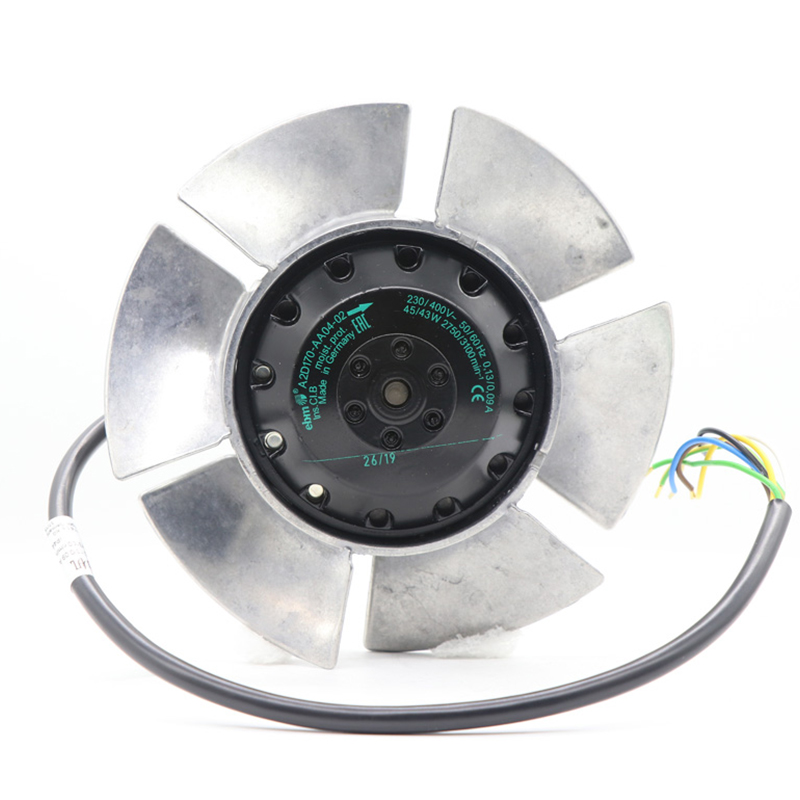

A2D170-AA04-02 ebm-papst 轴流风机

品牌：: ebmpapst

型号：: A2D170-AA04-02 | ebm-papst 400V 45W AC Axial Fan for Motor Cooling

类型：: 轴流风机

应用行业：: 工业冷却

产品描述：: For industrial motor cooling, the ebm-papst A2D170-AA04-02 provides a 400 V AC axial fan solution. Performance data of 535 m³/h airflow, 80 Pa pressure, 2750 RPM supports practical selection for continuous ventilation, component cooling and replacement planning.

规格书：: A2D170-AA04-02 | ebm-papst 400V 45W AC Axial Fan for Motor Cooling 规格书 (Pdf)

产品特点

Rated Voltage(V)	400
Size(mm)	170
Max.Air Flow(m³/h)	535
Max.Pressure(Pa)	80
Input Power(W)	45
Speed(rpm)	2750

产品特点

Reliable AC Cooling

The ebm-papst A2D170-AA04-02 is an AC axial fan for industrial equipment cooling, delivering directed airflow for machinery, motor systems and ventilation assemblies.

Data includes 400 V operation, airflow up to 535 m³/h and pressure up to 80 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the A2D170-AA04-02 should be checked for wiring, mounting, duty point and ambient limits before selection.

应用行业

Motor Cooling

The A2D170-AA04-02 ebm-papst fan is used in industrial motor systems to remove accumulated heat around the motor body, supporting stable duty cycles and reducing thermal stress on nearby components.

产品资讯

A2D Series Comparison — A2D170-AA04-02 vs Variants

A2D170-AA04-02 与 A2D 系列相近型号的参数对比如下：

型号	A2D160-AB22-06	A2D170-AA04-02	A2D200-AA02-02	A2D200-AH18-01
风量	155 m³/h	535 m³/h	840 m³/h	—
功率	43 W	45 W	53 W	70 W
噪音	— dB	— dB	67 dB	— dB
尺寸	160 mm	170 mm	200 mm	200 mm

恒瑞宏盛供应的 A2D 系列风机均附带性能曲线、安装说明和原厂质保。如需项目定制选型，请联系我们。

Typical Applications — A2D170-AA04-02 AC Axial

Condenser Cooling: The A2D170-AA04-02 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

常见问题

Does the A2D170-AA04-02 have environmental compliance information?

The product workbook lists RoHS Compliant. Request the exact-model compliance document when formal evidence is required.

How does the A2D170-AA04-02 compare with a general-purpose fan?

Its documented 535 m³/h airflow and 80 Pa pressure and 2750 RPM supports model-specific selection instead of relying on a generic fan rating.
