G4D200-CD04-24 ebm-papst 离心风机

品牌：: ebmpapst

型号：: G4D200-CD04-24 | ebm-papst 400V 310W AC Centrifugal Blower for Filter Cabinets

类型：: 离心风机

应用行业：: 自动化

产品描述：: G4D200-CD04-24 combines 400 V operation with a AC centrifugal blower format for filter cabinets. A key model-specific detail is 1,145 m³/h airflow with thermal-overload protection.

规格书：: G4D200-CD04-24 | ebm-papst 400V 310W AC Centrifugal Blower for Filter Cabinets 规格书 (Pdf)

产品特点

Rated Voltage(V)	400
Size(mm)	200
Max.Air Flow(m³/h)	1145
Max.Pressure(Pa)	340
Input Power(W)	310
Speed(rpm)	1530

产品特点

High Static Airflow

The ebm-papst G4D200-CD04-24 is an AC centrifugal blower for industrial cooling, providing directed airflow in enclosures and cooling assemblies.

Data includes 400 V operation, airflow up to 1145 m³/h and pressure up to 340 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, sheet-steel impeller for durable motor support. Installed noise depends on the duty point and airflow path. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the G4D200-CD04-24 should be checked for wiring, mounting, duty point and ambient limits before selection.

应用行业

Industrial Cooling

The G4D200-CD04-24 ebm-papst fan is used in industrial equipment cooling where continuous heat generation requires controlled airflow for equipment heat removal and stable system operation.

产品资讯

G4D Series Comparison — G4D200-CD04-24 vs Variants

G4D200-CD04-24 与 G4D 系列相近型号的参数对比如下：

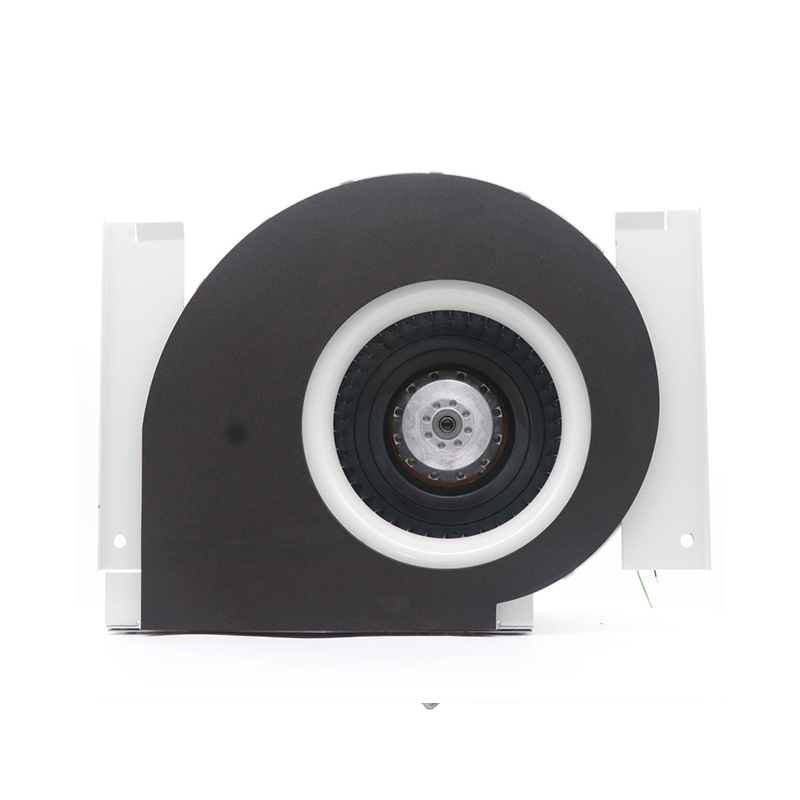

型号	G4D200-CD04-24	G4D200-CD04-28	G4D200-CL12-01	G4D310-DK03-05/F02
风量	1145 m³/h	1020 m³/h	1270 m³/h	—
功率	310 W	210 W	340 W	2180 W
噪音	— dB	— dB	— dB	— dB
尺寸	200 mm	200 mm	200 mm	310 mm

恒瑞宏盛供应的 G4D 系列风机均附带性能曲线、安装说明和原厂质保。如需项目定制选型，请联系我们。

Typical Applications — G4D200-CD04-24 AC Axial

Condenser Cooling: The G4D200-CD04-24 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

常见问题

How does the G4D200-CD04-24 compare with an ordinary fan?

Its ac centrifugal blower design supports controlled airflow and useful pressure for ducted or space-constrained cooling systems.

How do I confirm compatibility for the G4D200-CD04-24?

Compare 400 V, 200 mm, 1145 m³/h, 340 Pa, connector details and operating environment with the existing system.

What should be considered for noise control with the G4D200-CD04-24?

Noise depends on the operating point and installation. Use smooth airflow paths, secure mounting and suitable isolation where needed.

How should the G4D200-CD04-24 be installed?

The listed size is 200 mm. Confirm orientation, mounting points, clearances, inlet conditions and electrical connections against the exact drawing.
