离心风机

123 个结果

离心风机是高压工业通风系统的主力设备，通过弯曲的叶轮将空气沿径向加速并将其动能转化为静压。这一工作原理使离心风机能够克服较大的系统阻力，因此在风管式暖通空调系统、除尘与烟气净化系统、燃烧空气供应以及工业过程通风等领域不可或缺。离心风机按叶轮几何形状可分为：前弯式（风量大、压力中等）、后弯式（压力高、效率最高）以及径向叶片式（结构坚固，适用于含颗粒物的气流）。它们还提供直驱或皮带驱动两种配置。离心风机可适配多种类型的电机和转速，从1500转/分的常规交流电机到高速EC驱动器均可兼容。主要制造商包括依必安派特、齐柏林、尼科特拉·格布哈特、罗森伯格和索德卡。恒瑞提供来自各大品牌的离心风机，配备完整的性能曲线、具有竞争力的定价，并可为系统设计提供工程咨询服务。在选用离心风机时，工程师必须将风机的性能曲线与计算得出的系统曲线进行匹配，以实现最佳的效率和可靠性。

产品 (123) 图片最新产品

离心风机的类型

交流离心风机 (66)
EC离心风机 (57)

已选条件

显示

1-20

1-20 21-40 41-60 61-80 81-100 101-120 121-123

共 123 个

推荐最受欢迎

下载表格

制造商料号	Rated Voltage(V)	Size(mm)	Max.Air Flow(m³/h)	Max.Pressure(Pa)	Input Power(W)	Speed(rpm)	Noise(db)

RH56V-ZIK.GL.VR \| ZIEHL-ABEGG 400V 3500W EC Impeller for Data Center & Equipment Cooling Created for Ventilation Systems, ZIEHL-ABEGG RH56V-ZIK.GL.VR is a 400 V EC centrifugal fan, marked by a listed acoustic value of 60 dB. This helps evaluate the intended duty. This rating informs planning.	400	560	17350	750	3500	1550	60
RE18P-2DK.1E.2R \| ZIEHL-ABEGG 400V 490W AC Centrifugal Fan for Equipment Cooling & Ventilation Applied in Ventilation, the ZIEHL-ABEGG RE18P-2DK.1E.2R is a 400 V AC centrifugal fan, for which the table lists a documented speed of 2,970 rpm. The figure supports compatibility review.	400	180	-	-	490	2970	-
RH71M-6DK.7Q.1R \| ZIEHL-ABEGG 230V 2100W AC Impeller for HVAC, Rail & Drying Equipment Specified for Ventilation Systems, the ZIEHL-ABEGG RH71M-6DK.7Q.1R is a 230 V AC centrifugal fan, recognized through a listed pressure capability of 800 Pa. This guides model-to-system comparison.	230	710	-	800	2100	930	-
RH63M-VDK.7Q.1R \| ZIEHL-ABEGG 400V 3900W AC Impeller for HVAC, Rail & Drying Equipment Created for Ventilation Systems, the ZIEHL-ABEGG RH63M-VDK.7Q.1R is a 400 V AC centrifugal fan, defined by a listed pressure capability of 950 Pa. This helps guide installation planning.	400	630	-	950	3900	1350	-
RH63M-6DK.6N.1R \| ZIEHL-ABEGG 230V 1150W AC Impeller for HVAC, Rail & Drying Equipment Created for Ventilation Systems, ZIEHL-ABEGG RH63M-6DK.6N.1R is a 230 V AC centrifugal fan, built around a documented speed of 910 rpm. It gives engineers a clear comparison point.	230	630	-	-	1150	910	-
RH56M-VDK.6N.1R \| ZIEHL-ABEGG 400V 2200W AC Impeller for HVAC, Rail & Drying Equipment Suited to Ventilation Systems, ZIEHL-ABEGG RH56M-VDK.6N.1R is a 400 V AC centrifugal fan, specified with a listed pressure capability of 760 Pa. The rating aids system-fit checks. Its listed data supports integration planning.	400	560	11000	760	2200	1350	-
RH56M-6DK.6K.1R \| ZIEHL-ABEGG 230V 830W AC Impeller for HVAC, Rail & Drying Equipment Used in Ventilation Systems, the ZIEHL-ABEGG RH56M-6DK.6K.1R is a 230 V AC centrifugal fan, whose key figure is a documented speed of 900 rpm. This clarifies the model's listed capability.	230	560	-	-	830	900	-
RH56M-4DK.6K.1R \| ZIEHL-ABEGG 230V 1800W AC Impeller for HVAC, Rail & Drying Equipment Created for Ventilation Systems, the ZIEHL-ABEGG RH56M-4DK.6K.1R is a 230 V AC centrifugal fan, distinguished by a documented speed of 1,230 rpm. The parameter assists integration checks.	230	560	-	700	1800	1230	-
RH56E-4DK.6N.1R \| ZIEHL-ABEGG 230V 2500W AC Impeller for Equipment Cooling & Ventilation Integrated into Ventilation Systems, the ZIEHL-ABEGG RH56E-4DK.6N.1R is a 230 V AC centrifugal fan, documented with a listed pressure capability of 910 Pa. This guides model-to-system comparison.	230	560	-	910	2500	1320	-
RH50M-6DK.4I.1R \| ZIEHL-ABEGG 3~230-400V 610W AC Impeller for HVAC, Rail & Drying Equipment Integrated into Ventilation, ZIEHL-ABEGG RH50M-6DK.4I.1R is a 230-400V AC centrifugal fan, specified with a documented 610 W input rating. This helps evaluate the intended duty. This helps verify equipment fit.	3~ 230/400	500	-	-	610	1050	-
RH50M-4DK.6F.1R \| ZIEHL-ABEGG 230V 1500W AC Impeller for HVAC, Rail & Drying Equipment Prepared for Ventilation Systems, the ZIEHL-ABEGG RH50M-4DK.6F.1R is a 230 V AC centrifugal fan, characterized by a listed pressure capability of 600 Pa. The value helps verify equipment fit.	230	500	-	600	1500	1340	-
RH50E-4DK.6K.1R \| ZIEHL-ABEGG 400V 1500W AC Impeller for Equipment Cooling & Ventilation Built for Ventilation Systems, ZIEHL-ABEGG RH50E-4DK.6K.1R is a 400 V AC centrifugal fan, supported by a listed pressure capability of 750 Pa. This supports duty-point selection. The value aids technical review.	400	500	-	750	1500	1300	-
RH45M-4DK.4I.1R \| ZIEHL-ABEGG 230V 700W AC Impeller for HVAC, Rail & Drying Equipment Applied in Ventilation Systems, ZIEHL-ABEGG RH45M-4DK.4I.1R is a 230 V AC centrifugal fan, offering a documented 700 W input rating. This enables specification-led selection. The stated values provide a basis for design review.	230	450	-	-	700	1300	-
RH35Z-2EK.6N.XR \| ZIEHL-ABEGG 230V 3200W AC Impeller for Equipment Cooling & Ventilation Serving Ventilation Systems, the ZIEHL-ABEGG RH35Z-2EK.6N.XR is a 230 V AC centrifugal fan, for which the table lists a documented speed of 2,790 rpm. It gives engineers a clear comparison point.	230	350	-	-	3200	2790	-
RH35M-4EK.4F.1R \| ZIEHL-ABEGG 230V 300W AC Impeller for HVAC, Rail & Drying Equipment Designed for Ventilation Systems, ZIEHL-ABEGG RH35M-4EK.4F.1R is a 230 V AC centrifugal fan, characterized by a documented 300 W input rating. The value helps verify equipment fit.	230	350	-	-	300	1360	-
RH35M-4EK.2F.1R \| ZIEHL-ABEGG 230V 3000W AC Impeller for HVAC, Rail & Drying Equipment Configured for Ventilation Systems, the ZIEHL-ABEGG RH35M-4EK.2F.1R is a 230 V AC centrifugal fan, whose key figure is 350 mm dimensions for installation planning. The value helps verify equipment fit.	230	350	-	-	3000	1340	-

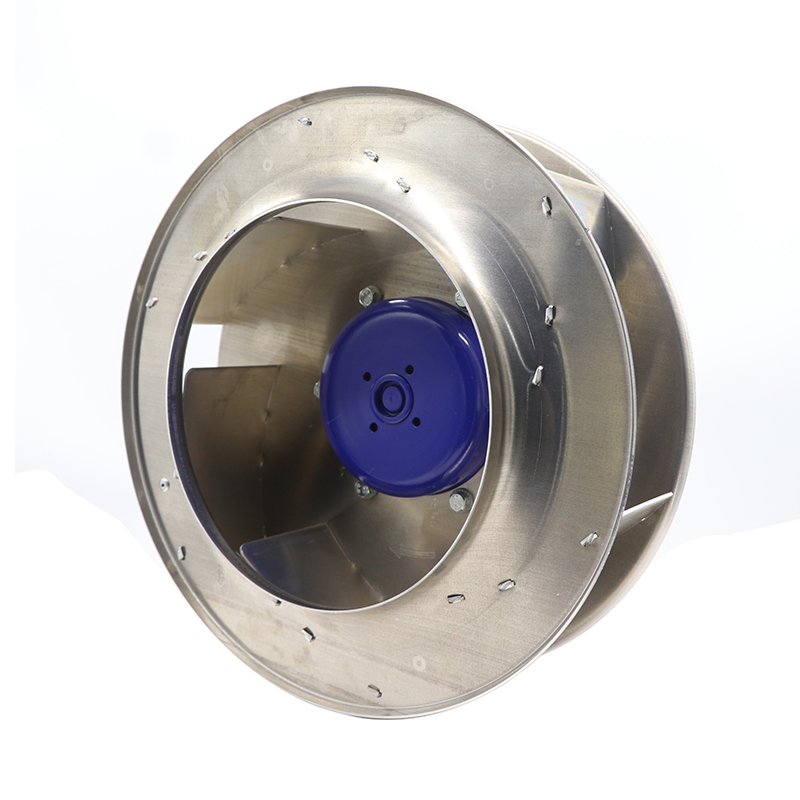

RH31M-6ID.BD.2R \| ZIEHL-ABEGG 1~200-277V 380W EC Impeller for HVAC, Rail & Drying Equipment Developed for Ventilation, the ZIEHL-ABEGG RH31M-6ID.BD.2R is a 200-277V EC centrifugal fan, rated with 310 mm dimensions for installation planning. This helps guide installation planning.	1~ 200-277	310	-	660	380	-	-
RH28M-2EK.3F.1R \| ZIEHL-ABEGG 230V 590W AC Impeller for HVAC, Rail & Drying Equipment Engineered around Ventilation Systems, the ZIEHL-ABEGG RH28M-2EK.3F.1R is a 230 V AC centrifugal fan, showing 280 mm dimensions for installation planning. The figure helps confirm design suitability.	230	280	-	-	590	2680	-
RH28M-2DK.3F.1R \| ZIEHL-ABEGG 460V 860W AC Impeller for HVAC, Rail & Drying Equipment Intended for Ventilation Systems, ZIEHL-ABEGG RH28M-2DK.3F.1R is a 460 V AC centrifugal fan, using a documented speed of 3,220 rpm. The value helps verify equipment fit. It assists design comparison.	460	280	-	-	860	3220	-
RH28C-2DD.3I.CR \| ZIEHL-ABEGG 400V 1000W AC Impeller for HVAC Customer Systems Specified for Ventilation Systems, the ZIEHL-ABEGG RH28C-2DD.3I.CR is a 400 V AC centrifugal fan, distinguished by a documented speed of 3,170 rpm. It gives project engineers a selection cue.	400	280	2950	-	1000	3170	-

显示

1-20

1-20 21-40 41-60 61-80 81-100 101-120 121-123

共 123 个

1 2 3 4 5 6 7

跳转页

关于离心风机

如何选择合适的离心风机

确定离心风机最可靠的方法是从系统出发，而不是从产品目录出发。先实测或计算风量和压力需求，再加上安装位置的尺寸限制，最后才从曲线能以裕量覆盖您工作点的系列中筛选。

电气匹配是下一道关口。确认供电电压——小型电子散热常用 12 V、24 V 或 48 V DC，设备和机柜散热常用 115 V 或 230 V AC——并确定是否需要调速。EC 风机支持 PWM 或 0-10 V 信号调速，并可通过测速输出反馈转速，是变风量系统的默认之选；AC 风机在定速工况下则依然是高性价比方案。

接下来按环境筛选。高温环境、粉尘或潮湿负载决定了 IP 防护等级和轴承选择——滚珠轴承能让风量和噪音多年保持稳定，含油轴承则适合轻载卧式安装。UL、CE、RoHS 等法规认证要求应在入围名单提交采购前确认，同时确定允许的最大声压级（dBA）。

流程的最后是确认供应而不只是确认参数：确认当前库存和补货交期，取得规格书和尺寸图，确保机械接口在下单前验证完毕。把风量和压力需求发给我们，工程师将为您确认匹配度最高的系列 —— 该分类今天共有 123 件产品可供选购。

离心风机的典型应用场景与案例

我们销售工程师的日常工作围绕离心风机展开：数据中心散热、制冷与冷链项目、建筑通风、通信基站、医疗设备和工业控制柜——在这些环境中，风机停转就意味着业务停摆。正是这种对真实安装场景的日常积累，让我们在每一次选型中不只会看曲线，更清楚哪些型号能经受粉尘、高温、连续运行和维护空间受限的考验。

一个典型案例：某设备制造商需要更换控制柜内一台老旧 AC 风机，且柜体停机时间不能超过一小时。通过逐一核对机壳尺寸、电压和风量曲线，我们提供了带匹配测速信号的在产系列直接替换型号，更换工作在一个计划维护窗口内完成。

制冷与冷链客户带来另一种典型情况：损坏的冷凝器风机数周内无法到货。通过比对直径、转速、轴承和 IP 防护等级，我们从现货提供功能等效的机组，让系统当周恢复运行——这也是众多维修服务公司保存我们联系方式的原因。

从单件紧急替换到面向设备制造商的批量供应，每一单 ZIEHL-ABEGG 询价我们都遵循同一原则：先核实参数，再报价——确保送到现场的就是项目真正需要的那台风机。

离心风机采购常见问题解答

采购前能提供哪些技术资料？

下单前可按需提供规格书、性能曲线、尺寸图和认证文件（视适用情况提供 UL、CE、RoHS）——我们始终认为，采购订单应建立在经过验证的选型之上，而不是取代选型。对于项目投标，我们还可以提供产品对比表，把候选型号按您关注的参数逐项并列呈现。

离心风机是否有现货？多久可以发货？

常规系列和主流电压版本通常备有现货，可在几个工作日内发货；特殊或定制版本按订单生产，一般需要额外的生产时间。您只需提供确切型号或所需参数，我们将在一次回复中确认库存、单价和最早发货日期，该分类目前在线展示 123 件产品。

能否替换我在用的其他供应商的离心风机或已停产的型号？

可以。备件替换供应是我们的核心服务之一：我们会逐一核对您在用机组的安装尺寸、电压、转速和性能曲线，提出最接近的在产系列等效型号。如机壳或接口略有差异，我们会在下单前明确告知差异，确保替换安装不出现意外。

袋装

袋装（Bag packaging）是指由制造商将指定数量的产品装入袋、密封袋或类似容器中，作为一个整体出售，无需重新包装。该术语也用于描述套件/组合装，即组件按零件号或参数值分装在独立的袋子中，而不是装入分格盒或类似的刚性容器。
