ebm-papst 离心风机 | 恒瑞宏盛

首页 > 产品 > 按品牌 > ebmpapst > 离心风机

离心风机

766 个结果

适用于紧凑型工业制冷与通风应用的高效离心式气流系统。

产品 (766) 图片最新产品

离心风机的类型

已选条件

显示

1-20

1-20 21-40 41-60 61-80 81-100 101-120 121-140 141-160 161-180 181-200 201-220 221-240 241-260 261-280 281-300 301-320 321-340 341-360 361-380 381-400 401-420 421-440 441-460 461-480 481-500 501-520 521-540 541-560 561-580 581-600 601-620 621-640 641-660 661-680 681-700 701-720 721-740 741-760 761-766

共 766 个

推荐最受欢迎

下载表格

制造商料号	Rated Voltage(V)	Size(mm)	Max.Air Flow(m³/h)	Max.Pressure(Pa)	Input Power(W)	Speed(rpm)	Noise(db)

R3G630-PC08-03 \| ebm-papst 400V EC Centrifugal Fan for Data Centers The ebm-papst R3G630-PC08-03 is a high-performance EC centrifugal fanfrom the renowned RadiPac series, engineered specifically formission-critical data center cooling applications.	-	-	-	-	-	-	-
D1G160-DA33-17 \| ebm-papst 48V 112W EC Centrifugal Blower for Air Handling Units Suited to Air Handling Units, the ebm-papst D1G160-DA33-17 is a 48 V EC forward-curved centrifugal fan, identified by a documented speed of 1,250 rpm. It gives engineers a clear comparison point.	48	160	-	-	112	1250	-
G1G146-BA07-52 \| ebm-papst 24V 100W EC Centrifugal Blower for Boiler Systems Aimed at Boiler Systems, the ebm-papst G1G146-BA07-52 is a 24 V EC backward-curved centrifugal fan, for which the table lists a listed pressure capability of 500 Pa. This assists electrical and mechanical review.	24	146	470	500	100	2200	-
K2E225-RA92-09 \| ebm-papst 230V 210W AC Centrifugal Fan for Energy Storage Aimed at Energy Storage, the ebm-papst K2E225-RA92-09 is a 230 V AC backward-curved centrifugal fan, identified by a documented speed of 2,700 rpm. It gives engineers a clear comparison point.	230	225	1300	200	210	2700	64
D1G160-DA33-15 \| ebm-papst 48V 112W EC Centrifugal Blower for Air Handling Units Configured for Air Handling Units, the ebm-papst D1G160-DA33-15 is a 48 V EC forward-curved centrifugal fan, showing a documented speed of 1,250 rpm. The figure helps confirm design suitability.	48	160	985	300	112	1250	-
K2E250-AH06-06 \| ebm-papst 230V AC Centrifugal Fan for Energy Storage Systems Specified for Energy Storage Systems, the ebm-papst K2E250-AH06-06 is a 230 V AC backward-curved centrifugal fan, noted for 250 mm dimensions for installation planning. The data supports model-level evaluation.	230	250	-	-	-	-	-
G1G133-DE19-15 \| ebm-papst 24V 45W EC Centrifugal Blower for Boiler Systems Integrated into Boiler Systems, the ebm-papst G1G133-DE19-15 is a 24 V EC backward-curved centrifugal fan, specified with a documented 45 W input rating. The rating aids system-fit checks.	24	133	-	-	45	2000	-
G1G097-AA05-01 \| ebm-papst 24V 16W EC Centrifugal Blower for Boiler Systems Suited to Boiler Systems, ebm-papst G1G097-AA05-01 is a 24 V EC backward-curved centrifugal fan, marked by a documented 16 W input rating. It provides a practical sizing reference.	24	97	100	269	16	2650	-
G1G085-AB05-01 \| ebm-papst 24V 14W EC Centrifugal Blower for Boiler Systems Selected for Boiler Systems, ebm-papst G1G085-AB05-01 is a 24 V EC backward-curved centrifugal fan, marked by a documented 14 W input rating. This helps evaluate the intended duty.	24	85	-	-	14	2850	-
R2K150-AC01-33 \| ebm-papst 230V 32W AC Hot-Air Blower for Hot-Air Systems Built for Hot-Air Systems, the ebm-papst R2K150-AC01-33 is a 230 V AC forward-curved centrifugal fan, built around a documented 32 W input rating. This supports technical purchasing review.	230	150	-	-	32	2000	-

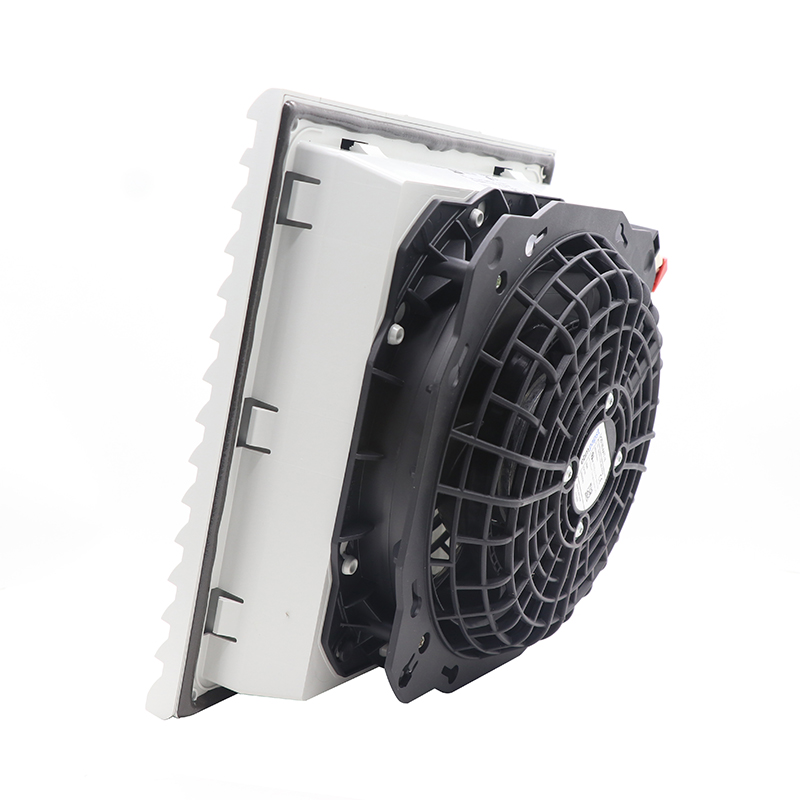

K2S165-AA35-16 \| ebm-papst 115V 34W AC Centrifugal Fan for Air Handling Units Engineered around Air Handling Units, the ebm-papst K2S165-AA35-16 is a 115 V AC backward-curved centrifugal fan, for which the table lists a documented 34 W input rating. It gives engineers a clear comparison point.	115	165	-	-	34	1900	-

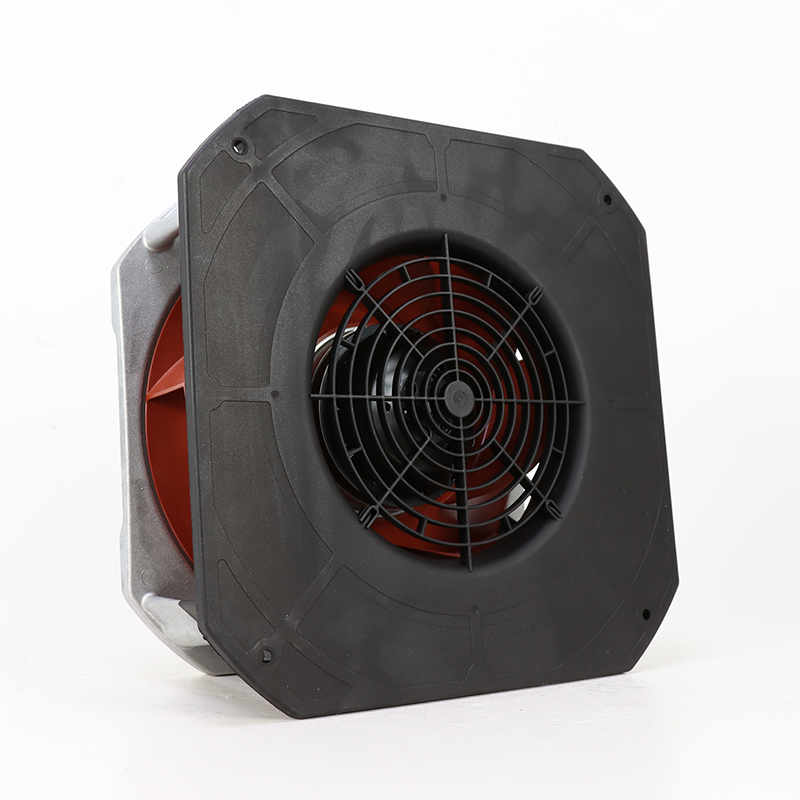

K2E200-AA52-02 \| ebm-papst 230V 90W AC Centrifugal Fan for Energy Storage Engineered around Energy Storage, the ebm-papst K2E200-AA52-02 is a 230 V AC backward-curved centrifugal fan, distinguished by a documented speed of 2,950 rpm. This helps evaluate the intended duty.	230	200	850	245	90	2950	65

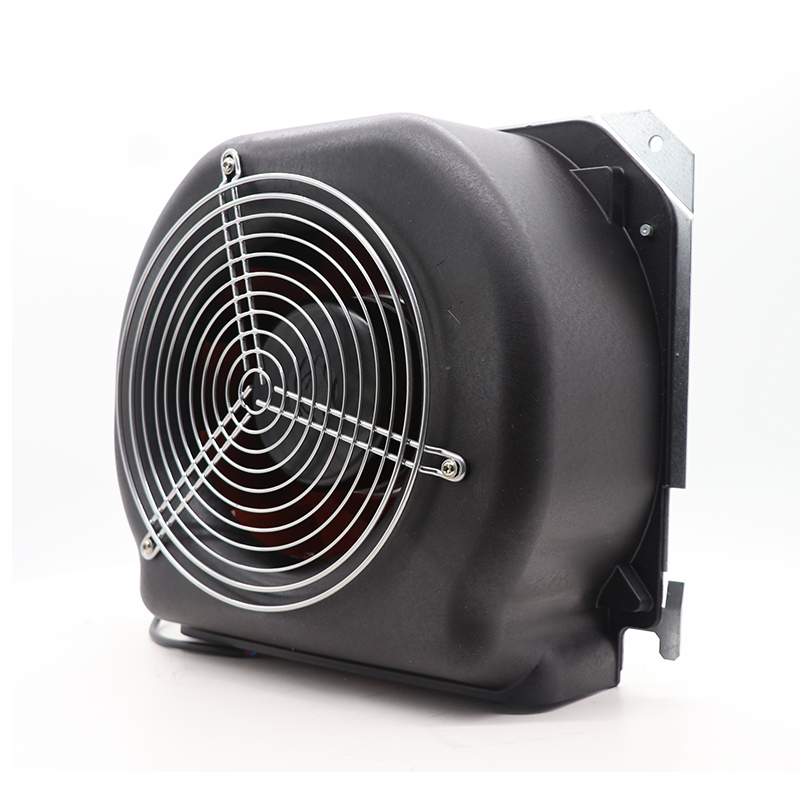

K1G190-AD73-10 \| ebm-papst 230V EC Centrifugal Fan for Air Handling Units Aimed at Air Handling Units, the ebm-papst K1G190-AD73-10 is a 230 V EC backward-curved centrifugal fan, centered on 190 mm dimensions for installation planning. This clarifies the model's listed capability.	230	190	-	-	-	-	-
G1G126-AA49-71 \| ebm-papst 230V 75W EC Centrifugal Blower for Boiler Systems Built for Boiler Systems, the ebm-papst G1G126-AA49-71 is a 230 V EC backward-curved centrifugal fan, whose supplied data highlights a documented speed of 5,000 rpm. The rating clarifies its operating profile.	230	126	-	-	75	5000	-
D1G133-BF05-14 \| ebm-papst 230V 85W EC Centrifugal Blower for Air Handling Units Selected for Air Handling Units, the ebm-papst D1G133-BF05-14 is a 230 V EC forward-curved centrifugal fan, rated with a listed acoustic value of 52 dB. This clarifies the model's listed capability.	230	133	871	-	85	1270	52

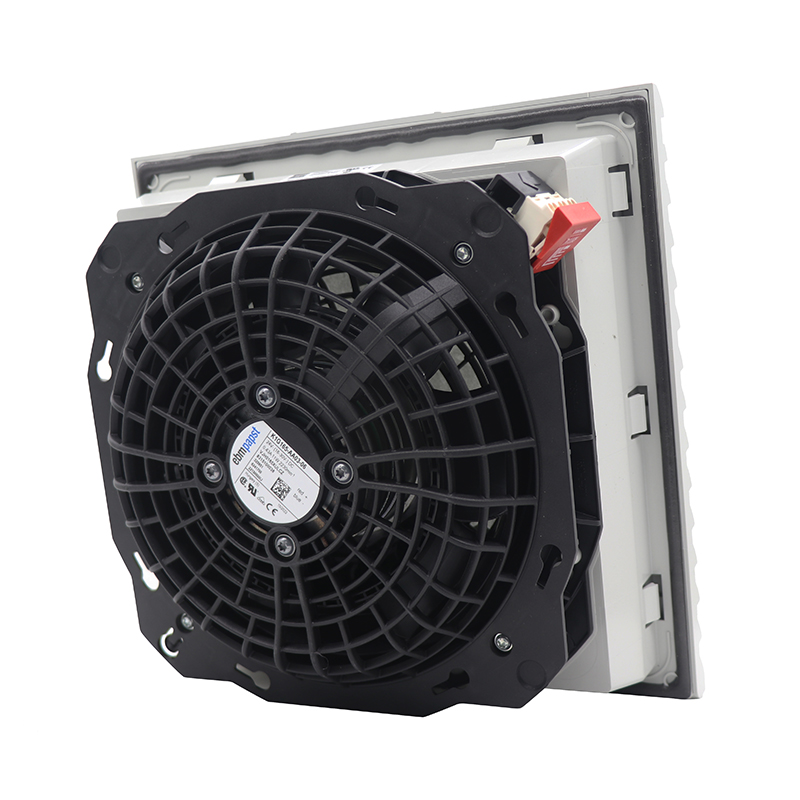

K1G165-AA03-06 \| ebm-papst 24V 10W EC Centrifugal Fan for Air Handling Units Configured for Air Handling Units, the ebm-papst K1G165-AA03-06 is a 24 V EC backward-curved centrifugal fan, offering a documented 10 W input rating. The figure supports compatibility review.	24	165	-	-	10	-	-
K2E225-RA92-01 \| ebm-papst 230V 210W AC Centrifugal Fan for Energy Storage Prepared for Energy Storage, the ebm-papst K2E225-RA92-01 is a 230 V AC backward-curved centrifugal fan, with a focus on a listed pressure capability of 500 Pa. It gives engineers a clear comparison point.	230	225	1300	500	210	2600	64
RL90-18/06 \| ebm-papst 115V 19.5W Centrifugal Blower for Equipment Cooling Matched to Equipment Cooling, the ebm-papst RL90-18/06 is a 115 V AC forward-curved centrifugal fan, documented with a documented 19.5 W input rating. It provides a traceable selection parameter.	115	12112137	42	120	19.5	2550	-
RL48-19/14 \| ebm-papst 24V 5W Centrifugal Blower for Equipment Cooling Selected for Equipment Cooling, ebm-papst RL48-19/14 is a 24 V DC forward-curved centrifugal fan, with a documented 5 W input rating. It provides a practical sizing reference. Its documented data supports integration planning.	24	76*27	28	130	5	4400	51

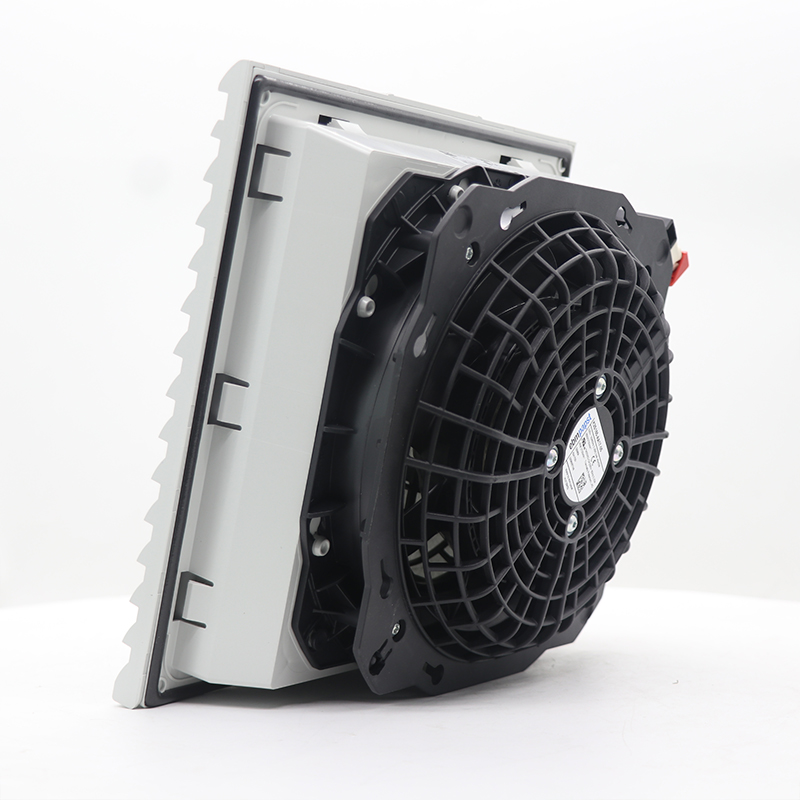

K2S16S-AA77-15 \| ebm-papst 230V AC Centrifugal Fan for Air Handling Units Designed for Air Handling Units, the ebm-papst K2S16S-AA77-15 is a 230 V AC backward-curved centrifugal fan, showing 165 mm dimensions for installation planning. The figure helps confirm design suitability.	230	165	-	-	-	-	-

显示

1-20

共 766 个

1 2 3 4 5 6 7 8 9 10 ... 38 39

跳转页

关于离心风机

适用于紧凑型工业制冷与通风应用的高效离心式气流系统。

如何选择合适的离心风机

在对比离心风机的型号之前，先列明真实的运行需求：所需风量、系统静压、可用安装空间和现场供电条件。忽略这四项因素中任何一项的选型，通常最终都会以退货或现场改造收场。

电压和控制方式决定入围范围。标准选项包括 12/24/48 V DC 和 115/230 V AC；对于工作点会变化的场合，支持 PWM 或 0-10 V 输入的 EC 风机可实现精准调速，测速信号则能提供许多安全系统所需的反馈。

环境条件比任何目录筛选器都更快地淘汰不合适的型号。检查环境温度范围、防尘防潮所需的 IP 防护等级以及预期使用寿命——在立式安装或高温位置，滚珠轴承机型保持噪音和风量指标稳定的时间远长于含油轴承设计。如果设备要销往受监管市场，应在此阶段确认 UL、CE 和 RoHS 认证，并尽早设定以 dBA 为单位的噪音目标，避免声学问题在安装后才暴露。

收尾阶段要为订单排除风险：核实库存水平，确认生产交期，并索取候选型号的规格书和尺寸图，确保安装孔位和接口在采购前核对无误。把您的工作点提供给我们，我们将验证匹配性该分类现有 766 件产品可随时对比。

离心风机的典型应用场景与案例

从我们的项目记录看，凡是设备需要持续散热、空气需要持续流动的场合都会用到离心风机：数据中心与机房、商用制冷、空调通风系统、通信与电池柜、工业机械设备，以及新能源领域的电力电子设备。这些项目的共同点很朴素——风机成本占比很小，却直接决定设备能否正常运行，值得与被保护设备同等的工程重视。

在最近一个改造项目中，客户的散热机组必须在更换磨损风机的同时保持运行。我们找到了安装尺寸完全相同、风量-压力曲线相当的在产替换型号，并确认了测速输出兼容性，整个安装在一个维护窗口内完成。

第二类高频场景来自制冷维修：冷凝器或蒸发器风机损坏，而原装型号交期漫长。不必等待——我们核对轴承类型、IP 防护等级、叶轮直径和转速，立即提供能恢复制冷量的等效型号。这正是我们的现货库存保护冷链运行的常见方式之一。

无论新造设备还是 ebmpapst 设备的替换项目，在我们这里都遵循同一路径：您提供所需的风量、压力和尺寸，我们回复入围清单、性能曲线和确定的交货日期。

离心风机采购常见问题解答

能否替换我在用的其他供应商的离心风机或已停产的型号？

可以。备件替换供应是我们的核心服务之一：我们会逐一核对您在用机组的安装尺寸、电压、转速和性能曲线，提出最接近的在产系列等效型号。如机壳或接口略有差异，我们会在下单前明确告知差异，确保替换安装不出现意外。

批量采购前可以单件下单或申请样品吗？

欢迎单件订购和样品申请——许多客户都会先在系统中验证一台样机，再决定批量采购。标准现货型号不设最低起订量，且多数复购订单可在批量货款中抵扣样品费。请告诉我们计划使用的数量，我们将同时给出两种方案的报价。

是否支持离心风机的定制或 OEM 版本？

可以。除标准目录型号外，我们可以洽谈修改引线、接口、调速曲线、IP 防护升级或 OEM 贴牌包装等方案。定制通常从约定的年用量起步；我们的工程师会先评审您的需求，并在任何承诺之前确认可行性、模具费用和交期。

袋装

袋装（Bag packaging）是指由制造商将指定数量的产品装入袋、密封袋或类似容器中，作为一个整体出售，无需重新包装。该术语也用于描述套件/组合装，即组件按零件号或参数值分装在独立的袋子中，而不是装入分格盒或类似的刚性容器。
