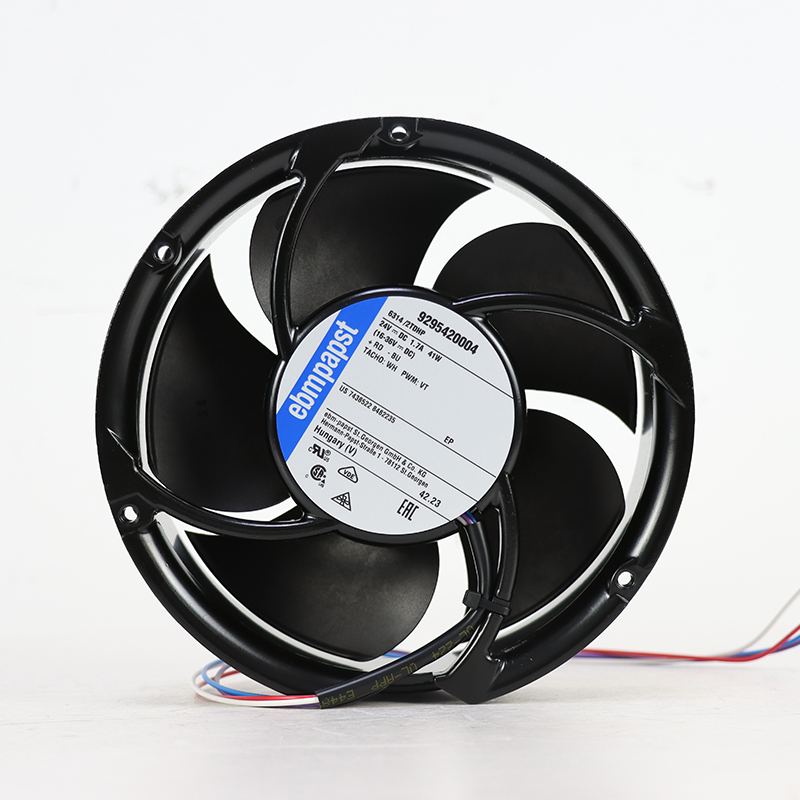

6314/2TDHP | ebm-papst 24V 40W DC Axial Fan for Electronics Cooling

Brand :: ebmpapst

Model:: 6314/2TDHP | ebm-papst 24V 40W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 6314/2TDHP is a high-performance dc axial fan engineered for control cabinets and enclosures. It provides reliable airflow and efficient thermal management for demanding equipment.

Datasheet:: 6314/2TDHP | ebm-papst 24V 40W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	17215051
Max.Air Flow(m³/h)	600
Max.Pressure(Pa)	655
Input Power(W)	40
Speed(rpm)	5500
Noise(db)	63

Product Features

High Static Cooling

The ebmpapst 6314/2TDHP is a compact DC axial cooling fan intended for industrial automation and electronic equipment. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 24 V supply, airflow up to 600 m³/h, and maximum pressure of 655 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support for durable motor support. Listed noise is 63 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Automation Cooling

6314/2TDHP Supports reliable heat removal in automation controllers, machine electronics and compact industrial control equipment.

Frequently Asked Questions

What power or noise data is available for the 6314/2TDHP?

The listed values are input power 40 W, noise 63 dB. Use the exact model data for selection.

Is the 6314/2TDHP compatible with my equipment?

Compare 24 V, 172*150*51 mm, airflow demand and connection details with your equipment.

Where can the 6314/2TDHP be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.

Is the 6314/2TDHP listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.
