轴流风机

29 个结果

产品 (29) 图片最新产品

轴流风机的类型

交流风扇 (27)
EC风扇 (2)

已选条件

显示

1-20

1-20 21-29

共 29 个

推荐最受欢迎

下载表格

制造商料号	Rated Voltage(V)	Size(mm)	Max.Air Flow(m³/h)	Max.Pressure(Pa)	Input Power(W)	Speed(rpm)	Noise(db)

UF-15KM23BWH \| Fulltech 230VAC 42W AC Axial Fan for Control Cabinet and Power Supply Cooling The 150 × 172 × 55 mm UF-15KM23BWH brings 230 VAC AC axial fan ventilation to industrial cabinets and power supplies. Its die-cast aluminum frame is the representative structural feature; ball bearings and lead-wire connection are also documented. Rated data: 42 W input, up to 391 m³/h, 3250 rpm, 53 dB.	230	17215055	391	-	42	3250	53
UF-15A23BTH \| Fulltech 230VAC 31W AC Axial Fan for Control Cabinet and Power Supply Cooling In industrial cabinets and power supplies, UF-15A23BTH supplies airflow through a 150 × 172 × 38 mm, 230 VAC AC axial fan configuration. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 31 W input, up to 337 m³/h, 3200 rpm, 55 dB.	230	17215038	337	-	31	3200	55

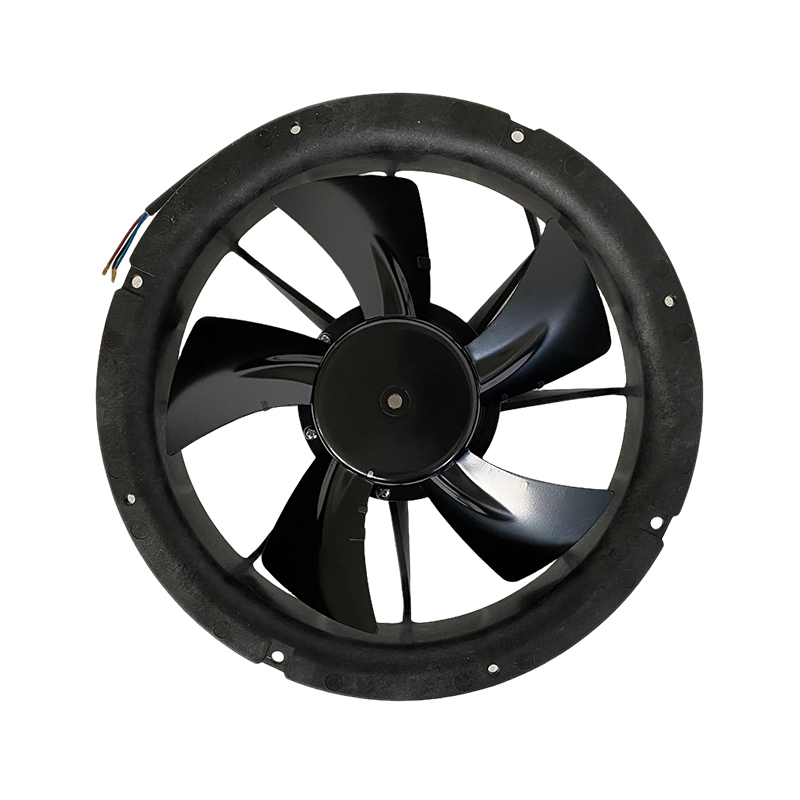

UF-T200BMB23H1D4AN \| Fulltech 230VAC 27W EC Axial Fan for HVAC and Refrigeration Equipment Cooling Ventilation for HVAC, refrigeration, heat exchangers, and industrial cooling is the stated role of Fulltech UF-T200BMB23H1D4AN. This 230 VAC EC axial fan is packaged within Ø200 mm. An EC external-rotor motor, ball bearings, electronic protection, and speed control are documented. Rated data: 27 W input.	230	φ250*76	-	-	27	-	-
UF-15KMR23 BWHF \| Fulltech 230VAC 45W AC Axial Fan for Control Cabinet and Power Supply Cooling Built around 150 × 172 × 55 mm, the UF-15KMR23 BWHF uses a 230 VAC AC axial fan arrangement for industrial cabinets and power supplies. Lead-wire connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 45 W input, up to 433 m³/h, 3150 rpm, 61 dB.	230	17215055	433	-	45	3150	61
UF-15KM23BWHF \| Fulltech 230VAC 42W AC Axial Fan for Control Cabinet and Power Supply Cooling Fulltech UF-15KM23BWHF provides 230 VAC AC axial fan cooling for industrial cabinets and power supplies from a 150 × 172 × 55 mm format. Ball-bearing construction is the central durability detail, paired with lead-wire connection and motor protection. Rated data: 42 W input, up to 391 m³/h, 3250 rpm, 53 dB.	230	17215055	391	-	42	3250	53

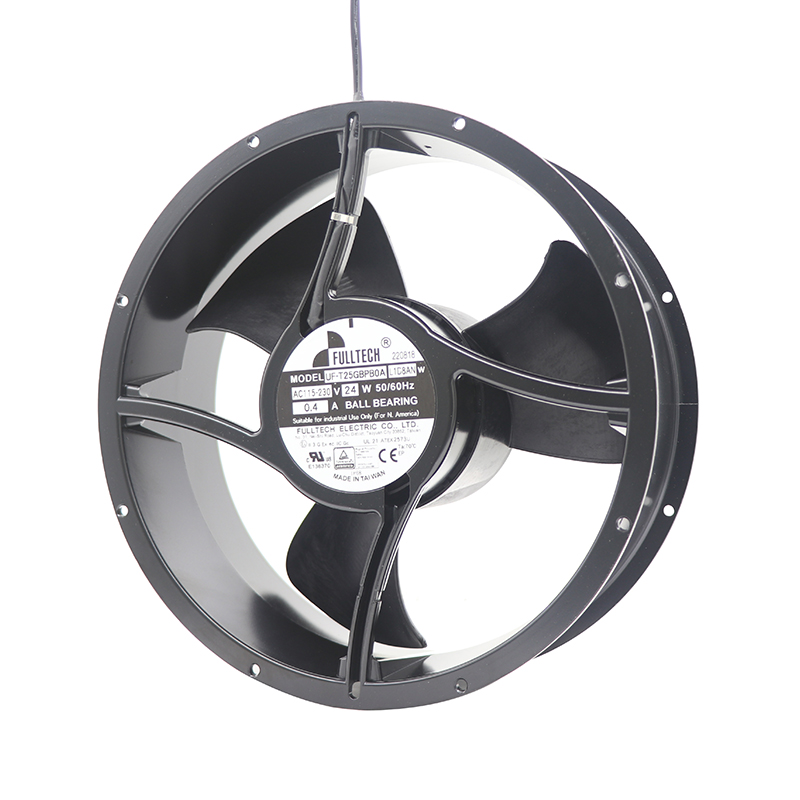

UF-T25GBPB0AL1D8ANW \| Fulltech 115-230VAC 24W EC Axial Fan for HVAC and Outdoor Unit Cooling For airflow design within HVAC, refrigeration, heat exchangers, and outdoor units, Fulltech UF-T25GBPB0AL1D8ANW presents a Ø221 × 89 mm EC axial fan solution operating at 115–230 VAC. Its documented highlights are an EC external-rotor motor, ball bearings, electronic protection, and stepless control. Rated data: 24 W input.	230	φ254*89	-	-	24	-	-
UF-17PC23BTH \| Fulltech 230VAC 29W AC Axial Fan for HVAC and Industrial Equipment Cooling A Ø172 × 51 mm body, 230 VAC rating, and AC axial fan configuration define Fulltech UF-17PC23BTH for cooling in HVAC, refrigeration, heat exchangers, and industrial cooling. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 29 W input, up to 384 m³/h, 3400 rpm, 55 dB.	230	172φ*51	384	-	29	3400	55
UF-200BMB23H2C2A \| Fulltech 230VAC 74W AC Axial Fan for HVAC and Refrigeration Equipment Cooling UF-200BMB23H2C2A is a Ø200 mm AC axial fan rated for 230 VAC and applied in HVAC and industrial cooling. Its welded impeller, external-rotor motor, ball bearings, and motor protection support continuous ventilation. Rated data: 74 W input, up to 1063 m³/h, 3000 rpm, 61 dB. Its stated operating and dimensional data support duty-point review.	230	22522580	1063	-	74	3000	61
UF-92A23BTH \| Fulltech 230VAC 12W AC Axial Fan for Control Cabinet and Power Supply Cooling For industrial cabinets and power supplies, UF-92A23BTH is a 230 VAC AC axial fan in a 92 × 92 × 38 mm package. Terminal connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 12 W input, up to 78 m³/h, 3300 rpm, 38 dB. Its stated mounting and performance data support duty-point review.	230	929238	78	-	12	3300	38
UF-60D11BWH \| Fulltech 115VAC 4W AC Axial Fan for Control Cabinet and Power Supply Cooling UF-60D11BWH addresses industrial cabinets and power supplies as a 115 VAC AC axial fan housed in a 60 × 60 × 30 mm frame. Ball-bearing construction is the central durability detail, paired with lead-wire connection and motor protection. Rated data: 4 W input, up to 17 m³/h, 3000 rpm, 28 dB.	115	606030	17	-	4	3000	28
UF-60D23BWH \| Fulltech 230VAC 5W AC Axial Fan for Control Cabinet and Power Supply Cooling Specified for industrial cabinets and power supplies, UF-60D23BWH pairs a 60 × 60 × 30 mm footprint with 230 VAC AC axial fan operation. Its die-cast aluminum frame is the representative structural feature; ball bearings and lead-wire connection are also documented. Rated data: 5 W input, up to 17 m³/h, 3100 rpm, 28 dB.	230	606030	17	-	5	3100	28
UF-80A12/23BWH \| Fulltech 120/230VAC 12W AC Axial Fan for Control Cabinet and Power Supply Cooling The 80 × 80 × 38 mm UF-80A12/23BWH brings 120/230 VAC AC axial fan ventilation to industrial cabinets and power supplies. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and lead-wire connection. Rated data: 12 W input, up to 51 m³/h, 3000 rpm, 36 dB.	230	808038	51	-	12	3000	36
UF-12A11BTH \| Fulltech 115VAC 12W AC Axial Fan for Control Cabinet and Power Supply Cooling In industrial cabinets and power supplies, UF-12A11BTH supplies airflow through a 120 × 120 × 38 mm, 115 VAC AC axial fan configuration. A die-cast frame and ball bearings define the mechanical design, while terminal connection supports integration. Rated data: 12 W input, up to 180 m³/h, 3100 rpm, 46 dB.	115	12012038	180	-	12	3100	46
UF-92B23BWH \| Fulltech 230VAC 14W AC Axial Fan for Control Cabinet and Power Supply Cooling industrial cabinets and power supplies is the target duty for UF-92B23BWH, a 230 VAC AC axial fan measuring 92 × 92 × 25 mm. Lead-wire connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 14 W input, up to 68 m³/h, 3000 rpm, 36 dB.	230	929225	68	-	14	3000	36
UF-92B23BTH \| Fulltech 230VAC 16W AC Axial Fan for Control Cabinet and Power Supply Cooling Built around 92 × 92 × 25 mm, the UF-92B23BTH uses a 230 VAC AC axial fan arrangement for industrial cabinets and power supplies. Ball-bearing construction is the central durability detail, paired with terminal connection and motor protection. Rated data: 16 W input, up to 68 m³/h, 3000 rpm, 36 dB.	230	929225	68	-	16	3000	36
UF-80B23BTH \| Fulltech 230VAC 14W AC Axial Fan for Control Cabinet and Power Supply Cooling The 230 VAC UF-80B23BTH is a 80 × 80 × 25 mm AC axial fan specified for industrial cabinets and power supplies. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 14 W input, up to 39 m³/h, 3100 rpm, 35 dB. Its stated size and electrical data support installation planning.	230	808025	39	-	14	3100	35
UF-25HC23BTH \| Fulltech 230VAC 125W AC Axial Fan for HVAC and Industrial Equipment Cooling Serving HVAC and industrial cooling, the UF-25HC23BTH combines 230 VAC operation with a Ø254 × 107 mm AC axial fan design. Its documented capacitor-start operation differentiates the design; the fan also uses a die-cast frame and ball bearings. Rated data: 125 W input, up to 1445 m³/h, 2750 rpm, 65 dB.	230	φ254*107	1445	-	125	2750	65
UF-250BMB23H1C2A \| Fulltech 230VAC 158W AC Axial Fan for HVAC and Refrigeration Equipment Cooling With a Ø250 mm outline and 230 VAC electrical rating, Fulltech UF-250BMB23H1C2A is a AC axial fan specified for HVAC, refrigeration, heat exchangers, and industrial cooling. An integrated external-rotor motor, welded impeller, ball bearings, and protection define this version. Rated data: 158 W input, up to 1921 m³/h, 2700 rpm, 70 dB.	230	28028080	1921	-	158	2700	70
UF-18JC23BTHD \| Fulltech 230VAC 72W AC Axial Fan for HVAC and Industrial Equipment Cooling For HVAC and industrial cooling, UF-18JC23BTHD is a 230 VAC AC axial fan in a 180 × 180 × 90 mm package. Ball-bearing construction is the central durability detail, paired with terminal connection and motor protection. Rated data: 72 W input, up to 782 m³/h, 3400 rpm, 59 dB. Its stated operating and dimensional data support system comparison.	230	18018090	782	-	72	3400	59
UF-17PC10BTH \| Fulltech 100VAC 30W AC Axial Fan for HVAC and Industrial Equipment Cooling UF-17PC10BTH addresses HVAC and industrial cooling as a 100 VAC AC axial fan housed in a Ø172 × 51 mm frame. Its die-cast aluminum frame is the representative structural feature; ball bearings and terminal connection are also documented. Rated data: 30 W input, up to 384 m³/h, 2850 rpm, 50 dB.	100	φ172*51	384	-	30	2850	50

显示

1-20

1-20 21-29

共 29 个

1 2

跳转页

关于轴流风机

如何选择合适的轴流风机

在对比轴流风机的型号之前，先列明真实的运行需求：所需风量、系统静压、可用安装空间和现场供电条件。忽略这四项因素中任何一项的选型，通常最终都会以退货或现场改造收场。

电压和控制方式决定入围范围。标准选项包括 12/24/48 V DC 和 115/230 V AC；对于工作点会变化的场合，支持 PWM 或 0-10 V 输入的 EC 风机可实现精准调速，测速信号则能提供许多安全系统所需的反馈。

环境条件比任何目录筛选器都更快地淘汰不合适的型号。检查环境温度范围、防尘防潮所需的 IP 防护等级以及预期使用寿命——在立式安装或高温位置，滚珠轴承机型保持噪音和风量指标稳定的时间远长于含油轴承设计。如果设备要销往受监管市场，应在此阶段确认 UL、CE 和 RoHS 认证，并尽早设定以 dBA 为单位的噪音目标，避免声学问题在安装后才暴露。

收尾阶段要为订单排除风险：核实库存水平，确认生产交期，并索取候选型号的规格书和尺寸图，确保安装孔位和接口在采购前核对无误。把您的工作点提供给我们，我们将验证匹配性该分类现有 29 件产品可随时对比。

轴流风机的典型应用场景与案例

从我们的项目记录看，凡是设备需要持续散热、空气需要持续流动的场合都会用到轴流风机：数据中心与机房、商用制冷、空调通风系统、通信与电池柜、工业机械设备，以及新能源领域的电力电子设备。这些项目的共同点很朴素——风机成本占比很小，却直接决定设备能否正常运行，值得与被保护设备同等的工程重视。

在最近一个改造项目中，客户的散热机组必须在更换磨损风机的同时保持运行。我们找到了安装尺寸完全相同、风量-压力曲线相当的在产替换型号，并确认了测速输出兼容性，整个安装在一个维护窗口内完成。

第二类高频场景来自制冷维修：冷凝器或蒸发器风机损坏，而原装型号交期漫长。不必等待——我们核对轴承类型、IP 防护等级、叶轮直径和转速，立即提供能恢复制冷量的等效型号。这正是我们的现货库存保护冷链运行的常见方式之一。

无论新造设备还是富泰克设备的替换项目，在我们这里都遵循同一路径：您提供所需的风量、压力和尺寸，我们回复入围清单、性能曲线和确定的交货日期。

轴流风机采购常见问题解答

贵司提供怎样的质保和售后支持？

每台机组均享受制造商针对材料和工艺缺陷的质保，索赔全程由我们协助处理，您只需对接一家供应商，无需跨国追查工厂。如在使用中出现故障，请提供序列号、运行工况和照片，我们将按报价约定的方式安排更换或退款。

采购前能提供哪些技术资料？

下单前可按需提供规格书、性能曲线、尺寸图和认证文件（视适用情况提供 UL、CE、RoHS）——我们始终认为，采购订单应建立在经过验证的选型之上，而不是取代选型。对于项目投标，我们还可以提供产品对比表，把候选型号按您关注的参数逐项并列呈现。

轴流风机是否有现货？多久可以发货？

常规系列和主流电压版本通常备有现货，可在几个工作日内发货；特殊或定制版本按订单生产，一般需要额外的生产时间。您只需提供确切型号或所需参数，我们将在一次回复中确认库存、单价和最早发货日期，该分类目前在线展示 29 件产品。
